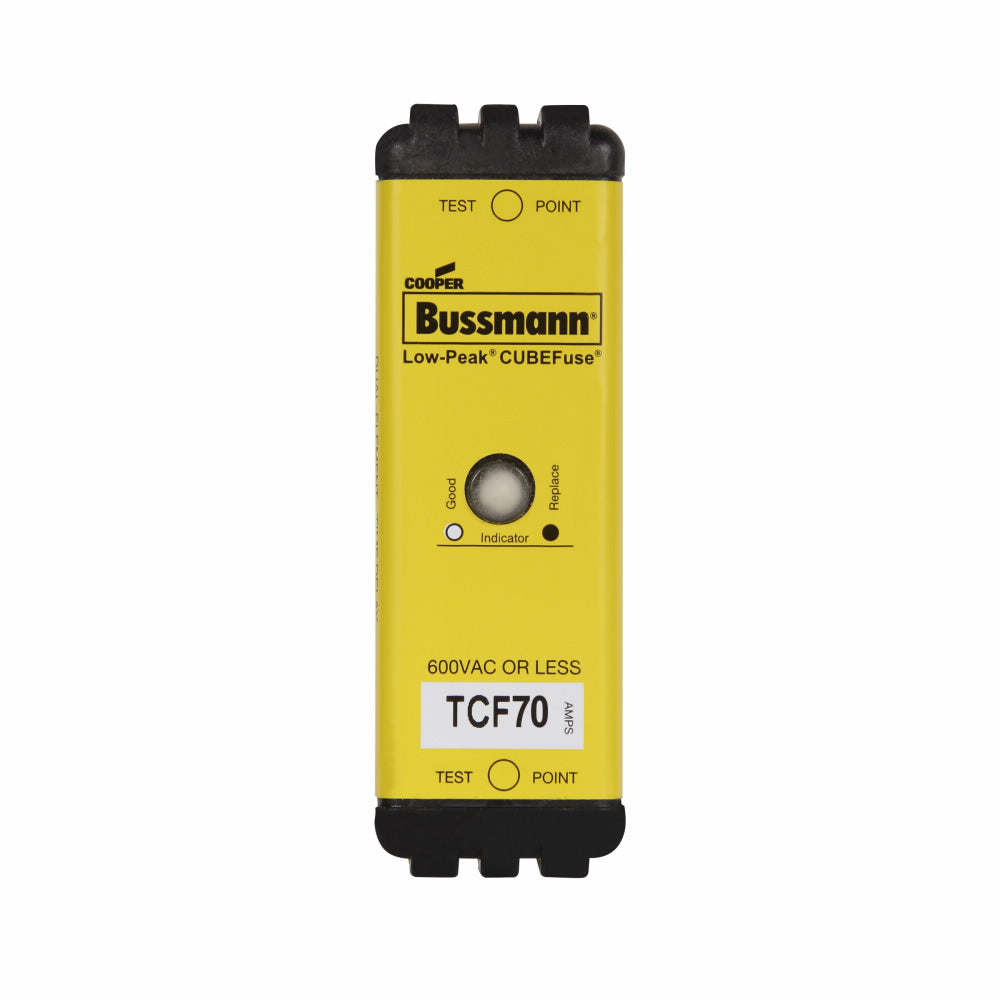

Eaton TCF70 BUS CUBEFUSE 70 AMP

Product Description

The Eaton TCF70 BUS CUBEFUSE is a time delay fuse designed for current limiting applications. This fuse has a rating of seventy amps and operates effectively at six hundred volts AC or three hundred volts DC. It provides reliable protection for various applications including commercial buildings and industrial control systems.

• Current limiting feature reduces let-through currents under fault conditions.
• Easy compatibility with other Bussmann series Low-Peak fuses.
• Finger safe design enhances operational safety.

Product Highlights

This fuse is ideal for use in applications requiring enhanced safety and protection against overloads, making it suitable for machinery disconnects and power distribution systems.

Product Information

Standard Information

• Manufacturer: Eaton
• Product Name: TCF70 BUS CUBEFUSE 70 AMP

Technical Specifications

• Amperage Rating: 70 A
• Voltage Rating: 600 VAC/300 VDC
• Body Size: 3.01 in L x 1 in W x 1.26 in H
• Class: CF
• Element: Dual
• Mounting Type: Chassis/DIN Rail
• Response Time: 10 s at 500%
• Material: Glass Filled Polyethersulfone
• Standards/Approvals: CE Certified, RoHS Compliant, UL Listed
