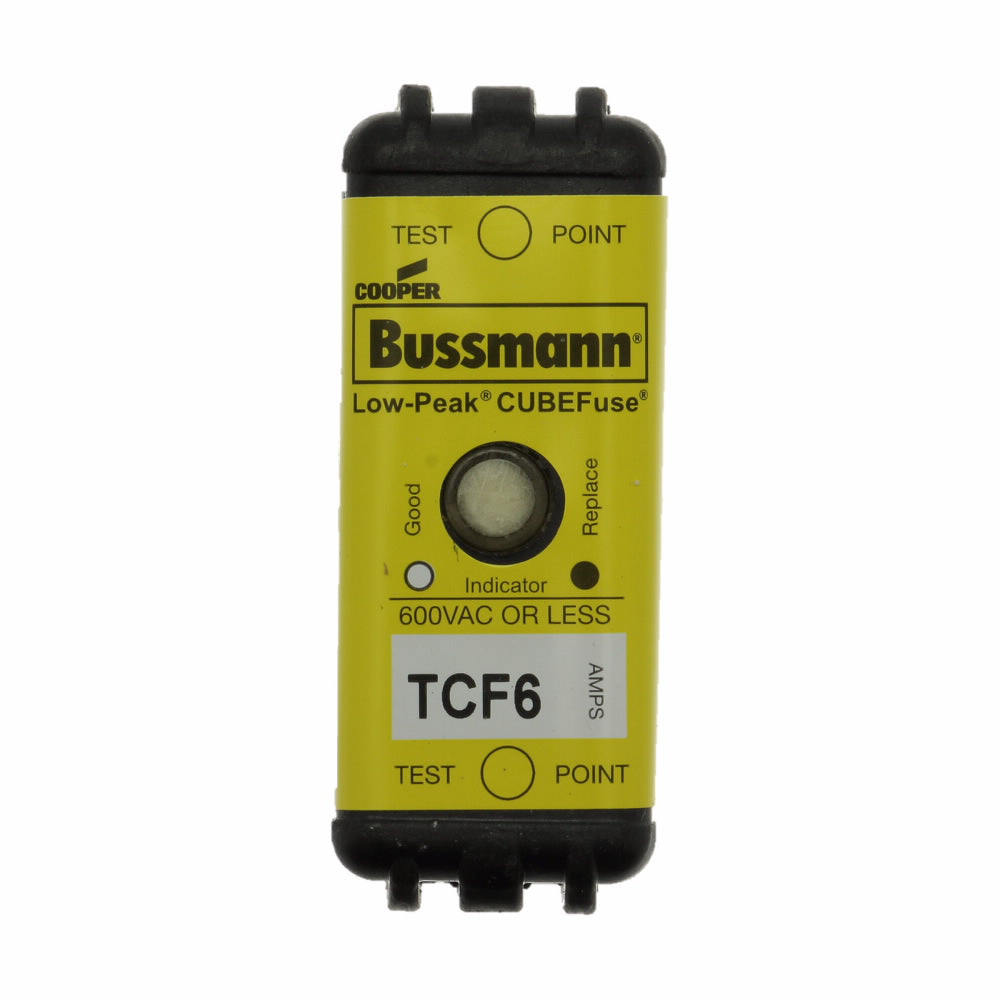

Eaton TCF6 BUS FUSE 600A CUBE 6A

Product Description

The Eaton TCF6 BUS FUSE is a low-peak time delay fuse designed to provide reliable protection in various applications. With a current rating of six amps, it is suitable for use in power distribution, electrical panel boards, and machinery disconnects. This fuse operates at a voltage of six hundred VAC or three hundred VDC and supports a high interrupt rating up to three hundred kA.

• Robust cycling and inrush current withstand
• Finger safe indicating design for safety
• Meets Class CF time delay electrical performance requirements

Product Highlights

Features a small footprint and supports easy installation on DIN rail. It includes blade terminals for secure connections and has a response time of ten seconds at five hundred percent of the rated current. The dual element design enhances its performance in protecting sensitive equipment.

Product Information

Standard Information

• Manufacturer: Eaton
• UPC: 05171261497

Technical Specifications

• Amperage Rating: 6 A
• Voltage Rating: 600 VAC/300 VDC
• Body Size: 3.01 in L x 1 in H
• Body Type: Square Blade
• Material: Glass Filled Polyethersulfone
• Mounting Type: Chassis/DIN Rail
• Response Time: 10 s at 500%
• Standards/Approvals: CE Certified, RoHS Compliant, UL File No. E56412
