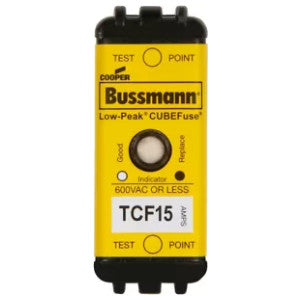

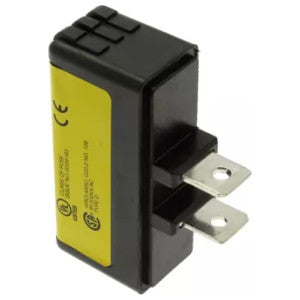

Eaton TCF15 Bussmann Series TCF Fuse 15A

Product Description

The Eaton Bussmann Series TCF Fuse, MPN TCF15, is a Class CF time-delay, dual-element cube fuse. This fuse has a high interrupting capacity, ensuring safety in various electrical applications. It operates at a maximum voltage of six hundred volts AC and three hundred volts DC.

• Time-delay feature
• Indicating fuse design
• Current limiting capability

Product Highlights

This fuse is essential for electrical panelboards, industrial controls, and machinery disconnects. It provides a reliable solution for protecting circuits, enhancing safety in operational environments.

Product Information

Standard Information

• Product Name: Eaton Bussmann Series TCF Fuse
• Catalog Number: TCF15

Technical Specifications

• Amperage Rating: 15 A
• Voltage Rating: 600 Vac, 300 Vdc
• Interrupt Rating: 100 kAIC at 300 Vdc, 300 kAIC at 600 Vac
• Response Time: 10 sec at 500%
• Fuse Type: Class CF Time Delay
• Material: Glass filled PES
• Length: 1.88 in
• Width: 0.75 in
• Height: 1 in
• Operating Temperature: -40 °C to 80 °C
• Certifications: CE Marked, RoHS Compliant, UL Listed, CSA Certified
