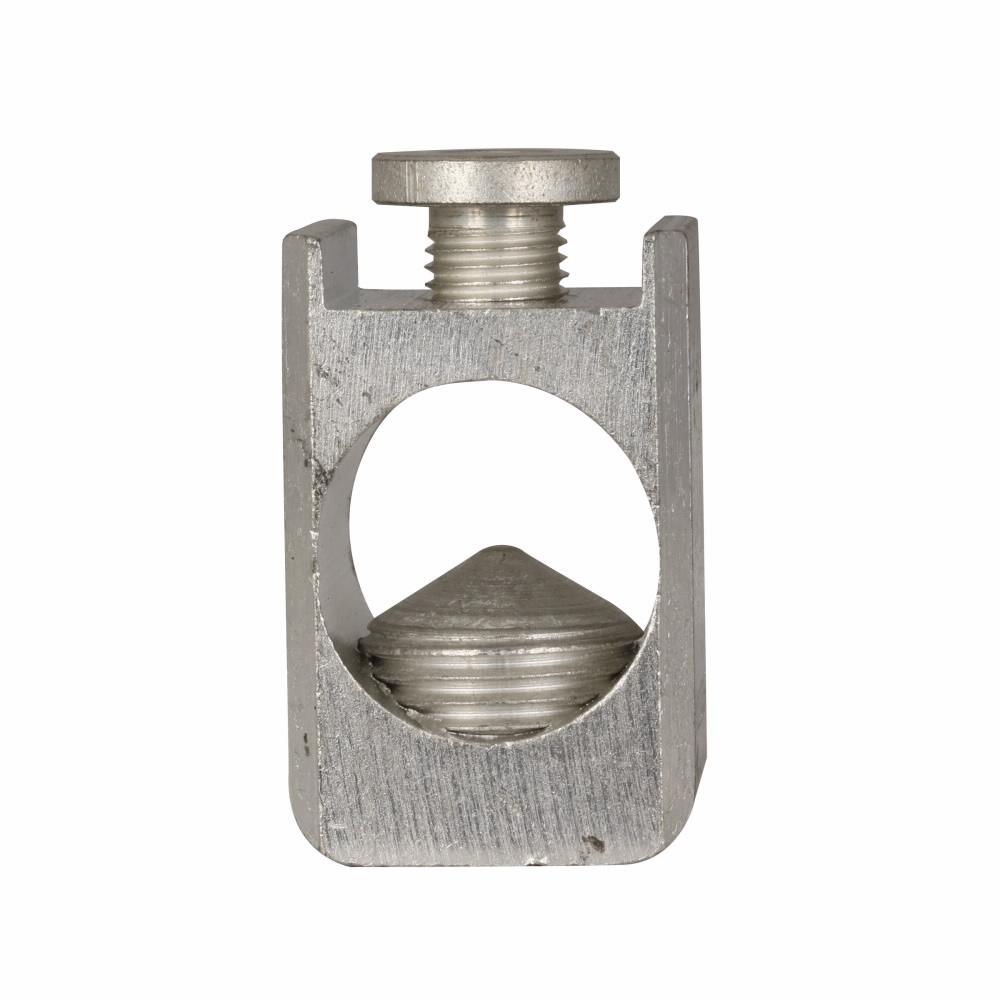

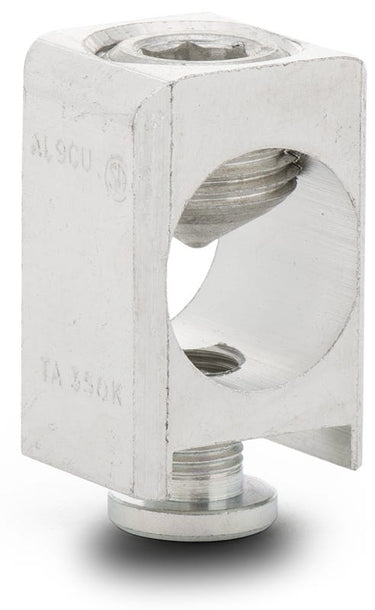

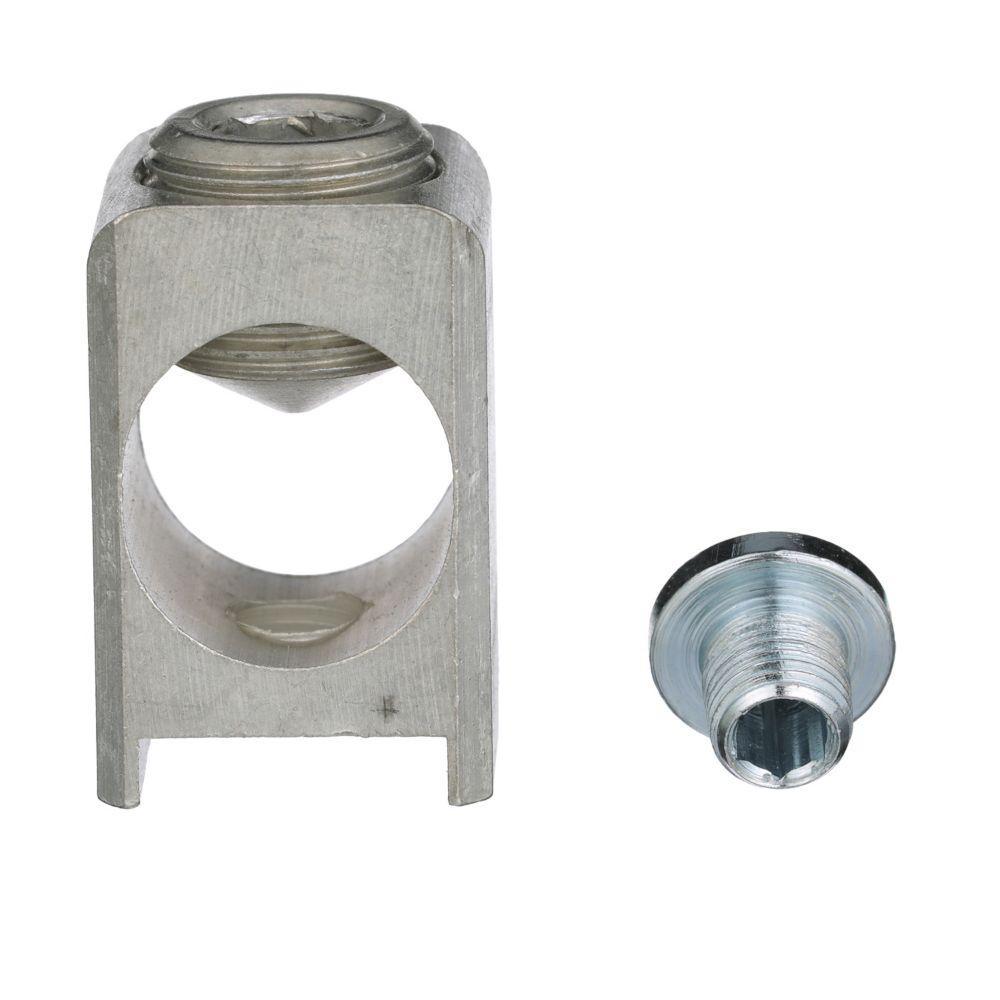

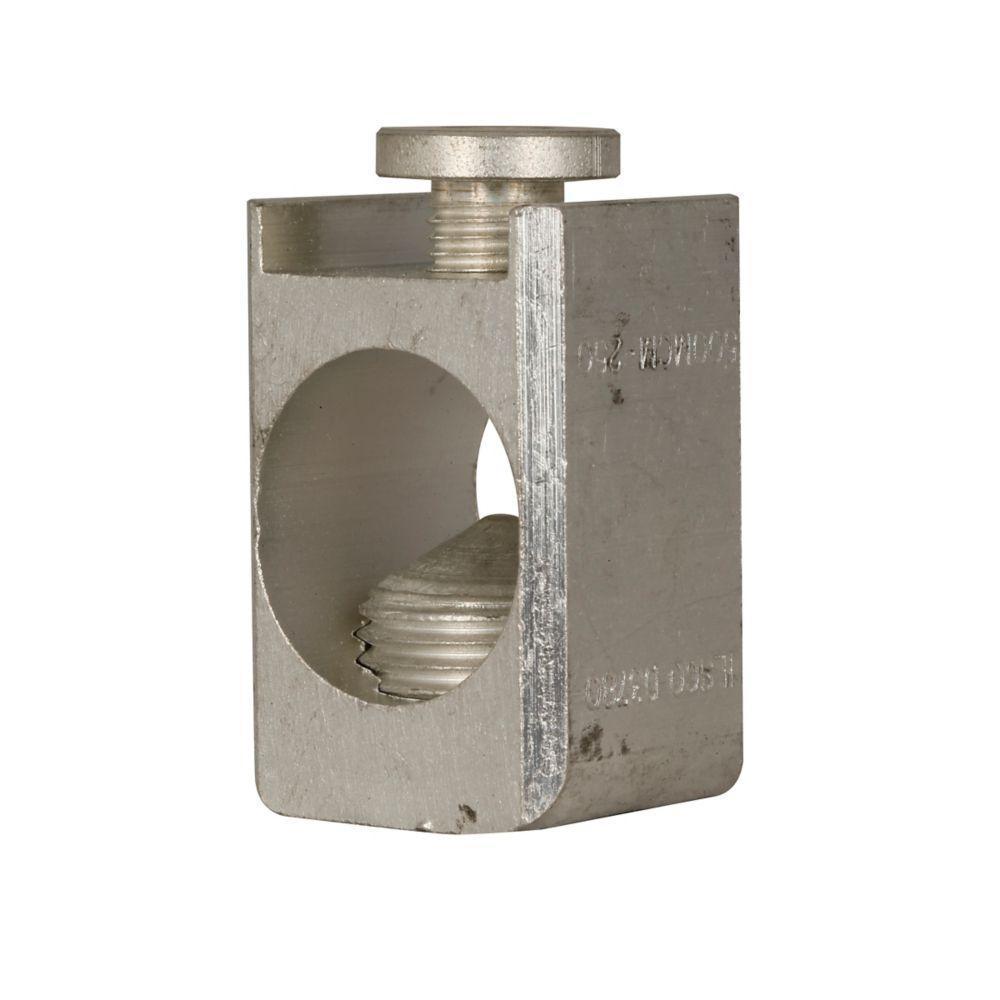

Eaton TA350K Lug Terminal

Product Description

The EATON TA350K is a circuit breaker lug terminal kit. These terminals are used in panelboard, switchboard, motor control center, and busway applications for dependable branch circuit protection. It is suitable for use with KA, JA, HKA, LB, HLB, KG, HKDDC, KD, CKD, HKD, CHKD, KDC, KES frame circuit breakers.

• Line and load side lug terminal connection
• Aluminum construction
• Suitable for C Series 400 A Type KD, HKD and KDC thermal magnetic molded case circuit breakers

Product Highlights

The EATON TA350K lug terminal kit ensures reliable branch circuit protection in various electrical distribution systems.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: TA350K

Technical Specifications

• Type: Pressure Standard
• Material: Aluminum
• Length: 2.2 in
• Width: 1.5 in
• Height: 1.4 in
• Conductor Range: 250 to 500 kcmil
• Suitable For Use With: C Series 400 A Type KD, HKD and KDC Thermal Magnetic Molded Case Circuit Breaker
• Brand: Eaton/Cutler-Hammer
• Series: C
• Amperage: 400
• Voltage: 600VAC
• Approval: UL
• Frame Type: KA, JA, HKA, LB, HLB, KG, HKDDC, KD, CKD, HKD, CHKD, KDC, KES
• Terminal Connection: Line and Load Side Lug
• Wire Gauge: 250KCmil to 500KCmil, Cu/Al
• Mpn: TA350K
• Upc: 786679422465
• Gtin: 786679422465
• Part Number: TA350K
• Manufacturer: Eaton Cutler-Hammer
• Family: Series C
• Category: Lug Terminal Kit
• TA: TA
• Barrels: 1
• MCM Size: 500
• Suit Frame: KA,JA,HKA,LB,HLB,KG,HKDDC,KD,CKD,HKD,CHKD,KDC,KES
