Eaton TA250KB Line and Load Terminal 4 AWG to 350 kcmil

Product Description

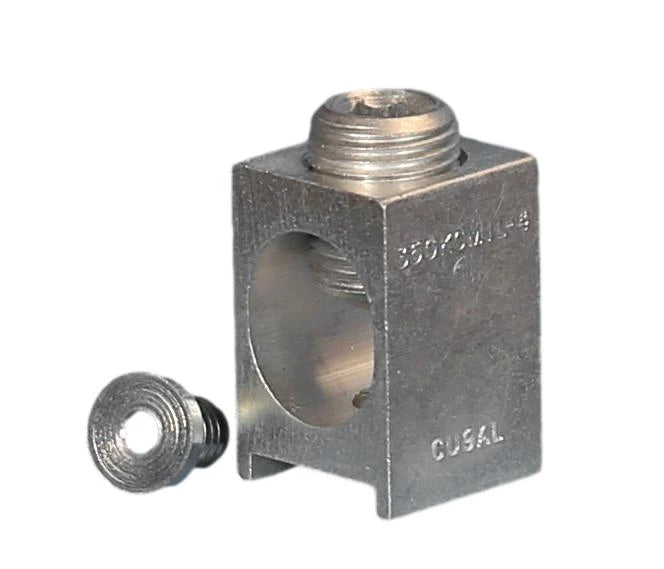

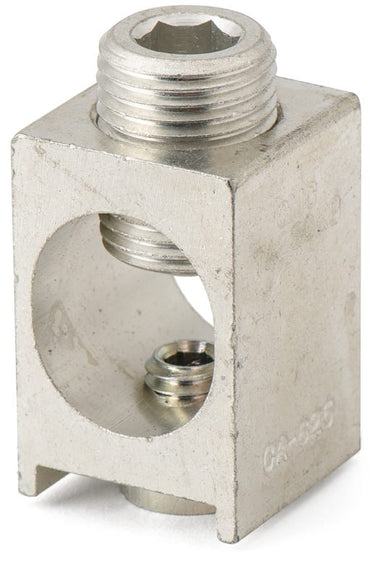

The EATON TA250KB is a line and load terminal designed for use with C Series 250 A Type JD, HJD, and JDC thermal magnetic molded case circuit breakers. It accommodates a conductor range of 4 AWG to 350 kcmil. This terminal offers a reliable connection for your electrical applications.

• Conductor range: 4 AWG to 350 kcmil
• Suitable for use with molded case circuit breakers
• Optional copper pressure terminal

Product Highlights

The EATON TA250KB terminal ensures secure and efficient connectivity for circuit breakers, supporting a wide range of conductor sizes.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: TA250KB
• Country of Origin: USA

Technical Specifications

• Length: 2 in
• Conductor Range: 4 AWG to 350 kcmil
• Width: 1 in
• Material: Copper
• Height: 0.9 in
• Suitable For Use With: Molded Case Circuit Breaker
• Standard & Approvals: UL Listed
• Manufacturer: EATON
• Brand: EATON
• Amperage Rating: 250 A
• Frame size: Frame J-K
• Series: Series C
• Terminals: Line and load
• Wire size: #4 AWG-350 kcmil Cu
• Type: Optional Cu pressure terminals
• Voltage: 600VAC
• Frame Type: J
• Terminal Connection: Line and Load Side Lug
• Wire Gauge: AWG 4 to 350KCmil, Cu
• For Use With: J Frame Molded Case Circuit Breakers
• Accessory Type: Lug
• Breaker Type: J-Frame
• Breaker Maximum Amps: 250A
• Lug Quantity: 1
• Terminal Material: Aluminum
• Conductor Quantity: 1
• Conductor AWG Min: 4
• Conductor AWG Max: 350
• Conductor Material: Copper/Aluminum
