Product Description

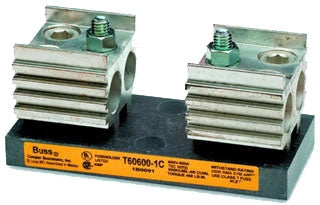

The Eaton T60600-1C Buss Fuseblock is designed for high-performance in electrical systems. This modular open fuse block supports voltage ratings up to 600 VAC/VDC and can handle amperage from 401 to 600 A. It is suitable for use with JJS series cartridge fuses and features a robust phenolic construction.
- Modular design for easy installation
- Handles up to 600 A
- Suitable for industrial control circuits
Product Highlights
This fuse block is ideal for electrical assemblies and panel applications. It ensures reliable performance in demanding environments.
Product Information
Standard Information
-
Manufacturer: Eaton
-
UPC: 05171214947
Technical Specifications
-
Amperage Rating: 401 to 600 A
-
Application: Electrical Assemblies, Panels and EOEMs Applications
-
Class: T
-
Connection Type: Box Lug
-
Dimensions: 6.75 in L x 3 in W x 3.44 in H
-
Fuse Diameter: 1-1/4 in
-
Fuse Length: 3.98 in
-
Manufacturer Part Number: T60600-1C
-
Material: Phenolic
-
Mounting Type: Chassis
-
Number of Poles: 1
-
Series: T600
-
Standards/Approvals: CE Certified, CSA C22.2, RoHS Compliant, UL 512
-
Suitable For Use With: JJS Series Cartridge Fuse
-
Type: Modular Open
-
Voltage Rating: 600 VAC/VDC
