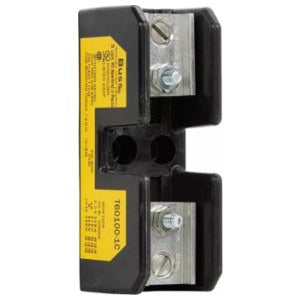

Eaton T60100-1C Bus fuseblock Class T 600V (1 Pole)

Product Description

Eaton T60100-1C is a Class T bus fuseblock designed for single-pole applications, rated for 61 to 100 A and 600 VAC/VDC. The modular open fuse block accepts 2.95 in length by 3/4 in diameter cartridge fuses and provides a 200 kA rms symmetrical interrupt rating. Constructed of glass polyester with a box lug connection for 2/0 AWG conductors, it is intended for control panels, electrical assemblies, and OEM equipment.

• Single-pole Class T modular fuse block rated 61–100 A and 600 VAC/VDC with 200 kA rms symmetrical interrupt rating
• Box lug connection for #2/0 AWG copper or aluminum conductors; chassis-mount design
• Accepts 2.95 in length x 3/4 in diameter fuses; compatible with JJS series cartridge fuses; glass polyester construction

Product Highlights

Class T modular fuse block, 1 pole, 61–100 A, 600 V AC/DC, 200 kA interrupt rating, box lug for #2/0 AWG

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: T60100-1C
• Country of Origin: Mexico
