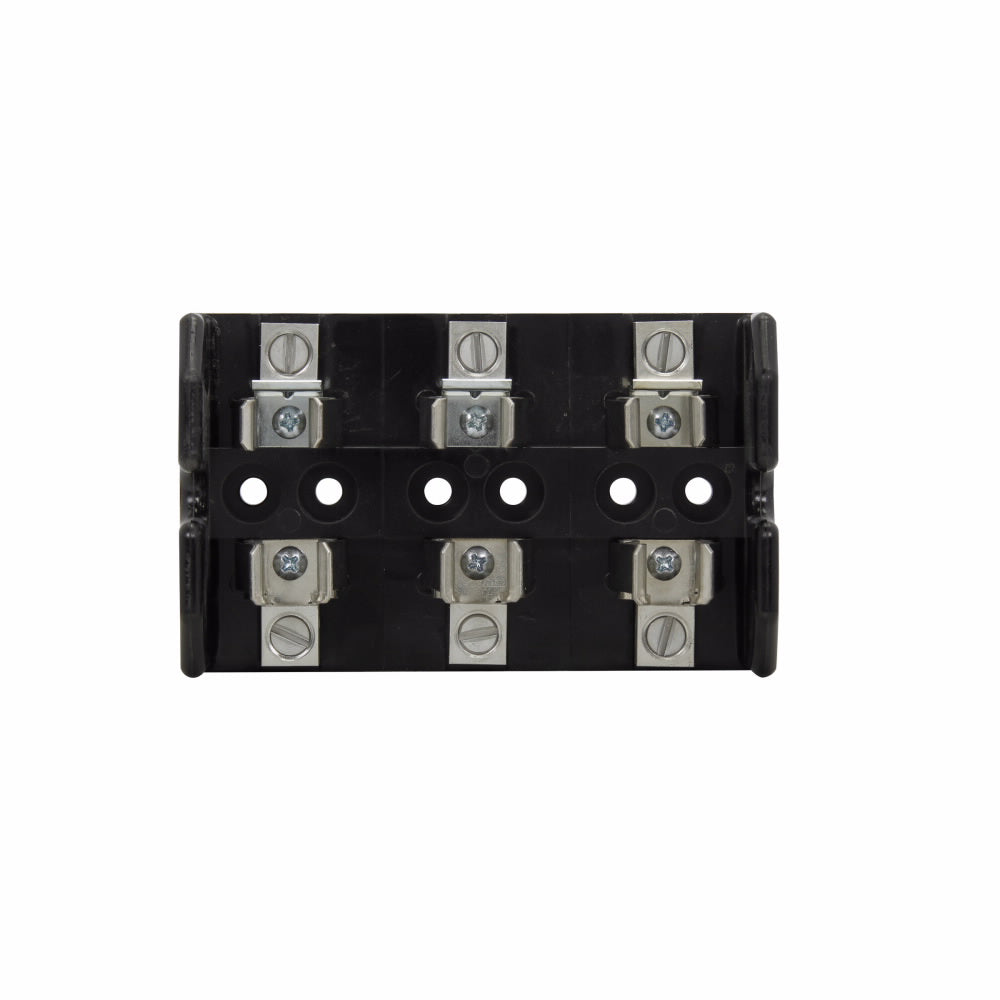

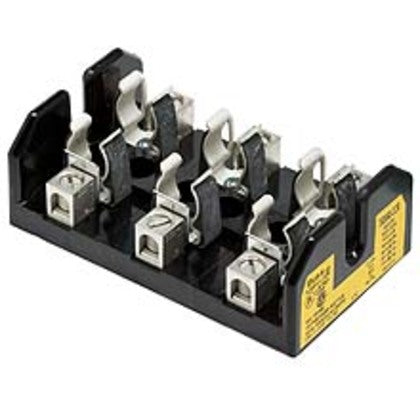

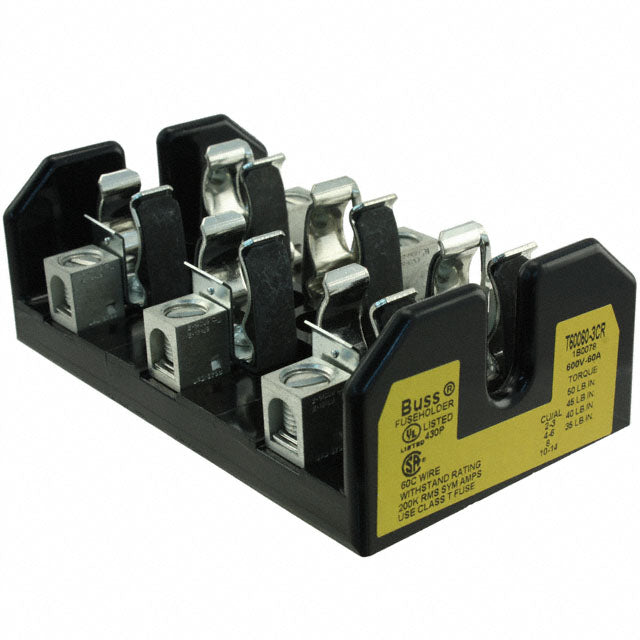

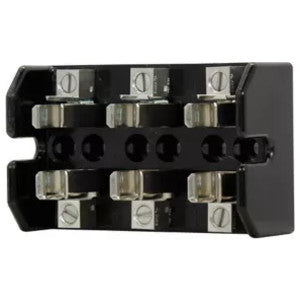

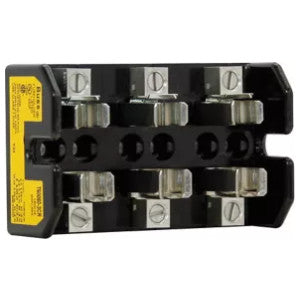

Eaton T60060-3CR Fuse Block 60A (3 Pole)

Product Description

The Eaton T60060-3CR is a Bussmann Class T modular fuse block designed for 600 Vac/Vdc service and rated for 31-60 A in a three-pole configuration. It provides box lug connections for #2 AWG copper or aluminum conductors and a 200 kA interrupting rating, suitable for control systems, industrial panels, and OEM assemblies.

• Three-pole Class T fuse block rated 600 Vac/Vdc and 31-60 A with 200 kAIC interrupt rating
• Box lug termination compatible with #2 AWG Cu/Al conductors; chassis/surface mount options
• Glass polyester construction; accepts Class T cartridge fuses (JJS series compatible); fuse size 0.81 in dia x 1.56 in L

Product Highlights

Class T modular fuse block, 600 Vac/Vdc, 31-60 A, 3 poles, box lug termination, 200 kAIC interrupting rating

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: T60060-3CR
• Country of Origin: Mexico

Technical Specifications

• Brand: EATON
• Manufacturer: EATON
• Manufacturer Part Number: T60060-3CR
• Product Type: Fuse block
• Series: T600
• Voltage Rating: 600 Vac/Vdc
• Current Rating: 31-60 A
• Number of Poles: 3
• Fuse Class: Class T
• Termination Type: Box lug
• Interrupt Rating: 200 kAIC
• Material: Glass polyester
• Conductor Size: #2 AWG Cu/Al
• Accepts Fuse Type: Class T cartridge fuses (JJS series compatible)
• Fuse Diameter: 0.81 in
• Fuse Length: 1.56 in
• Overall Dimensions: 2.94 in L x 4.86 in W x 1.75 in H
• Mounting Type: Chassis mount
• Mounting/Installation: Chassis/surface applications (panel and OEM assemblies)
• Pin Spacing: 1.63 in +/- 0.016 in
• Number of Circuits: 3
• Weight: 0.55 lb
• Standards/Certifications: UL 512; CSA C22.2; CE; RoHS Compliant
• Application: 600 Vac/Vdc control systems and individual control circuits
