Product Description

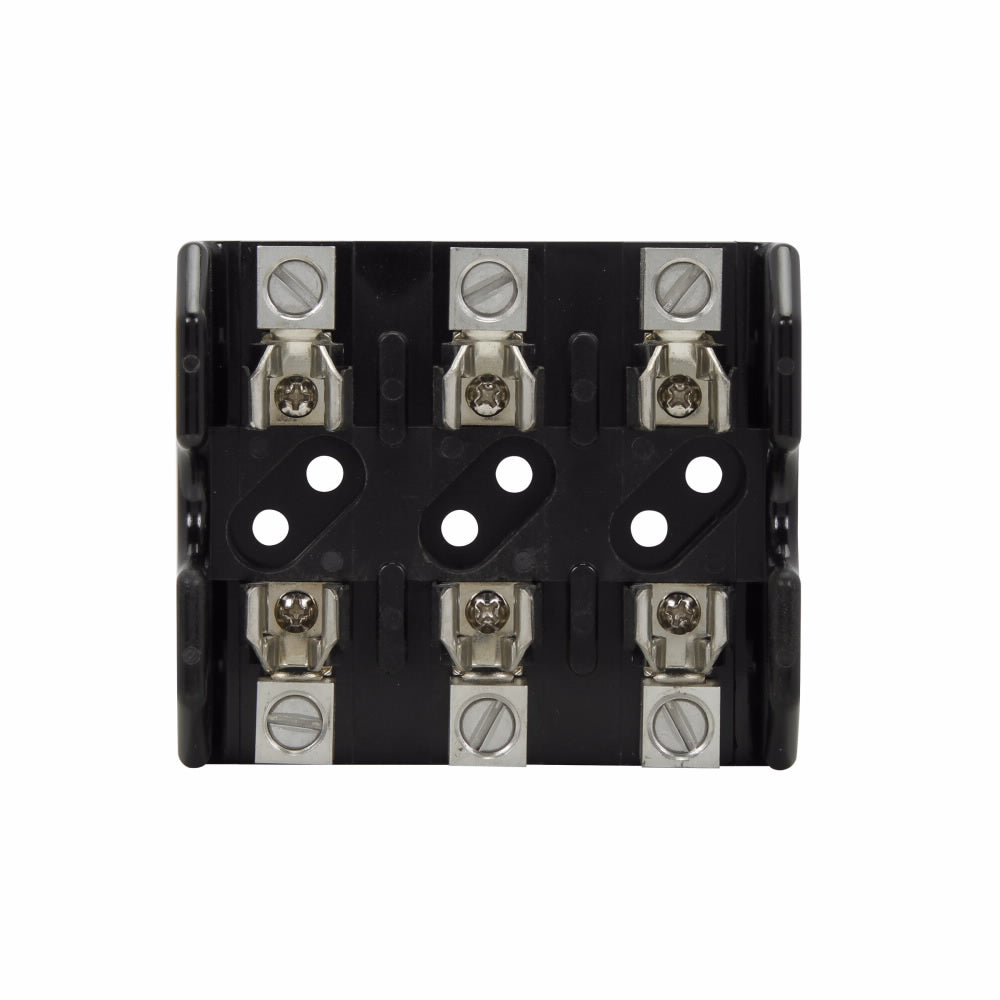

The Eaton T60030-3CR is a bus fuse block designed for use in electrical circuits. This modular open fuse block operates at a voltage of six hundred VAC or VDC and supports an amperage range from zero to thirty amps. It is suited for various applications including control systems and industrial circuits.
- Rated for a maximum voltage of six hundred VAC/VDC.
- Compatible with JJS series cartridge fuses.
- Designed to mount on a chassis with a box lug connection.
Product Highlights
The Eaton T60030-3CR is ideal for those needing a reliable fuse block for electrical assemblies and panels.
Product Information
Standard Information
-
Manufacturer: Eaton
-
Manufacturer Part Number: T60030-3CR
Technical Specifications
-
Amperage Rating: 0 to 30 A
-
Voltage Rating: 600 VAC/VDC
-
Class: T
-
Connection Type: Box Lug
-
Material: Glass Polyester
-
Mounting Type: Chassis
-
Fuse Length: 1-1/2 in
-
Fuse Diameter: 0.56 in
-
Dimensions: 3.19 in L x 3.75 in W x 1.44 in H
-
Number of Poles: 3
-
Standards/Approvals: CE Certified, CSA C22.2, RoHS Compliant, UL 512
