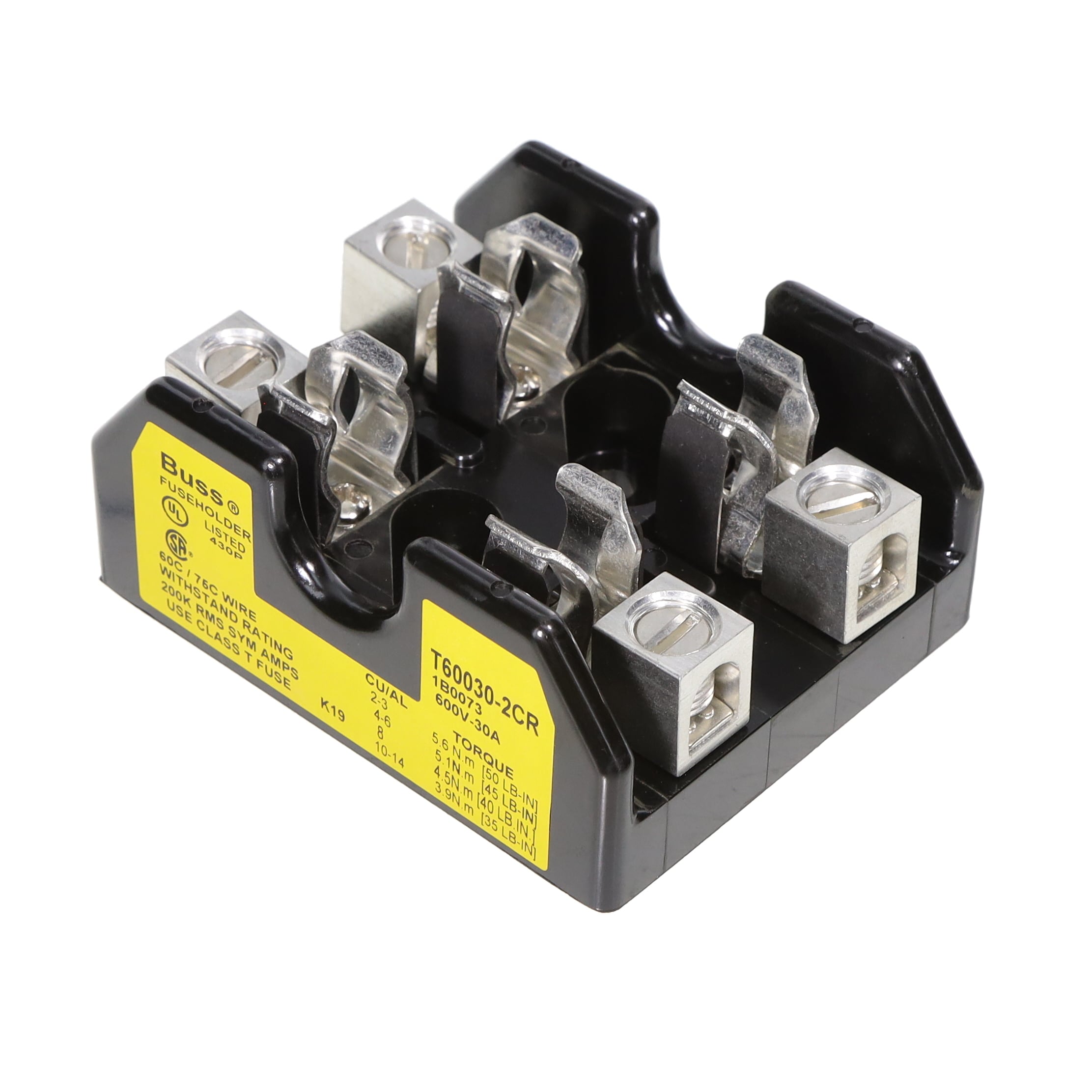

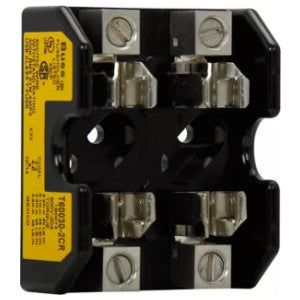

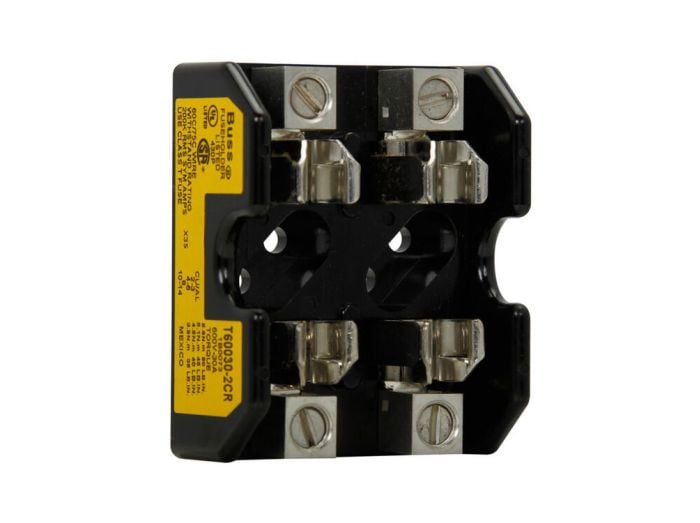

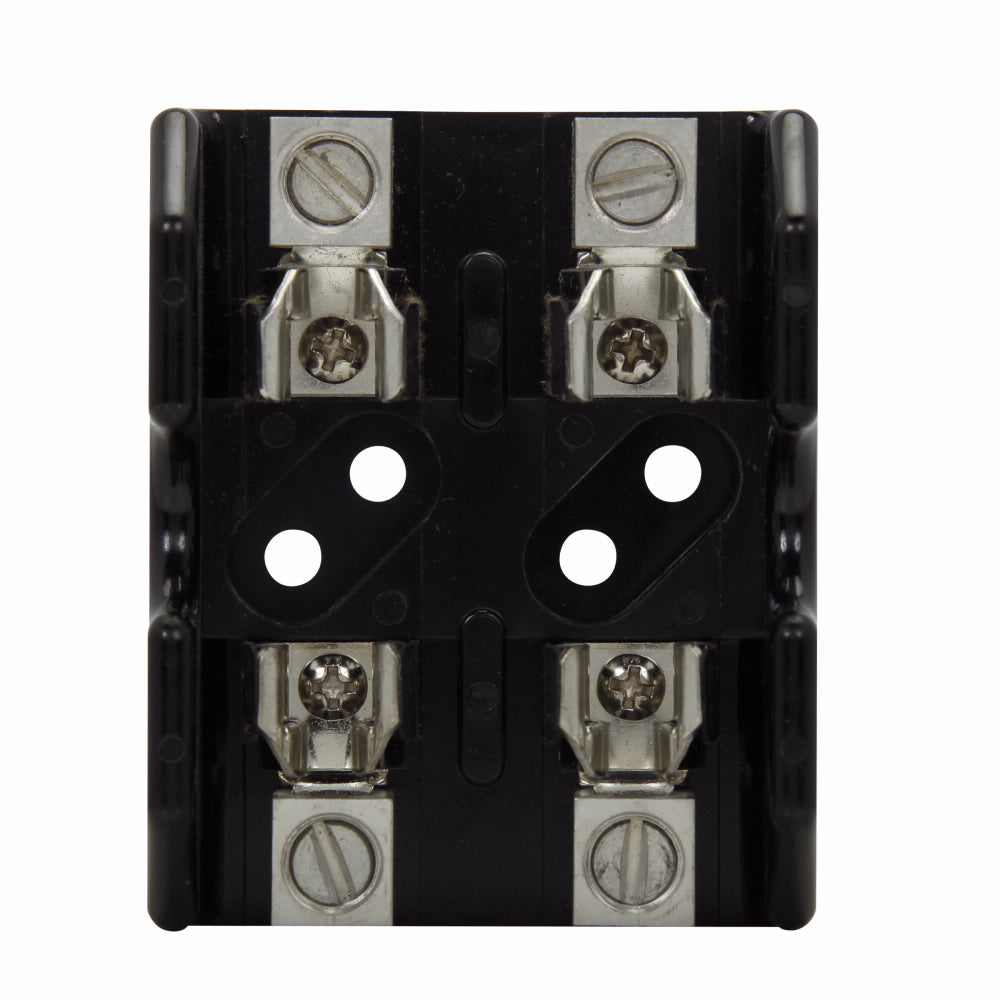

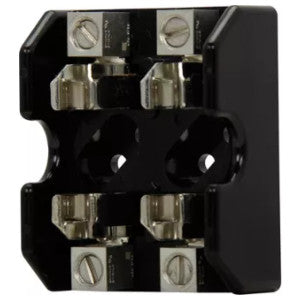

Eaton T60030-2CR Bussmann Class T Modular Fuse Block 30 A 600 V (Two-Pole) T600302CR

Product Description

Eaton T60030-2CR is a Bussmann Class T modular fuse block rated for control systems up to 600 Vac/Vdc. It supports 0–30 A circuits in a two-pole configuration with box lug terminations and a 200 kAIC interrupting rating. The glass polyester housing accepts #2 AWG copper or aluminum conductors and 1.5 in x 0.56 in Class T cartridge fuses (for example JJS). Typical applications include industrial control panels and individual control circuits.

• Rated 0–30 A, 600 Vac/Vdc; two-pole configuration with box lug terminations.
• 200 kAIC interrupting rating; glass polyester construction; special feature: CR.
• Accepts 1.5 in x 0.56 in Class T cartridge fuses (compatible with JJS and other T-series); supports #2 AWG Cu/Al (wire range 14–2 AWG).

Product Highlights

Modular Class T fuse block for 600 V control systems with box lug connections and 200 kAIC interrupting rating; accepts 1.5 in Class T cartridge fuses.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: T60030-2CR
• Country of Origin: China

Technical Specifications

• Brand: EATON
• Manufacturer Part Number: T60030-2CR
• Series: Bussmann Class T (T600)
• Product Name: Modular fuse block (CR)
• Class: T
• Input Voltage: 600 Vac/Vdc
• Current Rating: 0-30 A
• Number of Poles: 2
• Connection Type: Box lug
• Interrupting Rating: 200 kAIC
• Material: Glass polyester
• Wire Size: #2 AWG Cu/Al
• Wire Range: 14–2 AWG
• Mounting Type: Chassis mount
• Fuse Type: Class T cartridge fuse
• Fuse Size: 1.50 in length x 0.56 in diameter (approx. 38.1 mm x 14.3 mm)
• Compatible Fuse Series: JJS; compatible with other T-series fuses (A6T, JLLS, LPT) - (compatibility listed by manufacturer)
• Dimensions: 3.19 in L x 2.59 in W x 1.44 in H
• Weight: 0.325 lb
• Standards/Certifications: UL 512, CSA C22.2, CE, RoHS Compliant
• Product Type: Modular open fuse block
• Design: Open, non-indicating, non-rejection
• Special Features: CR
• Country of Origin: China
