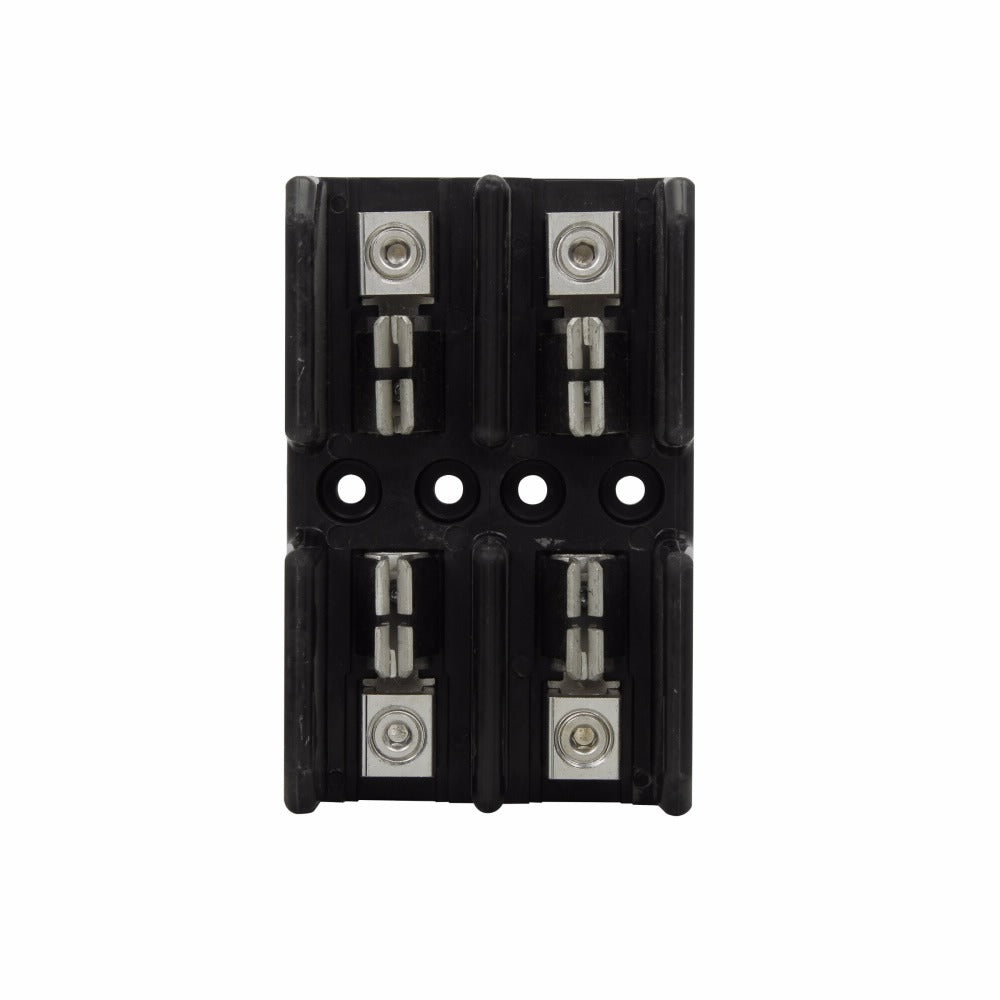

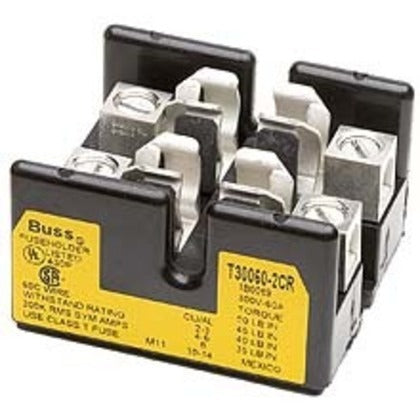

Eaton T30100-2CR Bus Fuseblock Class T 61-100 A (2-Pole)

Product Description

Eaton T30100-2CR is a Class T bus fuseblock rated 61 to 100 A and 300 VAC/VDC for individual control circuits. The two-pole, modular open fuse block uses box lug connections, accepts 1/0 AWG copper or aluminum conductors, and mounts to chassis; it accommodates JJN series cartridge fuses. Constructed of glass polyester, the block measures 4.78 in x 3.09 in x 2.06 in and provides a 200 kA rms symmetrical interrupt rating.

• Rated 61-100 A and 300 VAC/VDC with 200 kA rms symmetrical interrupt rating
• Two-pole modular open design with box lug termination; accepts 1/0 AWG Cu/Al
• Chassis-mount construction of glass polyester; compatible with JJN series cartridge fuses

Product Highlights

Class T modular fuse block, 2-pole, 61-100 A, 300 VAC/VDC, box lug, 1/0 AWG, chassis mount, 200 kA interrupt rating

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: T30100-2CR
