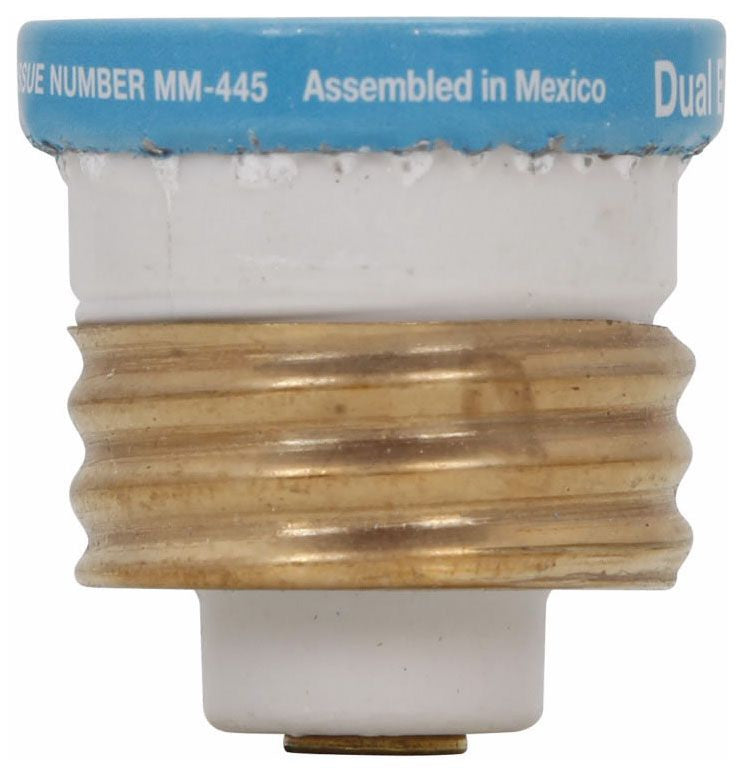

Eaton T-6-1/4 T Series Fusetron 6-1/4 A 125 VAC (Edison Base)

Product Description

Eaton T-6-1/4 is a Bussmann T Series heavy-duty time-delay plug fuse rated 6-1/4 A at 125 VAC. It uses dual-element construction with an indicating feature and non-rejection design in a round plastic body with a stud terminal and threaded mounting, and a 10 kA interrupt rating. The fuse is intended for small motor overload protection and motor-start applications such as air conditioners, pumps, blower motors, and freezers.

• Dual-element, heavy-duty time-delay design for motor inrush protection; rated 6-1/4 A, 125 VAC, 10 kA interrupt.
• Indicating visual feature with non-rejection design; round plastic body with stud terminal and threaded mounting (Edison base).
• Approvals include UL 248-11, CSA, and CE; intended for box cover units and small motor overload protection.

Product Highlights

Dual-element time-delay plug fuse; 6-1/4 A at 125 VAC with 10 kA interrupt; threaded Edison base, indicating and non-rejection design for motor-start protection.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: T-6-1/4
• Country of Origin: Mexico

Technical Specifications

• Brand: Eaton
• Manufacturer Part Number: T-6-1/4
• Series: T Series
• Product Type: Plug fuse
• Type: Heavy Duty Time Delay
• Element: Dual element
• Current Rating: 6-1/4 A
• Voltage Rating: 125 VAC
• Interrupt Rating: 10 kA
• Body Material: Plastic
• Body Type: Round
• Mounting Type: Threaded
• Terminal Type: Stud
• Base Type: Edison
• Indicating: Indicating (visual)
• Rejection: Non-Rejection
• Application: Box cover units and small motor overload protection; motor-start applications (air conditioners, pumps, blower motors, freezers)
• Standards/Approvals: UL 248-11 | JFHR E56412 | JEFV E12112 | CSA Class 1423-01 53787 | CE Certified
• Country Of Origin: Mexico
• Thread Material: Brass
• UPC: 051712210645
