Eaton T-5 Bussmann Series Type T plug fuse 5 A 125 Vac (Edison base, threaded)

Product Description

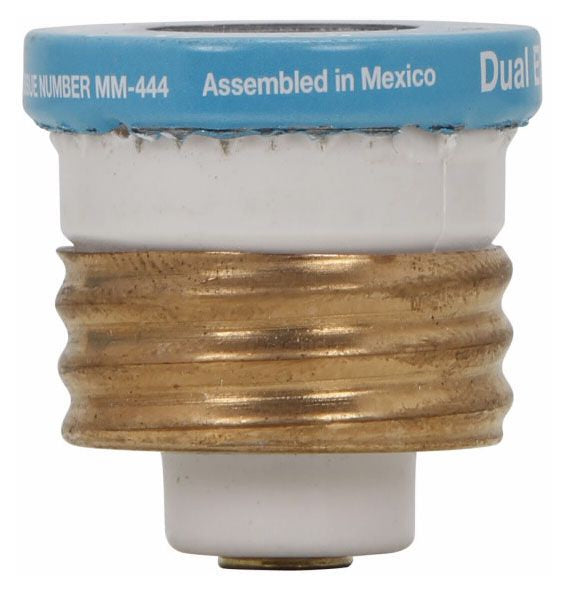

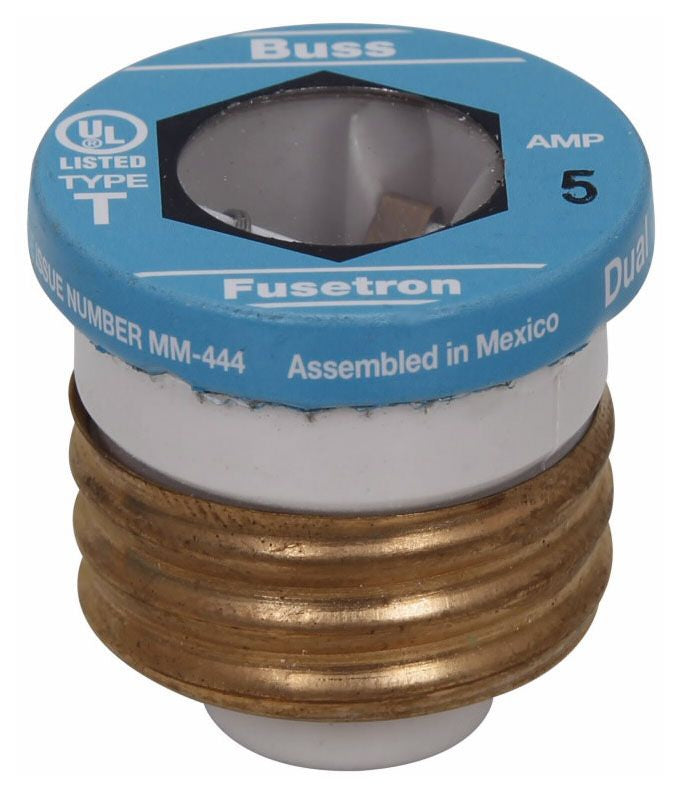

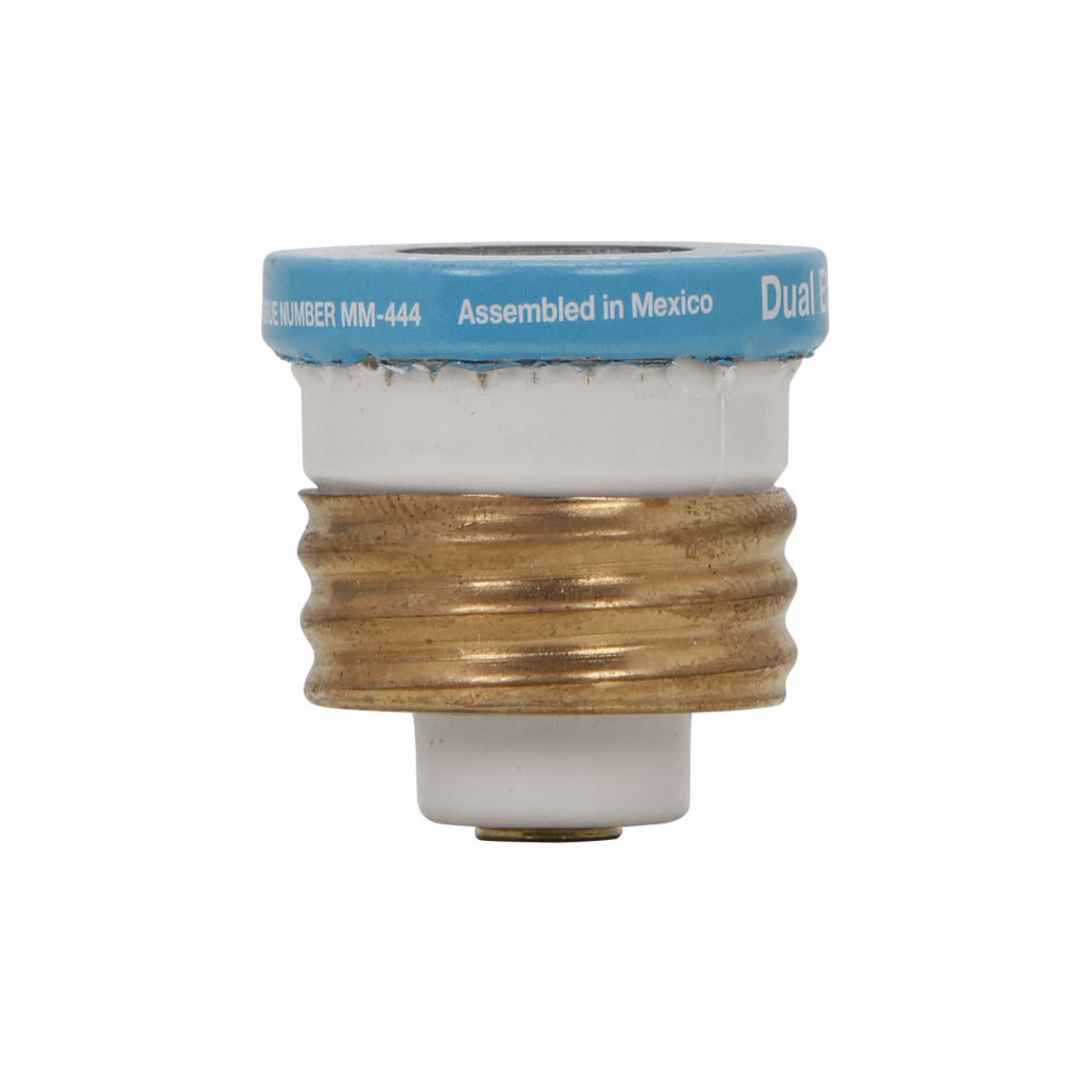

Eaton T-5 is a Bussmann Series Type T plug fuse rated 5 A at 125 Vac. It uses a dual-element time-delay design for heavy-duty overcurrent protection with a 10 kAIC (RMS symmetrical) interrupt rating and threaded Edison base mounting. The fuse features a plastic body with brass thread and is intended for box cover units and plug-in fuse holders to protect small motor circuits and frequently cycling loads.

• Dual-element time-delay (slow-blow) construction for motor and intermittent-load protection
• Rated 5 A, 125 Vac with 10 kAIC (RMS symmetrical) interrupting capability
• Threaded Edison base plug fuse with plastic body and brass thread; stud terminal

Product Highlights

Dual-element time-delay 5 A, 125 Vac plug fuse with 10 kAIC interrupt rating and threaded Edison base for box cover and plug-in fuse holders.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: T-5
• Country of Origin: Mexico

Technical Specifications

• Brand: Eaton
• Manufacturer Part Number: T-5
• Series: Bussmann Type T
• Product Type: Plug fuse
• Element Type: Dual element (time delay)
• Current Rating: 5 A
• Voltage Rating: 125 Vac
• Interrupting Rating: 10 kAIC (RMS symmetrical)
• Short Circuit Rating: 10 kA
• Mounting Type: Threaded
• Base Type: Edison
• Body Material: Plastic
• Thread Material: Brass
• Terminal Type: Stud
• Body Dimensions: 1.16 in L x 0.72 in W x 1.88 in H
• Approvals/Certifications: UL 248-11; CSA 1423-01; CE
• Application: Box cover units and plug-in fuse holders for small motor overload protection
• Country of Origin: Mexico
• UPC: 051712210508
