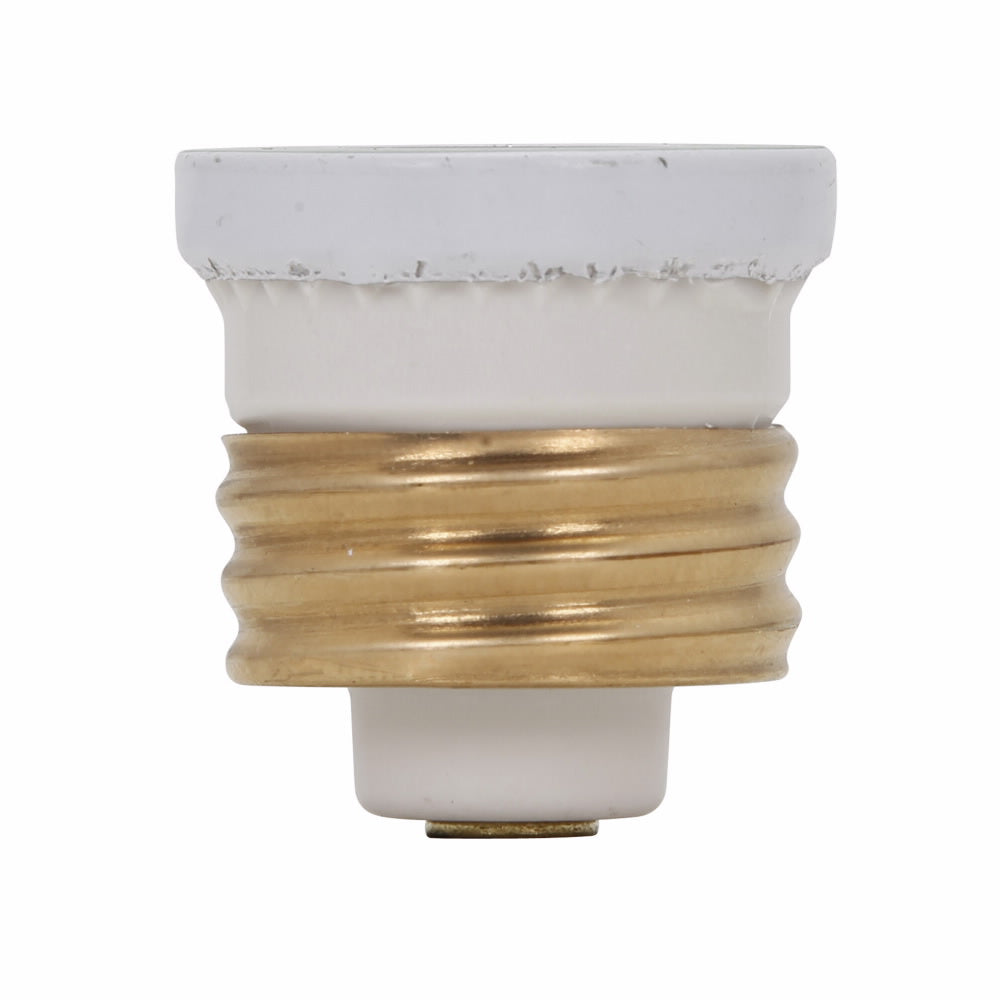

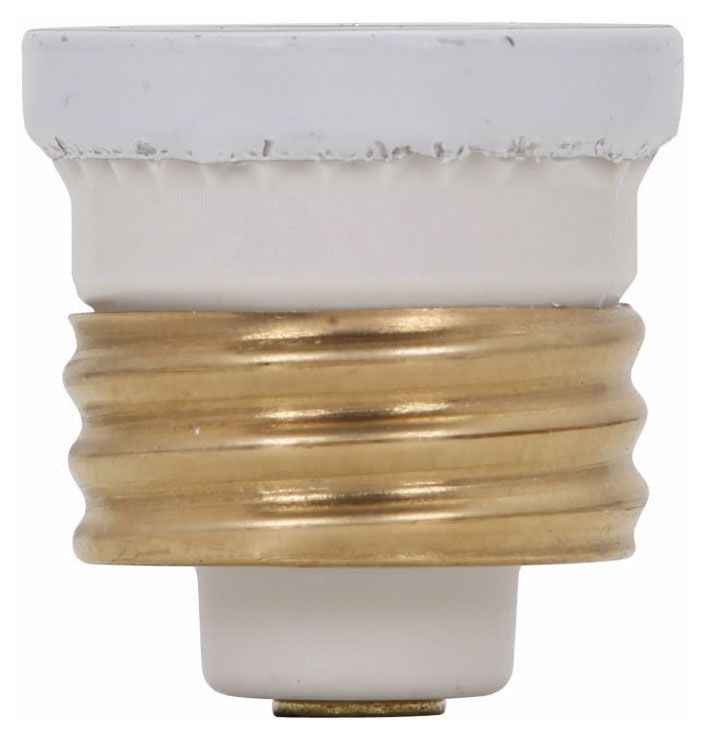

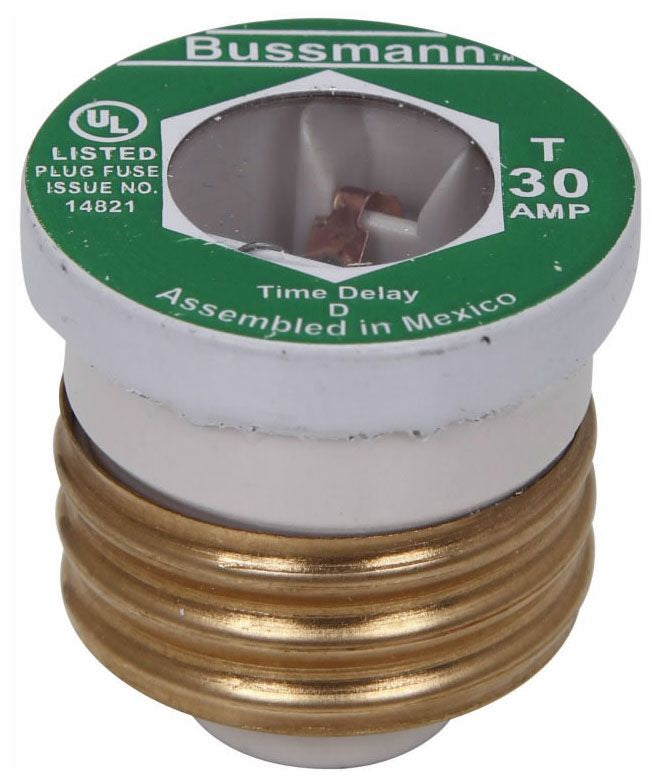

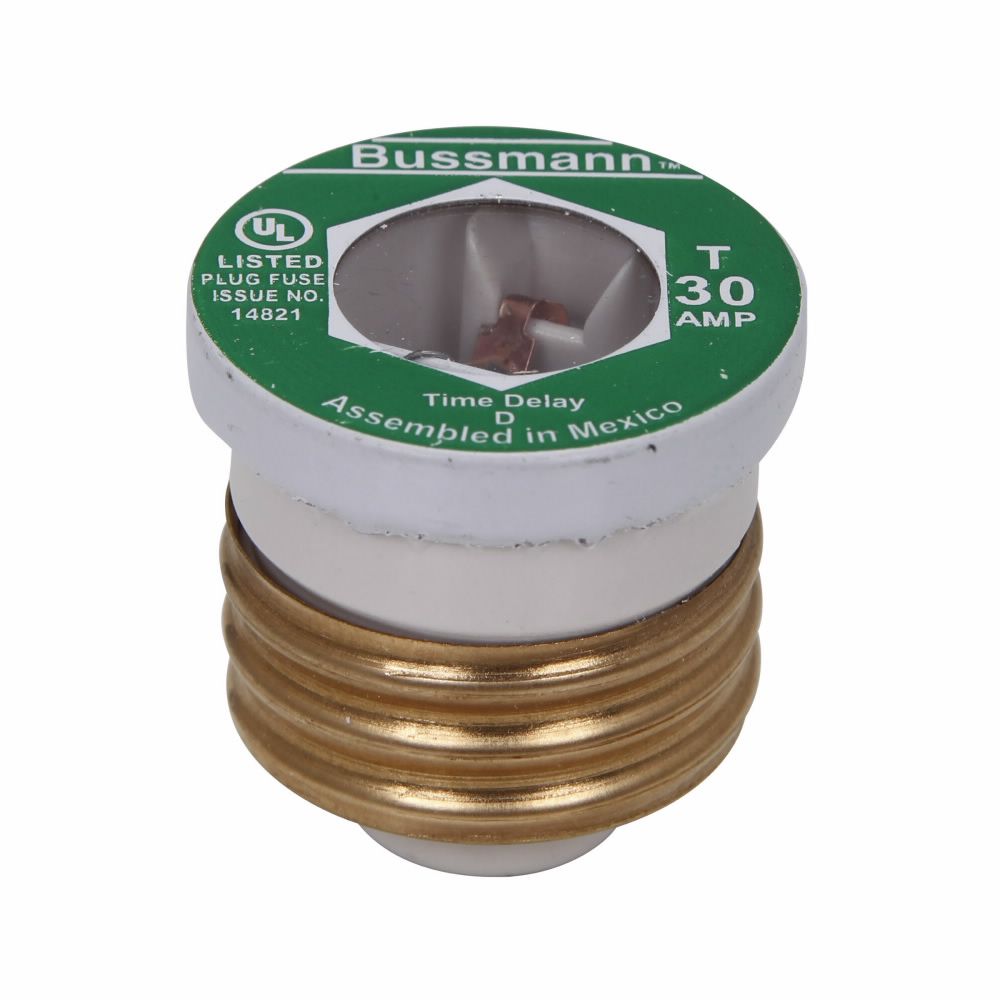

Eaton T-30 Edison Plug Fuse 30 A 125 VAC (Each)

Product Description

The Eaton T-30 is a Type T heavy-duty time-delay Edison plug fuse rated 30 A at 125 VAC with a 10 kA interrupt rating. It uses a dual-element, spring-loaded design with a stud terminal and threaded Edison mount in a plastic body to provide short-circuit and overload protection. Typical applications include residential and industrial branch circuits and small motor protection for devices such as furnace blowers, pumps, and power tools.

• Dual-element, time-delay construction for motor inrush tolerance and overload protection
• Rated 30 A, 125 VAC with 10 kA interrupt/short-circuit rating; Edison threaded stud mount
• Plastic body with brass threads and Edison base for use in box cover units and fuse holders

Product Highlights

Type T time-delay Edison plug fuse; 30 A, 125 VAC; 10 kA interrupt rating; threaded Edison stud mount.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: T-30
• Country of Origin: Mexico

Technical Specifications

• Brand: EATON
• Manufacturer Part Number: T-30
• Series: T Series
• Type: Type T heavy duty time delay
• Fuse Type: Edison plug (screw-in) plug fuse
• Element: Dual element (time delay)
• Amperage Rating: 30 A
• Voltage Rating: 125 VAC
• Interrupt Rating: 10 kA
• Short Circuit Rating: 10 kA
• Mounting Type: Threaded Edison stud mount
• Terminal Type: Stud
• Base Type: Edison base
• Body Material: Plastic
• Thread Material: Brass
• Application: Residential and industrial branch circuit protection; small motor overload protection (box cover units)
• Standards/Approvals: UL 248-11; CSA; CE
• Dimensions: 1.17 in x 1.17 in x 1.21 in
• Country of Origin: Mexico
• UPC: 051712101240
• Packaging: Each; also available in cartons of 4
