Eaton T-3-2/10 Type T Plug Fuse 3.2 A (Edison Base)

Product Description

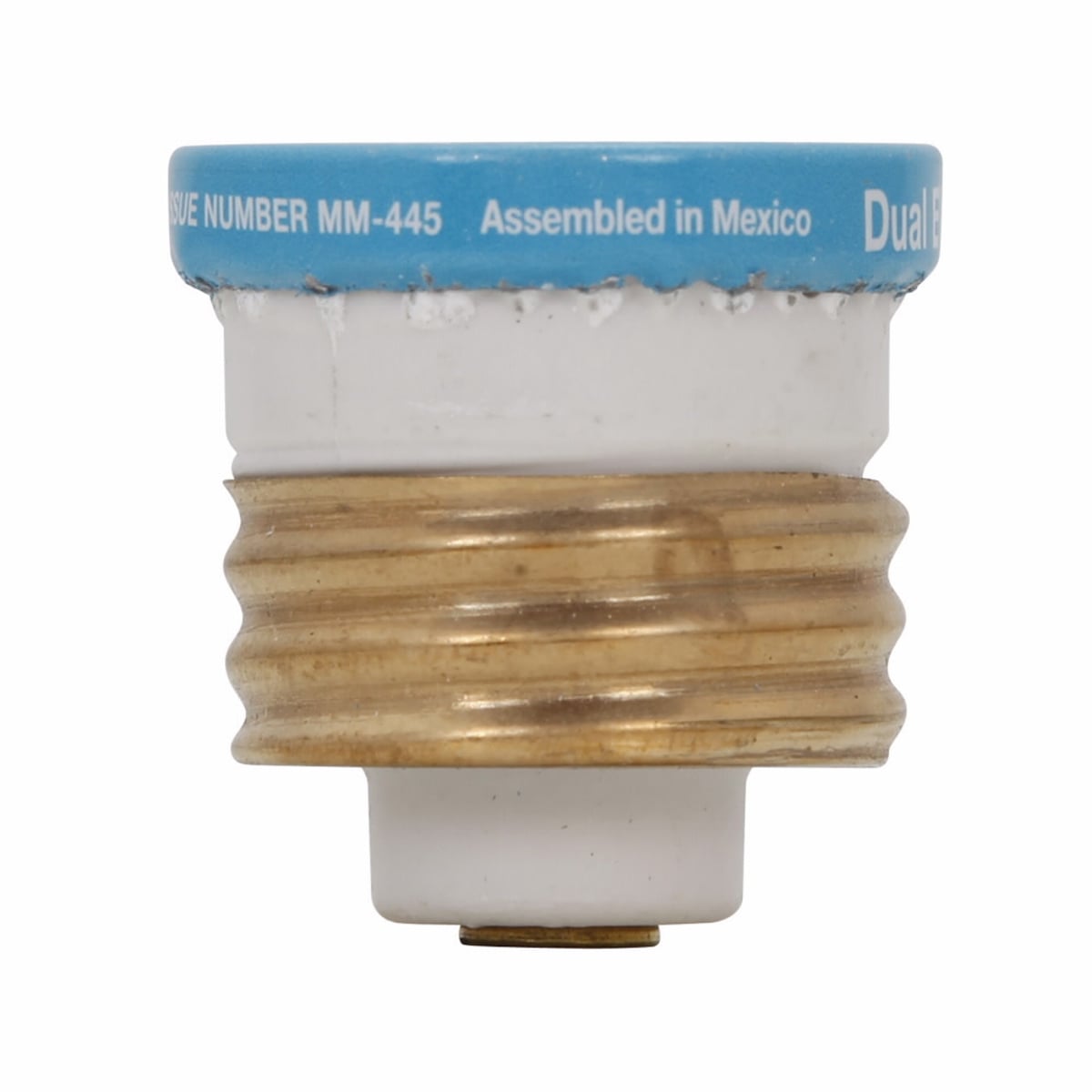

The Eaton T-3-2/10 is a Bussmann Series Type T time-delay plug fuse rated 3.2 A (3-2/10 A) at 125 Vac. It features a dual-element design for time-delay protection and a 10 kAIC interrupt rating for short-circuit conditions. The threaded Edison-base plug fuse has a plastic body with brass threads and is intended for motor and small-load protection.

• Time-delay dual-element construction for motor starting and surge tolerance; rated 3.2 A at 125 Vac
• 10 kAIC interrupt rating (RMS symmetrical) and heavy-duty build for short-circuit and overload protection
• Threaded Edison-base (plug) with plastic body and brass threads; stud terminal and threaded mount

Product Highlights

Time-delay, dual-element plug fuse; 3.2 A (3-2/10 A), 125 Vac; 10 kAIC interrupt rating; threaded Edison base with plastic body and brass threads.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: T-3-2/10
• Country of Origin: Mexico

Technical Specifications

• Brand: EATON
• MPN: T-3-2/10
• Current Rating: 3.2 A (3-2/10 A)
• Voltage Rating: 125 Vac
• Interrupt Rating: 10 kAIC (RMS symmetrical)
• Short Circuit Rating: 10 kA
• Fuse Type: Type T plug fuse
• Time Delay: Yes (time delay / slow-blow)
• Duty: Heavy duty
• Mounting Type: Threaded mount (Edison base plug)
• Element: Dual element
• Body Material: Plastic
• Thread Material: Brass
• Base Type: Edison base
• Terminal Type: Stud terminal
• Indicating: Non-indicating
• Certifications: CE; CSA (CSA 1423-01; CSA File No. 53787); UL (UL 248-11; UL File No. E56412; UL Guide JFHR)
• Application: Motor circuit protection; small motor loads such as air conditioners, furnace blower motors, swimming pool pumps; box cover unit installations
• Shape: Plug fuse body (cylindrical / tapered plug style)
• Country of Origin: MX (Mexico)
• UPC: 51712210324
