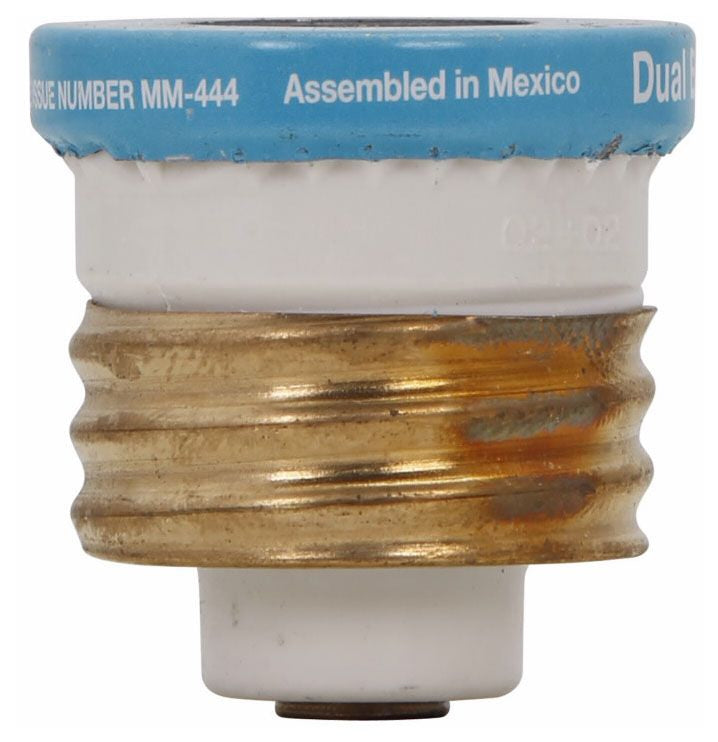

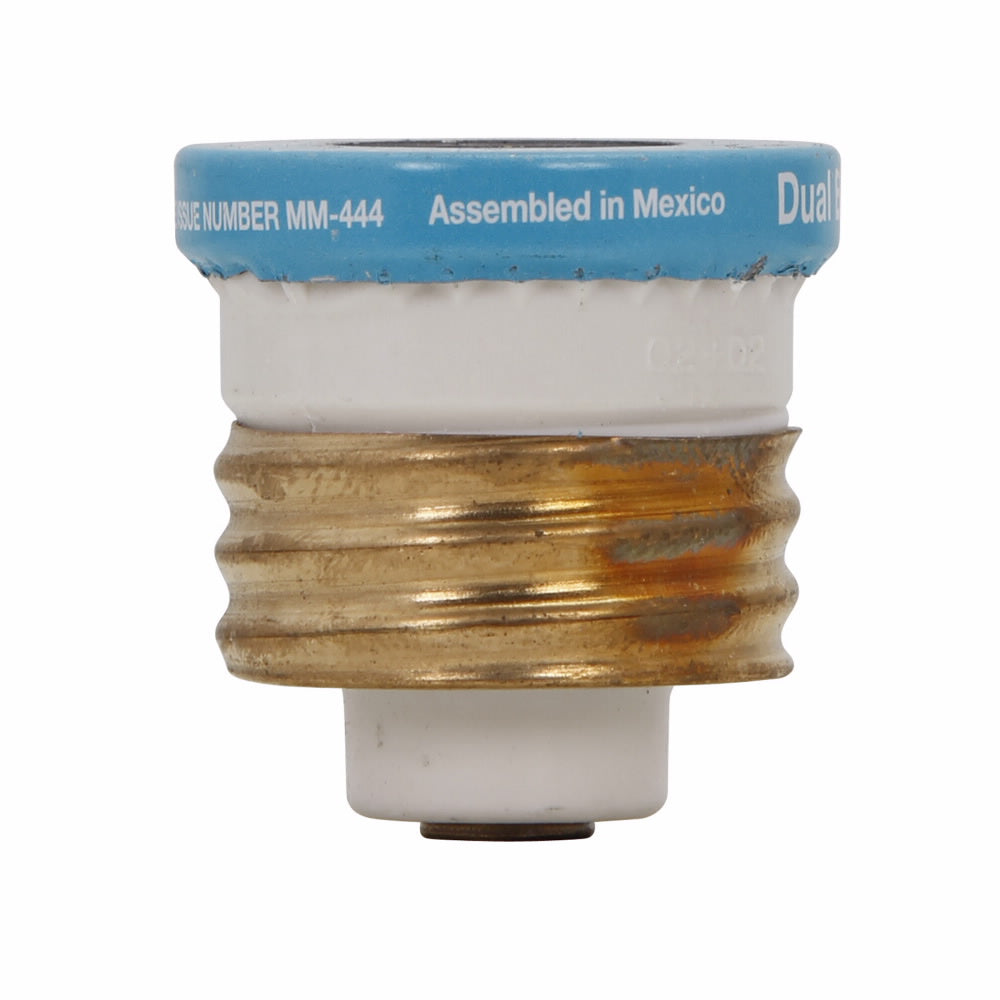

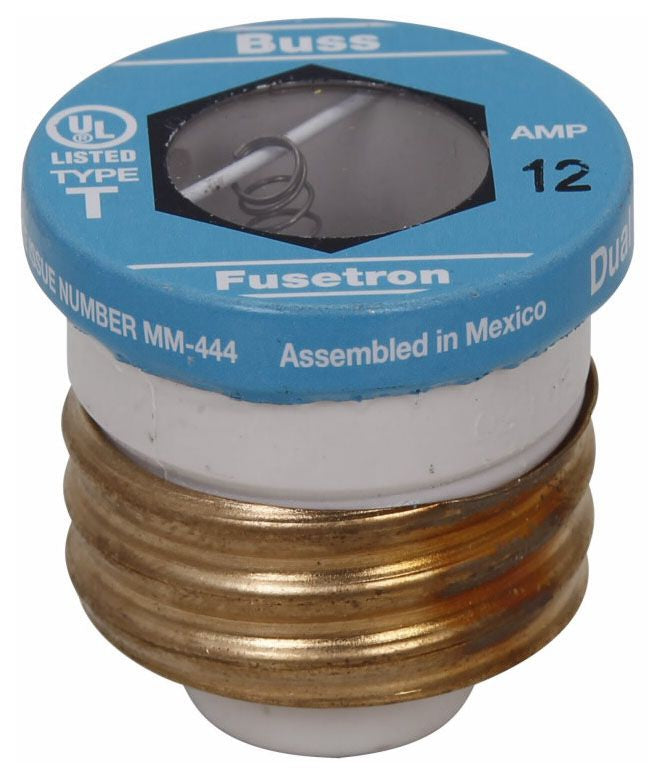

Eaton T-12 Bus Fusetron Fuse 12 A 125 VAC (Edison Base)

Product Description

The Eaton T-12 is a Bussmann T Series heavy-duty time-delay plug fuse rated 12 A at 125 VAC designed for protection of critical motor circuits and frequently cycling motors. It features dual-element construction for extended time delay and overload protection, a threaded stud terminal with Edison base for threaded mounting, and a 10 kA interrupting/short-circuit rating.

• Dual-element, time-delay design for motor and critical circuit protection
• Rated 12 A at 125 VAC with 10 kA interrupting/short-circuit rating
• Threaded stud terminal and Edison base with plastic body and brass threads

Product Highlights

12 A, 125 VAC time-delay plug fuse (Edison base) with dual-element construction and 10 kA interrupt rating for motor and critical circuit protection

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: T-12
• Country of Origin: Mexico

Technical Specifications

• Brand: Eaton
• Manufacturer Part Number: T-12
• Series: T Series
• Type: Heavy duty time delay plug fuse
• Amperage Rating: 12 A
• Voltage Rating: 125 VAC
• Interrupting Rating: 10 kA (10 kAIC, RMS symmetrical)
• Short Circuit Current Rating: 10 kA
• Element: Dual element
• Base Type: Edison base
• Terminal Type: Threaded stud
• Mounting Type: Threaded
• Body Material: Plastic body / Brass thread
• Body Type: Round
• Indicating: Non-indicating
• Rejection: Non-rejection
• Application: Protection of critical motor circuits and small motor overload protection; box cover units
• Approvals: UL, CSA, CE
• Standards/Approvals Details: CSA Class 1423-01 File No. 53787 | UL Guide No. JFHR JEFV UL File No. E56412/E12112
• UPC: 051712211208
• Catalog Number: T-12
