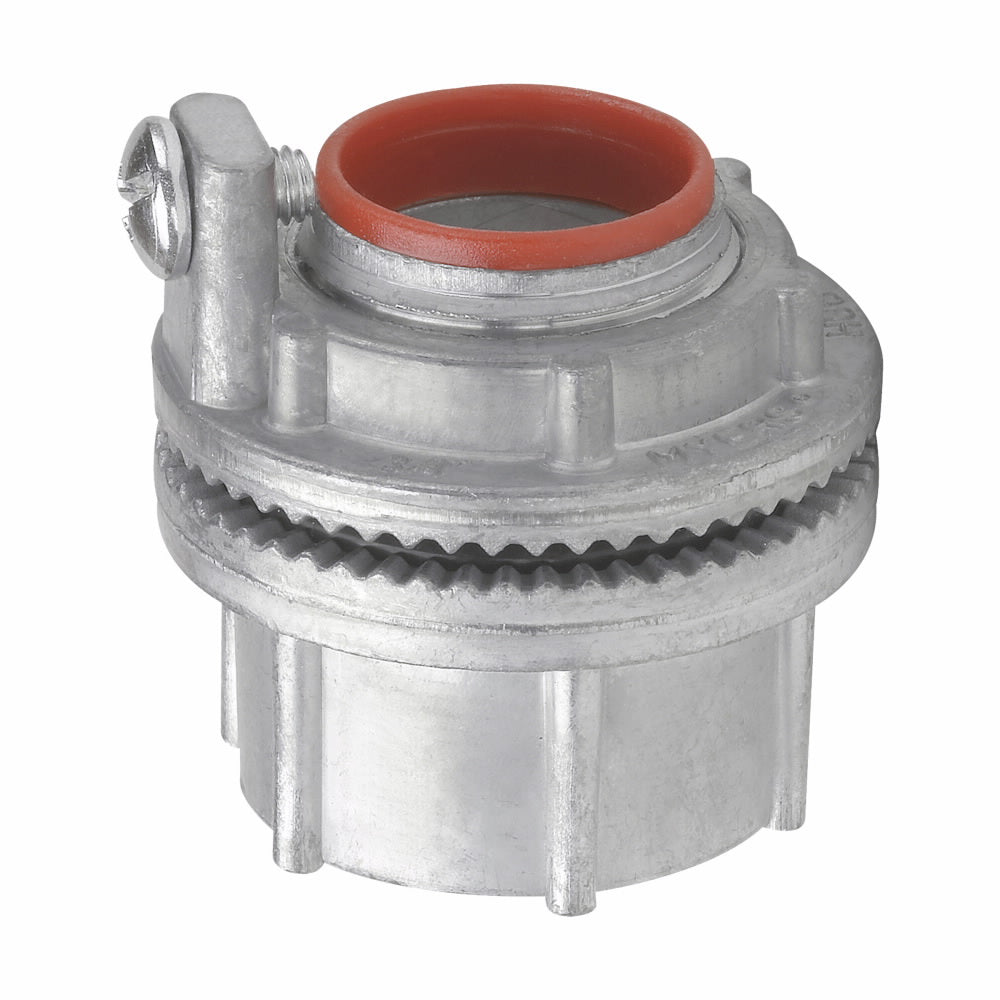

Eaton STG5 Cchm Stg5 Ch Myers 1 1/2 Ground Conduit Hub

Product Description

The EATON STG5 is an IMC/Rigid Conduit Hub with a threaded type and insulated throat. It features NEMA 2/3/3R/4/4X/12 construction, offering corrosion resistance, dust-tightness, water-tightness and vibration proofing. It is made of zinc (body/nut), nitrile (O-Ring gasket), and steel/stainless steel ground screw.

• Suitable for IMC/Rigid Conduit
• Features locknut grounding screw
• Temperature rating of -15 to 120 Deg C

Product Highlights

This ground hub is ideal for terminating electrical circuits through enclosure walls in pharmaceutical, chemical, food processing, pulp/paper, nuclear, solar and commercial construction applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: STG5

Technical Specifications

• Type: Threaded
• Throat Type: Insulated
• Trade Size: 1-1/2 Inch
• Constructional Feature: NEMA 2/3/3R/4/4X/12, Corrosion Resistant, Dusttight, Watertight, Vibration-Proof
• Ground Type: Locknut Grounding Screw
• Material: Zinc (Body/Nut), Nitrile (O-Ring Gasket), Steel/Stainless Steel Ground Screw
• Approval: UL 514B, CUL, CSA C22.2
• Used On: IMC/Rigid Conduit
• Copper Wire Size: 6 AWG (CSA), 8 AWG (UL)
• Temperature Rating: -15 to 120 Deg C
• Application: Pharmaceutical, Chemical, Food Processing, Pulp/Paper and Nuclear Industries, Commercial/Institutional Buildings/Structures Applications
• Finish: Natural
• Series: STG
• Size: 1-1/2 in
• Standards/Approvals: CSA C22.2|cUL Listed|UL 514B
• Product Type: Ground hub
• Area classification: Hazardous/Classified Locations
• Standards type: NEC/CEC
• NEC hazardous rating: Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
• NEMA Rating: 3 3R 4 4X 12
• Enclosure: NEMA 2/3/3R/4/4X/12
• Tc Connection: THREADED
• Brand: Crouse-Hinds
• Sub Brand: Myers
