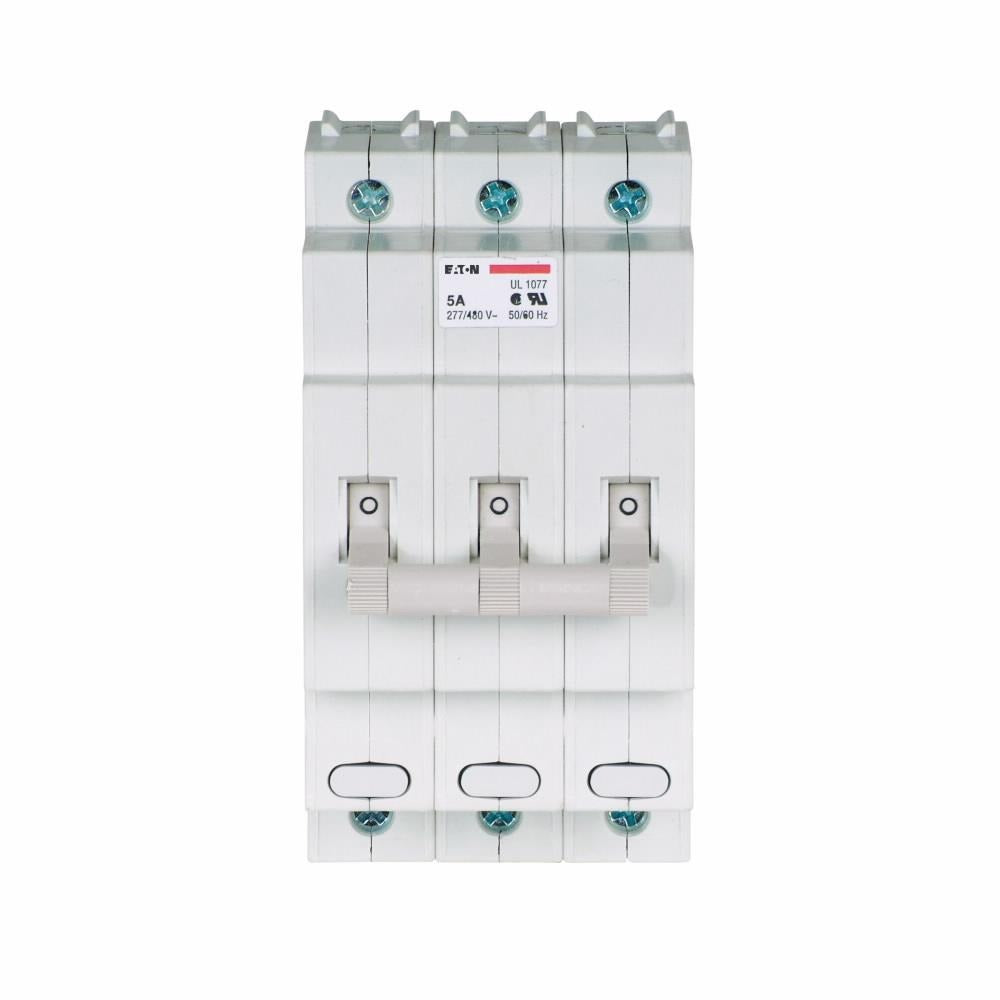

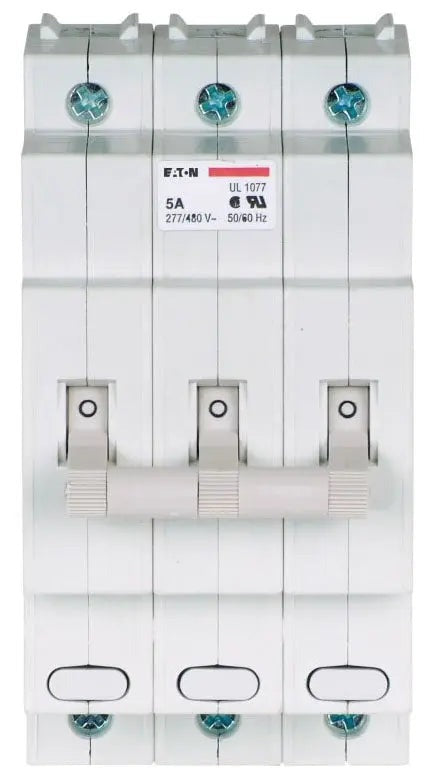

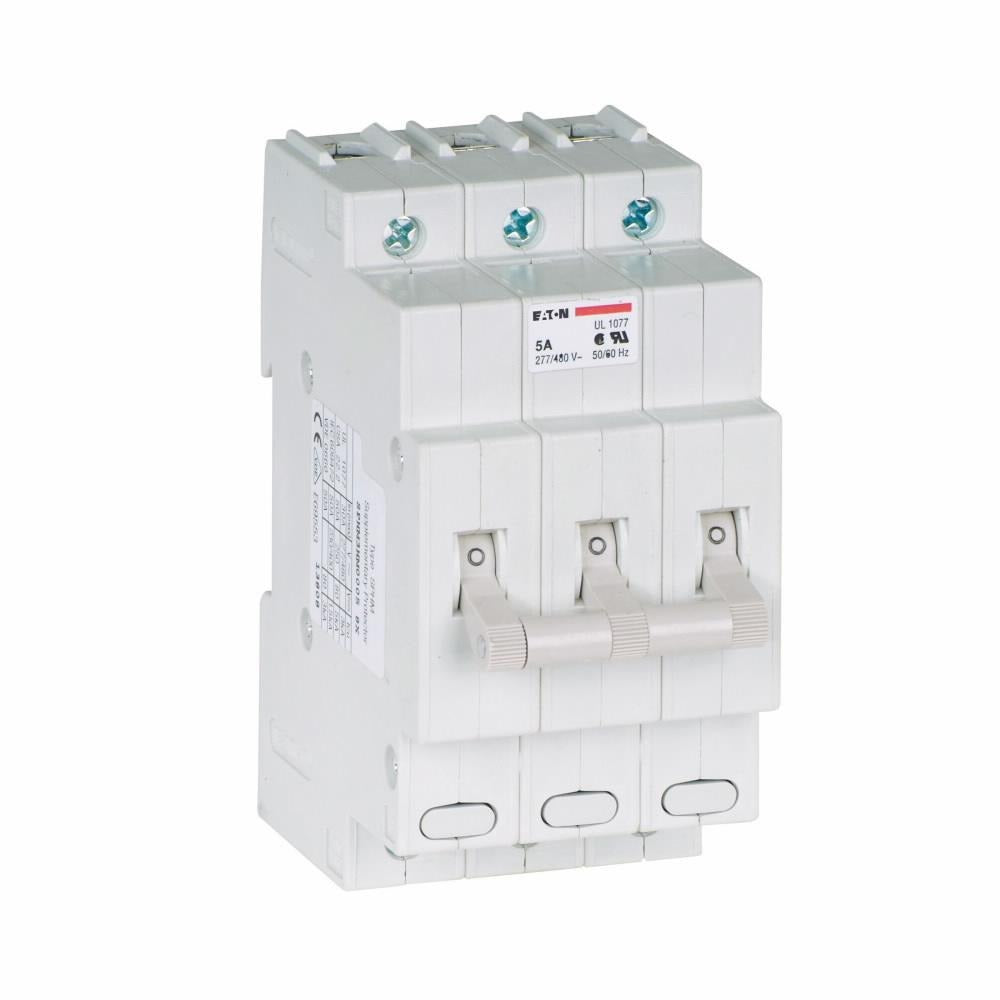

Eaton SPHM3RM07R5 SPHM Supplementary Protector 277/480 VAC (3 Pole)

Product Description

The Eaton SPHM3RM07R5 is a hydraulic supplementary protector (SPHM series) for overcurrent protection within appliances and electrical equipment. It provides 277/480 VAC operation at 50/60 Hz with a 7.5 A rating, 3 kA interrupting capacity, and a magnetic trip in a 3-pole configuration. The unit mounts on a DIN rail, accepts 14 to 6 AWG cable-in/cable-out connections, and features an IP20 enclosure and -40 to 85 °C operating range.

• Rated 277/480 VAC, 50/60 Hz; 7.5 A rated current; 3 kA interrupting rating; magnetic trip; 3 poles.
• DIN rail mounting with cable-in/cable-out connections for 14 to 6 AWG; IP20 enclosure; dimensions 2.22 x 2.32 x 4.14 in.
• Hydraulic magnetic operation with 18x inrush delay and medium time delay; resettable after overcurrent trip without cooling-off period.

Product Highlights

3-pole hydraulic magnetic supplementary protector; 277/480 VAC, 7.5 A; 3 kA interrupt; DIN rail mount; IP20 enclosure.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: SPHM3RM07R5
• Country of Origin: Morocco
