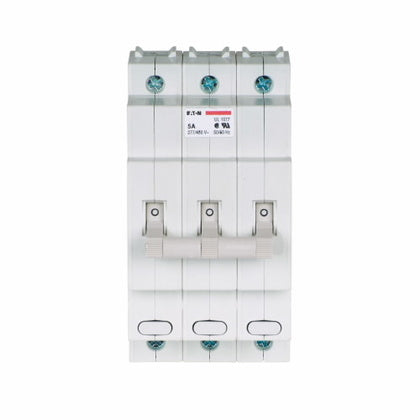

Eaton SPHM3RM0015 Hydraulic Supplementary Protector 15 A

Product Description

The EATON SPHM3RM0015 is an IEC circuit breaker recognized by UL under UL 1077, designed for overcurrent protection within appliances or electrical equipment where branch circuit protection is provided. It features a magnetic trip, cable-in/cable-out connection, and IP20 enclosure. It is suitable for protecting motor control circuits, CPTs, relays, contactor coils, power supplies and lighting circuits.

• Heat induced nuisance tripping eliminated
• The protector can be reset closed immediately after an over current trip without a cooling off period
• Environmental, vibration and shock-resistance

Product Highlights

Supplementary protector with magnetic trip, ideal for diverse applications requiring precise overcurrent protection.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: SPHM3RM0015

Technical Specifications

• Trip Type: Magnetic
• Wire Size: 14 to 6
• Application: For protecting motor control circuits, CPTs, relays, contactor coils, power supplies, PLC I/O points, lighting circuits, appliances, electronic equipment and replacing fuses
• Mounting Type: DIN Rail
• Enclosure Type: IP20
• Voltage Rating: 277/480
• Connection Type: Cable-In/Cable-Out
• Frequency Rating: 50/60
• Temperature Rating: -40 to 85
• Type: Hydraulic
• Series: SPHM
• Dimensions: 2.22 in L x 2.32 in W x 4.14 in H
• Amperage Rating: 15 A
• Poles: 3
• Volts AC: 277 V
• Category: Circuit Protection
• Voltage Rating - AC: 240 V
• Actuator Type: Toggle
• Packaging: Bulk
• Number of Poles: 3
• Part Status: Active
• Illumination: None
• Approval Agency: CSA, UL489, UL1077
• Breaker Type: Magnetic (Hydraulic Delay)
