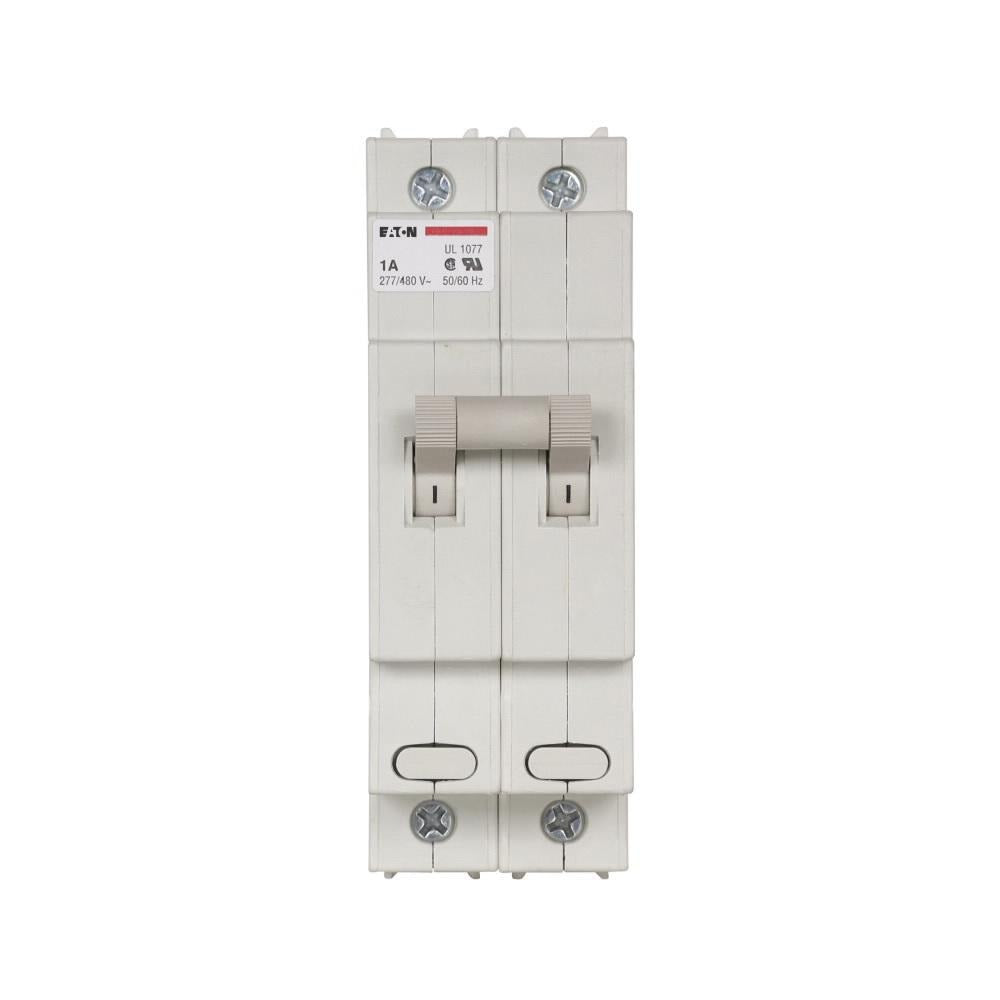

Eaton SPHM2RM0001 SPHM supplementary protector 1 A (Each)

Product Description

Eaton SPHM2RM0001 is a 1 A hydraulic supplementary protector designed for appliance and equipment overcurrent protection. It is a 2-pole device rated 277/480 VAC, 50/60 Hz with a 3 kA interrupting rating and magnetic trip. The unit mounts on a DIN rail, accepts 14 to 6 AWG cable in/out connections, and is housed in an IP20 enclosure for industrial control applications.

• Electrical: 1 A current rating, 277/480 VAC, 50/60 Hz, 3 kA interrupting rating, magnetic trip, 2 poles
• Mechanical: DIN rail mounting, cable in/out for 14 to 6 AWG, IP20 enclosure, dimensions 1.48 in L x 2.32 in W x 4.14 in H, operating temperature -40 to 85 deg C
• Standards and performance: UL1077 supplementary protector, hydraulic design with medium 18x inrush characteristic, resettable immediately after overcurrent trip

Product Highlights

Hydraulic 2-pole supplementary protector, 1 A at 277/480 VAC, 3 kA interrupting, DIN-rail, UL1077

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: SPHM2RM0001
• Country of Origin: United States
