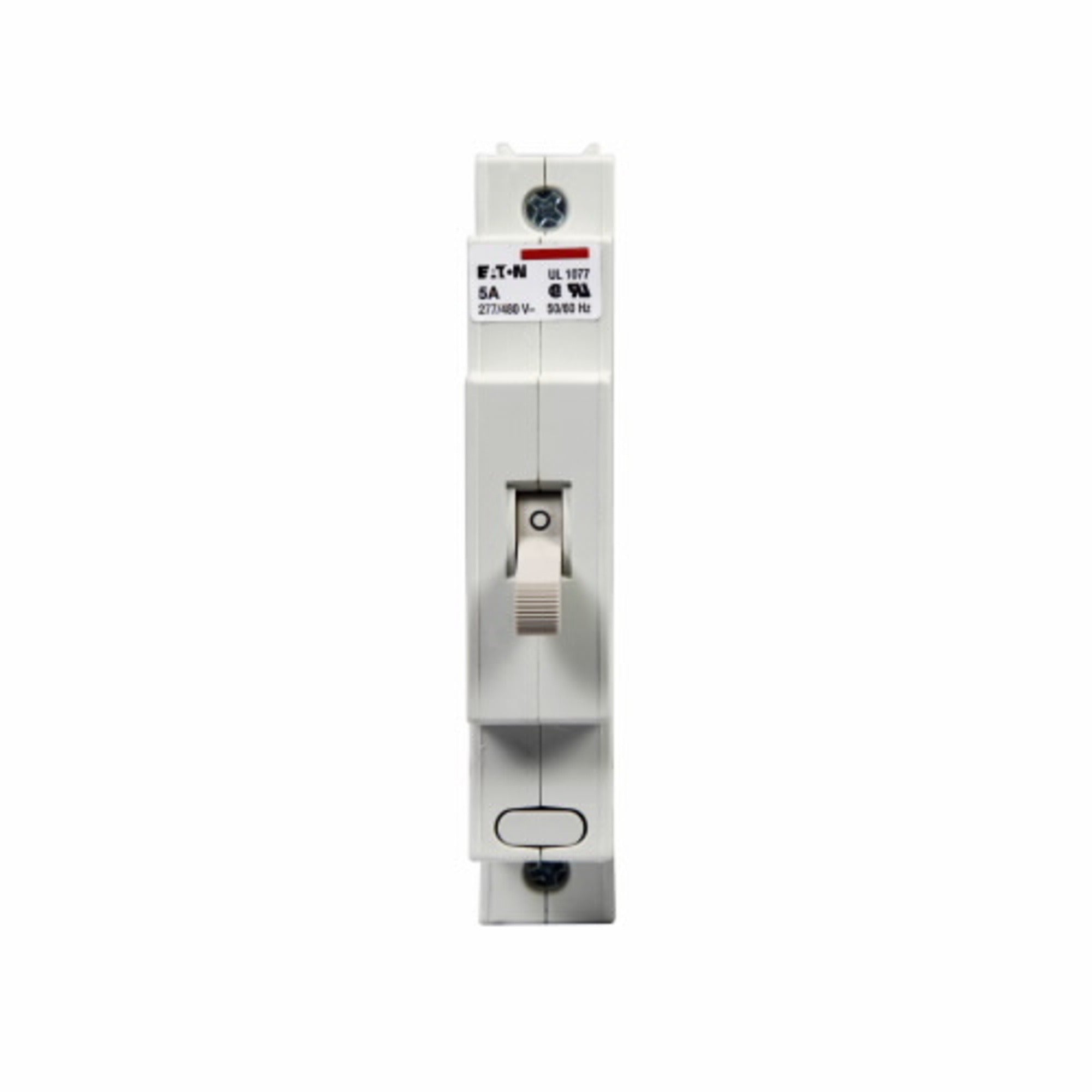

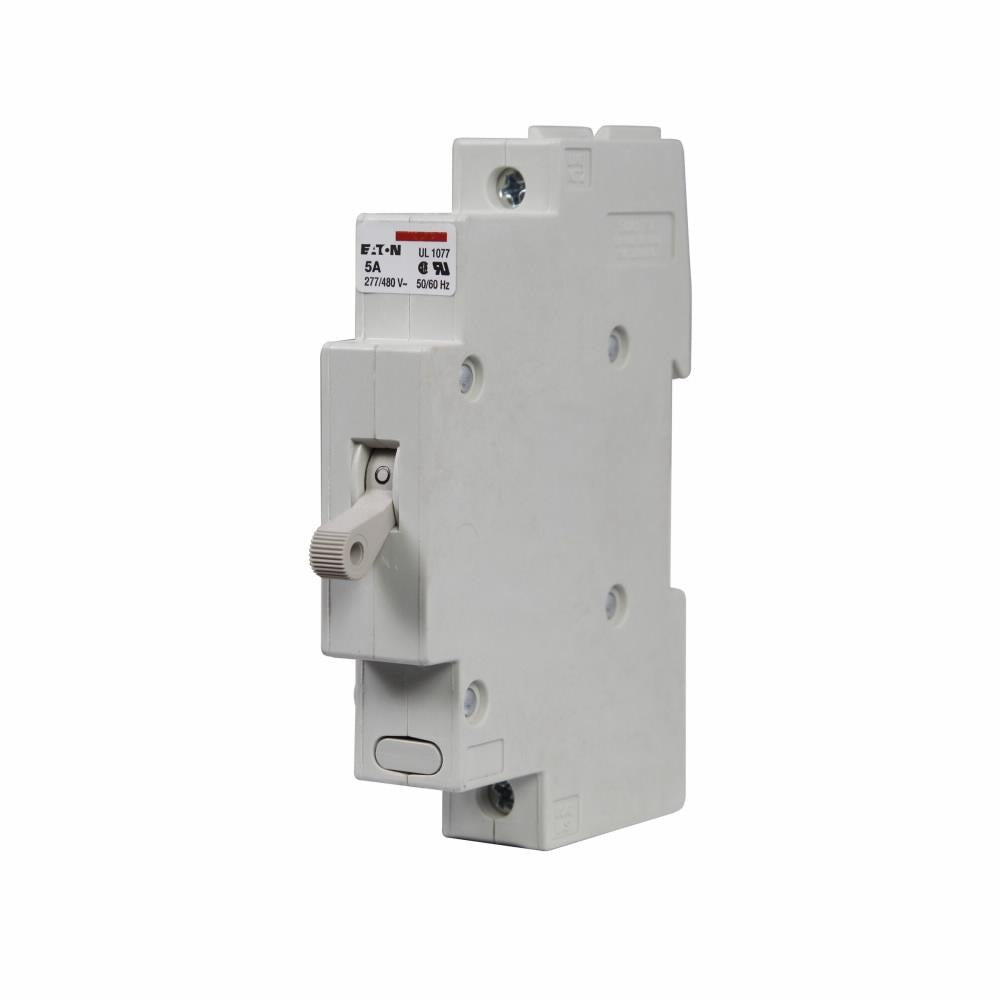

Eaton SPHM1RM02R5 Medium Time Delay Supplementary Protector 2.5 A (1 Pole)

Product Description

Eaton SPHM1RM02R5 is a hydraulic magnetic medium time delay supplementary protector rated 277 VAC and 2.5 A with a single pole and 3 kA interrupting capacity. The device is IEC-type supplementary protection recognized under UL 1077, mounts on a DIN rail, and uses cable-in/cable-out connections accepting 14 to 6 AWG. It is IP20 rated and specified for 50/60 Hz operation and -40 to 85 deg C ambient.

• Hydraulic magnetic trip, medium time delay characteristic with 18x inrush handling
• Rated 277 VAC, 2.5 A, 3 kA interrupting capacity, single-pole
• DIN rail mounting, cable-in/cable-out connections, accepts 14 to 6 AWG; IP20 enclosure

Product Highlights

Hydraulic magnetic supplementary protector, 277 VAC 2.5 A rating, 3 kA interrupting capacity, DIN rail, IP20

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: SPHM1RM02R5
• Country of Origin: Europe
