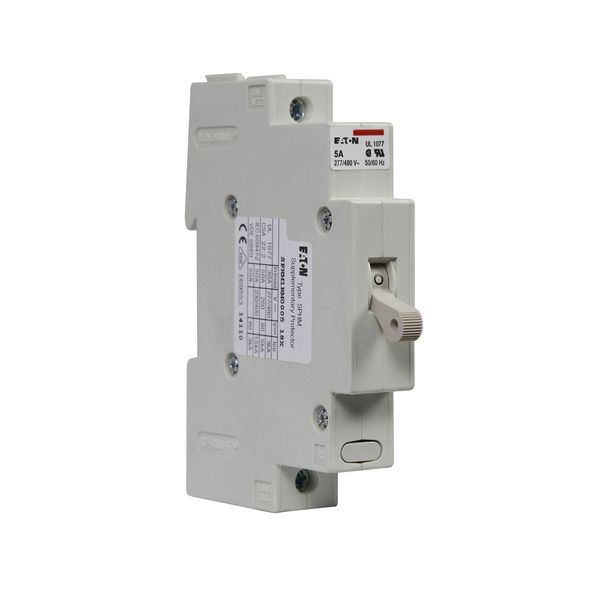

Eaton SPHM1RM0005 Medium Time Delay Supplementary Protector 277 VAC 5 A

Product Description

The EATON SPHM1RM0005 is an IEC circuit breaker recognized by UL under UL 1077, designed for overcurrent protection within appliances or electrical equipment where branch circuit protection has already been provided or is not required. It is designed to hold in at 100% of continuous rated current regardless of ambient temperatures from -40 to 85 deg C.

• Easy installation on 35 mm DIN rail with a spring-loaded clip for quick release.
• Can be reset immediately after an overcurrent trip without a cooling-off period.
• Suitable for protecting motor control circuits, CPTs, relays, contactor coils, power supplies, and PLC I/O points.

Product Highlights

The EATON SPHM1RM0005 supplementary protector provides reliable overcurrent protection for various applications, with convenient installation and immediate reset capabilities.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: SPHM1RM0005

Technical Specifications

• Trip Type: Hydraulic Magnetic
• Wire Size: 14 to 6
• Application: For protecting motor control circuits, CPTs, relays, contactor coils, power supplies, PLC I/O points, lighting circuits, appliances, electronic equipment and replacing fuses
• Mounting Type: DIN Rail
• Enclosure Type: IP20
• Voltage Rating: 277
• Connection Type: Cable-In/Cable-Out
• Frequency Rating: 50/60
• Temperature Rating: -40 to 85
• Type: Medium Time Delay
• Series: SPHM
• Dimensions: 4.14 in H x 0.74 in W x 2.32 in D
• Actuator Type: Lever/Toggle
• Amperage Rating: 5
• Number Of Poles: Single-pole
• Inrush Delay: 18 X
