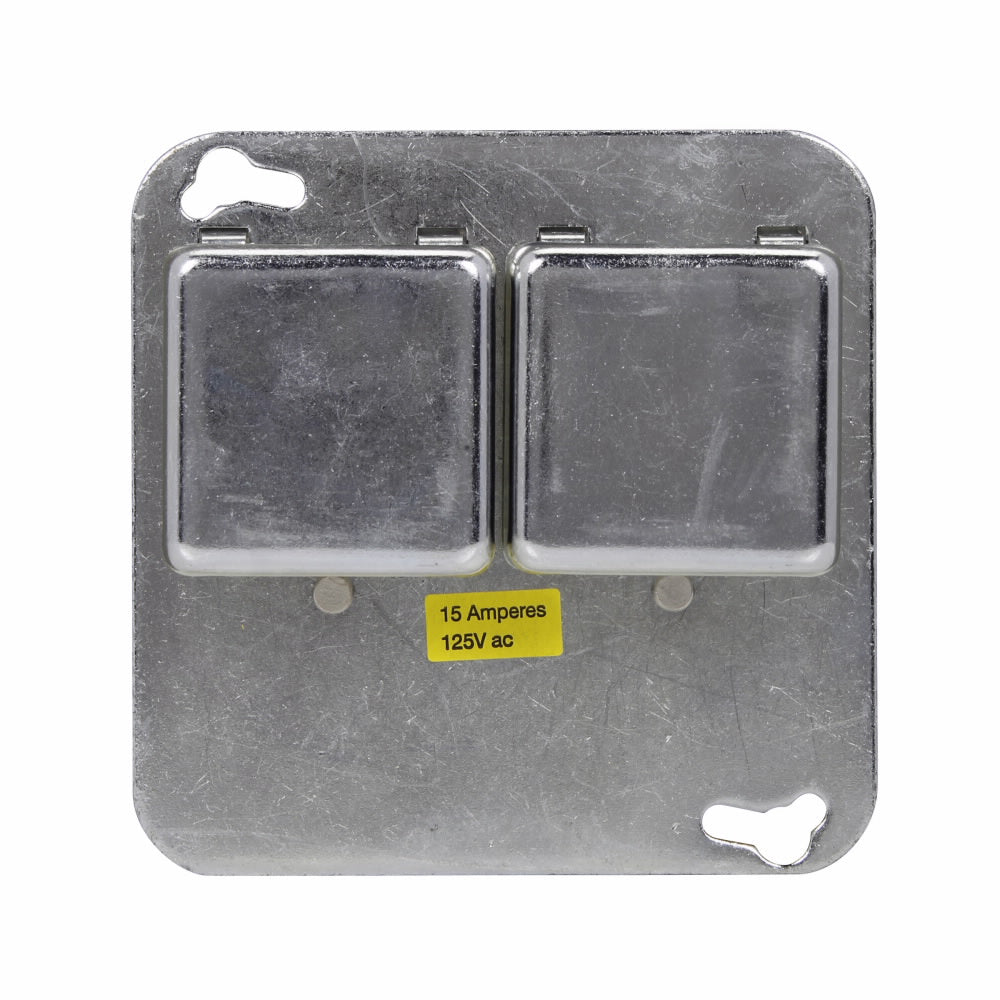

Eaton SOY-B BUS BOX CVR UNIT 125 VAC 15 A 3/4 hp

Product Description

The Eaton SOY-B is a Bussmann Fusetron Box Cover Unit designed for electrical applications. It operates at 125 VAC and supports a current of up to 15 A. This unit is suitable for small motor circuits and provides additional protection for loads requiring overcurrent protection.

• Compatible with SA adapters and S or SL type fuses.
• Dimensions: Four point one two inches long, two and one-half inches wide, and four point one two inches high.
• Power rating of three fourths horsepower.

Product Highlights

This unit is ideal for use in various electrical installations, offering reliable performance in protecting circuits.

Product Information

Standard Information

• Manufacturer: Eaton
• UPC: 05171233006

Technical Specifications

• Amperage Rating: 15 A
• Voltage Rating: 125 VAC
• Power Rating: 3/4 hp
• Application: For fractional horsepower, 125 VAC 1-phase motor circuits, general 125 VAC supplemental circuits
• Dimensions: 4.12 in L x 2-1/2 in W x 4.12 in H
• Phase: 1
• Standards/Approvals: UL Guide No. JAMZ File No. IE6491 | CSA Class 6225-01 File No. 47235
• Suitable For Use With: SA Adapter and S or SL Type Fuse, Edison Base Plug Fuses
• Type: Square
