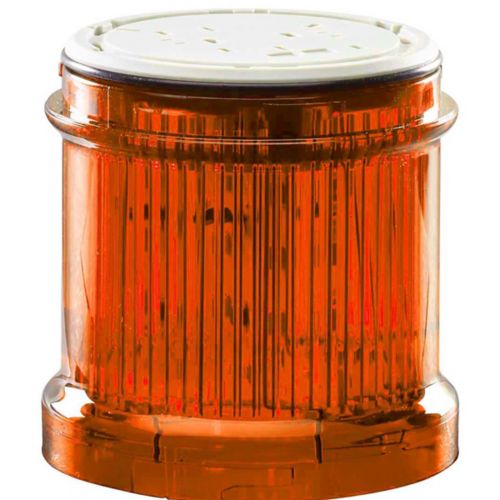

Eaton SL7-L120-A Stacklight Module 110/120 Vac 70 mm

Product Description

The Eaton SL7-L120-A stacklight module is a 70 mm continuous LED indicator. Operating at 110/120 Vac, it features an amber lens and an IP66 environmental rating. This stacklight module is UL type 4, 4X, and 13 rated, suitable for industrial automation and control applications requiring clear visual signaling.

• 70 mm stacklight module
• Continuous LED illumination
• IP66 and UL type 4, 4X, 13 environmental ratings

Product Highlights

The Eaton SL7-L120-A stacklight module provides reliable visual indication for industrial environments.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: SL7-L120-A
• Country of Origin: DE

Technical Specifications

• Product Name: Eaton SL7 stacklight module
• Catalog Number: SL7-L120-A
• EAN: 4015081677986
• Product Length/Depth: 3.5 in
• Product Height: 3 in
• Product Width: 3 in
• Product Weight: 0.25 lb
• Compliances: CE Marked
• Certifications: cULus Listed
• Product Type: Stacklight module
• Type: 70 mm
• Environmental rating: IP66
• Voltage rating: 110/120 V
• Illumination: Continuous LED
• Color: Amber
• Enclosure: UL type 4, 4X, 13
• Series: SL7
• Base Diameter: 70 mm
• Brand: Eaton - Cutler Hammer
• Lens Color: Amber
• Manufacturer Part Number: SL7-L120-A
• UPC Code: 4015081677986
• Category: Industrial Automation and Controls
• Number of Stacks: 1
• Voltage - Supply: 120VAC
• Part Status: Active
• MPN: SL7-L120-A
• Features: Tower Light Series SL4, Voltage 120V AC, Tower Light Color Amber, Diameter 70 mm, NEMA Rating NEMA 13, NEMA 4, NEMA 4X, Lighting Technology LED, Not Applicable Flashes per Minute, Lamp Life 100, 000 hr, Housing Material ABS, Lens Design Fresnel, Lens Material Polycarbonate, Operating Temp. -22 Degrees to 140 Degrees F
• Country of Origin: DE
• California Prop 65 Warning: N
