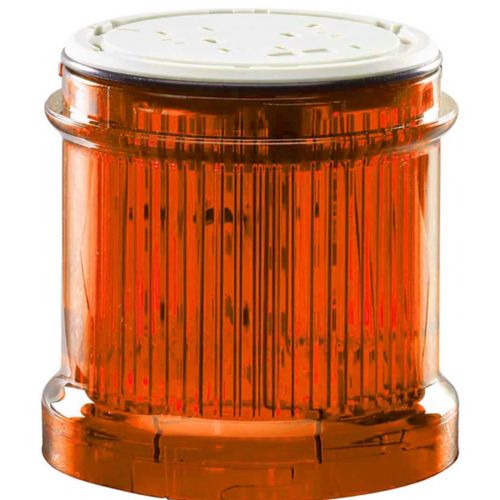

Eaton SL7-BL120-A Light Module Flashing LED 110/120 Vac 70 mm

Product Description

The EATON SL7-BL120-A light module provides reliable control over key processes and machine availability. This 70 mm stacklight module features a flashing LED, and operates at 110/120 VAC. It is designed to keep you informed about potential material requirements, downtime and hazards and is well suited to adapt to any industrial application.

• Six lens colors are red, amber, yellow, green, blue and white
• Continuous, flashing, strobe and multi-strobe lighting functions
• Mono-tone, dual-tone and multi-tone audible alarms

Product Highlights

The SL7 series stacklight module has IP66 and UL Type 4/4X/13 ratings for protection against strong jets of water. It utilizes high-performance LEDs for maximum illumination.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: SL7-BL120-A
• Country of Origin: China

Technical Specifications

• SKU: SL7-BL120-A
• Product Name: Eaton SL7 stacklight module
• Catalog Number: SL7-BL120-A
• EAN: 4015081679294
• Product Length/Depth: 3.5 in
• Product Height: 3 in
• Product Width: 3 in
• Product Weight: 0.25 lb
• Compliances: CE Marked
• Certifications: UL 508
• Product Type: Stacklight module
• Type: 70 mm
• Environmental rating: IP66
• Voltage rating: 110/120 V
• Frequency rating: 2 Hz
• Illumination: Flashing LED
• Color: Amber
• Quantity: 1
• Enclosure: UL type 4, 4X, 13
• Series: SL7
• UNSPSC: 39121534
• Material: Polycarbonate
• Application: For indoor/outdoor use
• Temperature Rating: -22 to 140
• Operating Current: 0.028 to 0.03 A
• Enclosure NEMA Rating: NEMA 4, 4X, 13
• Lens Color - Vehicle Lighting: Amber
• Fixture Lens Material: Polycarbonate
• Voltage: 110/120V AC
• Standards: UL, UL 508, CSA C22.2, CE, IEC/EN 60947-5-1
