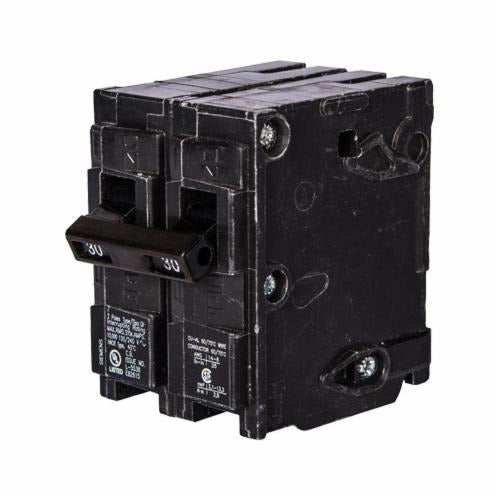

Eaton siemens-q230 30A 2-pole Circuit Breaker 120/240V

Product Description

The EATON siemens-q230 is a double pole, plug-in circuit breaker rated at 30 amperes and 120/240 volts. It is designed for use in residential load centers and light commercial panelboards where dependable overcurrent protection is required. The breaker installs without tools into compatible plug-in style panels and provides simultaneous disconnection of both legs of a 240-volt circuit. Electricians and panel service technicians use this breaker as a standard replacement or new-circuit addition in residential and light-duty office electrical systems.

This breaker is suited for residential applications and light office environments. It is commonly used to protect 240-volt branch circuits such as dryer circuits, water heater circuits, HVAC equipment, and similar double-pole loads. The plug-in design makes it a straightforward fit for compatible load centers during panel upgrades, circuit additions, or breaker replacement work.

Key Features

• Double pole configuration disconnects both circuit legs simultaneously
• Plug-in mounting — no bus lugs or tools required for panel installation
• 30-amp rating at 120/240 volts for standard residential double-pole circuits
• Compact design fits standard plug-in residential and light commercial panelboards
• Suitable for HACR-rated applications including air conditioning, heating, and refrigeration circuits

Compatibility

Designed as an OEM-style plug-in replacement double pole circuit breaker for compatible residential and light commercial load center panels that accept plug-in style breakers.

Installation Notes

Installation must be performed by a licensed electrician in accordance with NFPA 70 (NEC) and all applicable local codes. Always shut off the main breaker and verify the bus is de-energized before removing or installing any breaker. Confirm the panel accepts plug-in style breakers and that the bus slot is undamaged before seating the new breaker. Do not attempt field installation of shunt trips or locking accessories not factory-configured for this breaker.

Technical Specifications

• Amperage: 30 amps
• Voltage Rating: 120/240 volts
• Number of Poles: 2
• Mounting Type: Plug-in
• Application: Residential and light commercial
• HACR Rated: Yes — air conditioning, heating, refrigeration

Standard Information

• Brand: EATON
• Manufacturer Part Number: siemens-q230
