Eaton SGFH20V GFCI HG ST Duplex 20A

Product Description

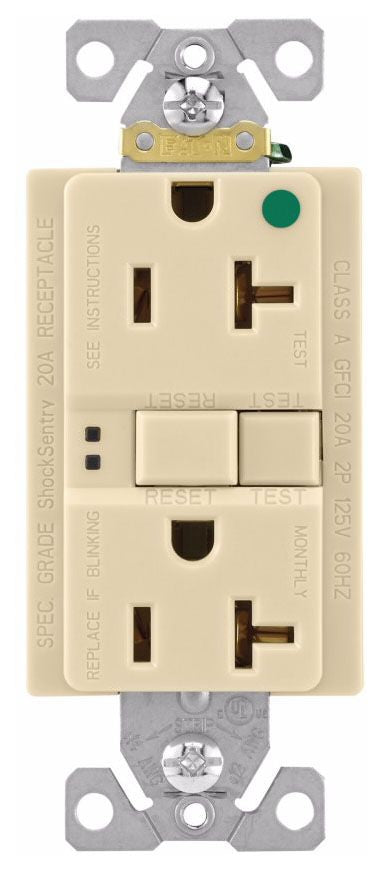

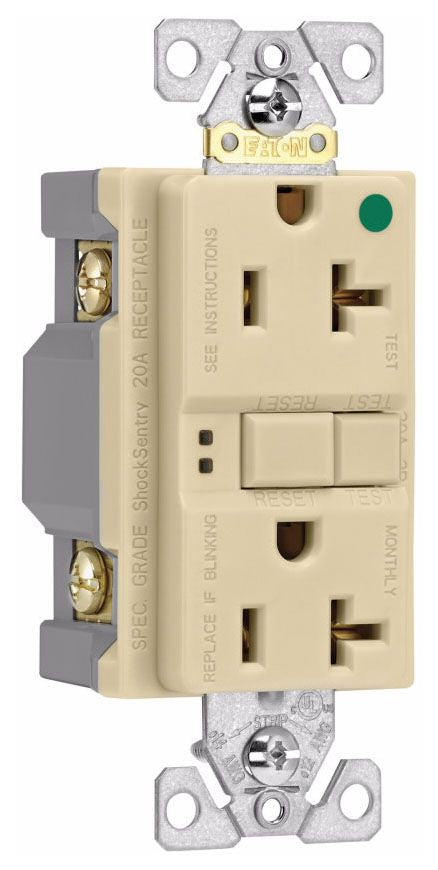

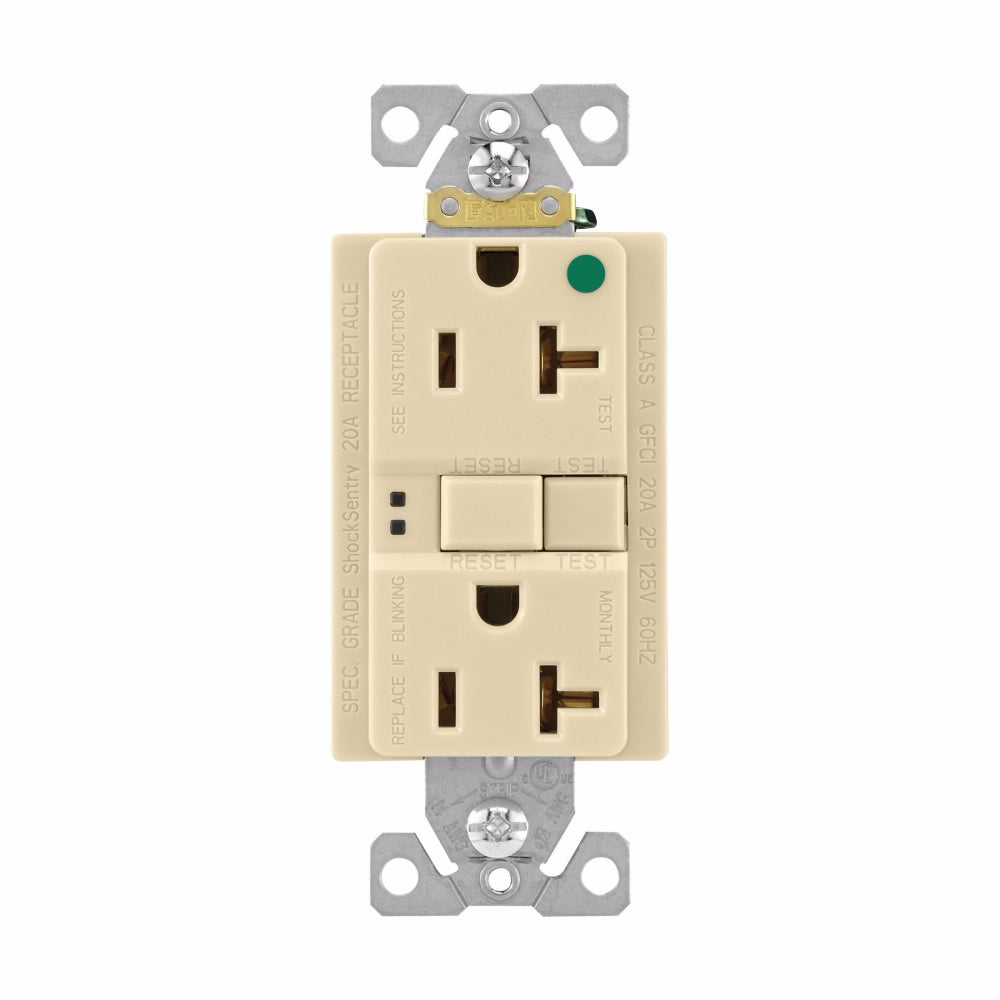

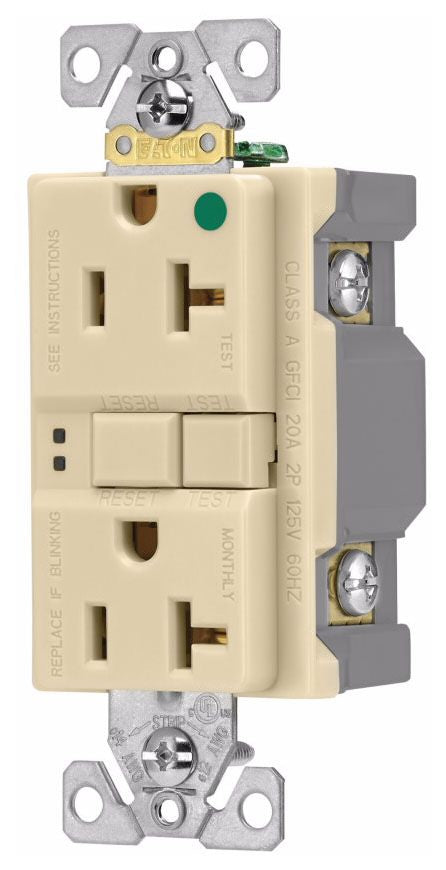

The EATON SGFH20V is a hospital-grade GFCI duplex receptacle. Rated at 125 VAC and 20 Ampere, this receptacle features back and side wiring options. Constructed with a nylon top housing and a polycarbonate bottom housing. It is designed for residential, commercial, and industrial applications.

• GFCI Duplex Receptacle
• Hospital Grade
• Self-tests periodically to ensure GFCI protection

Product Highlights

The EATON SGFH20V GFCI receptacle provides dependable protection suitable for residential, commercial, and industrial settings.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: SGFH20V
• Country of Origin: CHN

Technical Specifications

• Type: Duplex
• Configuration: 5-20R
• Voltage Rating: 125 VAC
• Current Rating: 20 Ampere
• Number of Poles: 2
• Number of Wires: 3
• Material: Nylon (Top Housing), Polycarbonate (Bottom Housing)
• Wiring: Back, Side
• Grade: Hospital
• Approval: UL (Canada and US), UL 498, UL 943, CSA, NOM 426
• Wire Size: 14 to 10 AWG
• Temperature Rating: -35 to 66 Deg C
• Flammability Rating: UL 94 V-2
• Application: Commercial, Institutional Buildings, Structures, Industrial and Other Applications
• Frequency Rating: 60 Hz
• Includes: Standard Unbreakable Wallplate
• Manufacturer Part Number: SGFH20V
• NEMA Rating: 5-20R
• Terminal Type: Back/Side Wire
• Mounting Method: Flush
• Circuit Interrupter Type: GFCI
• Contact Material: Brass
• Torque Rating: 16 lbf-inch
• Face/Body Material: Polycarbonate Nylon
• Receptacle Type: Two-pole, three-wire, grounding
• Outlet Type: Duplex
