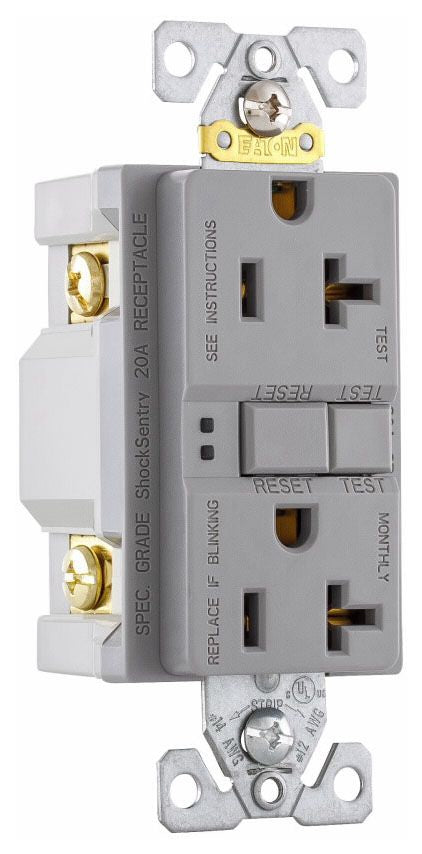

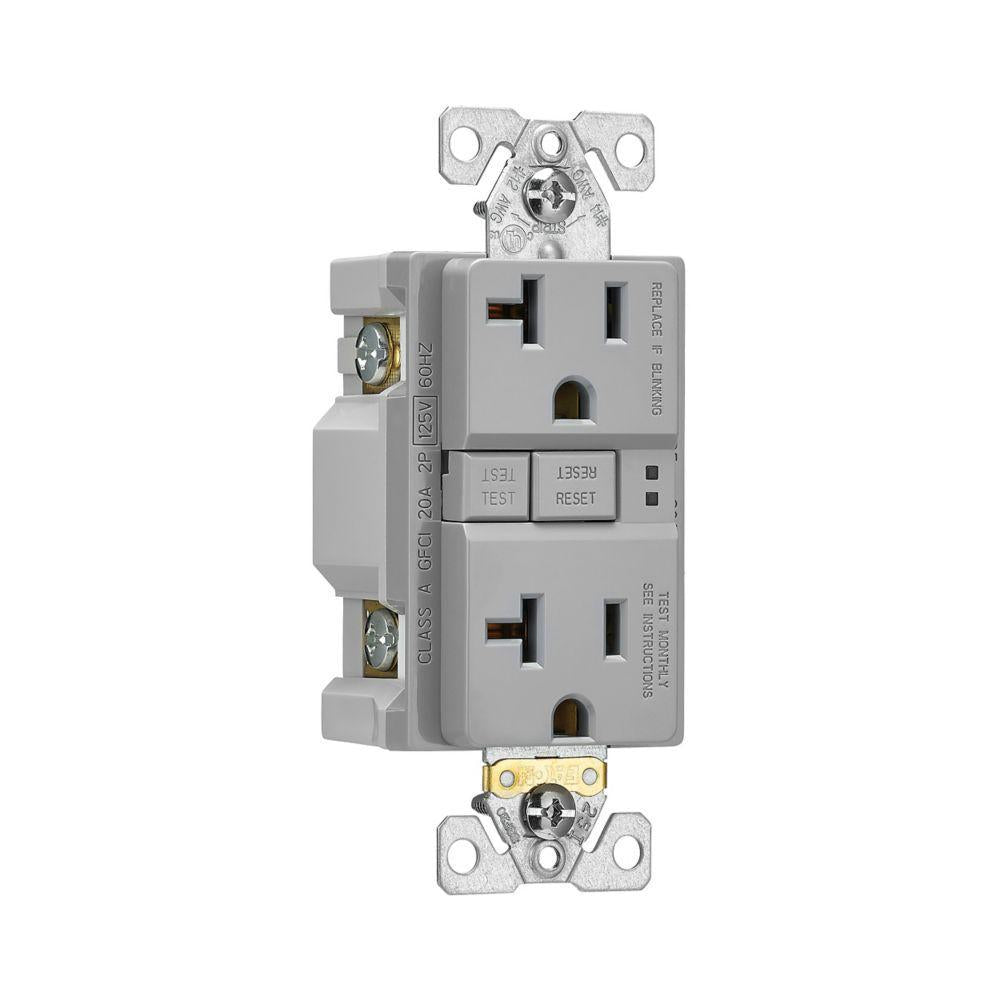

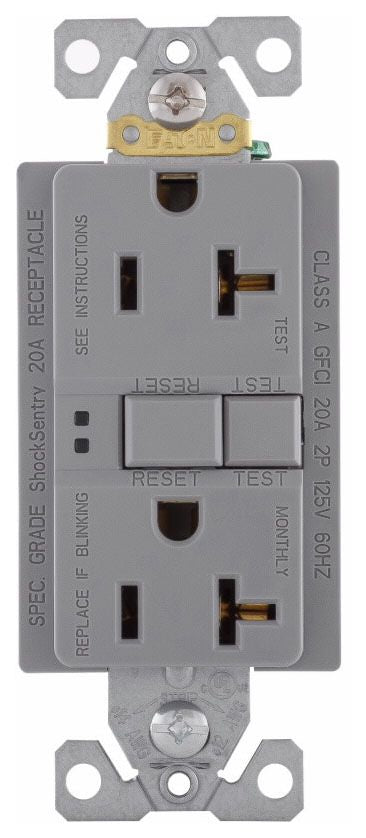

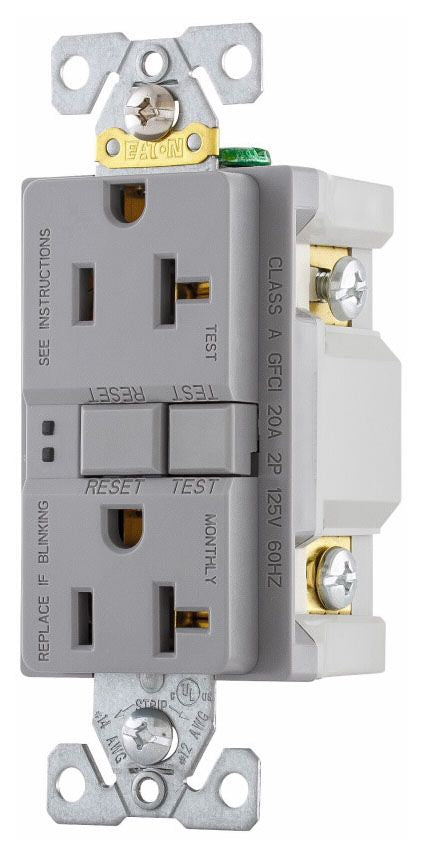

Eaton SGF20GY GFCI Self-Test 20A 125V Duplex Receptacle

Product Description

The Eaton SGF20GY GFCI receptacle is designed to recognize a ground fault in wiring and immediately break the flow of electricity. Eaton GFCIs are tested to the highest standards and provide protection suitable for residential, commercial and industrial settings. It performs periodic self-tests to ensure integrity of GFCI protection.

• Performs periodic self tests to ensure integrity of GFCI protection
• Visual trip indicator light gives quick notification of a tripped or "end of life" condition
• Meets and exceeds 10 kA short circuit testing and UL 943 safety standards

Product Highlights

This GFCI receptacle provides protection from electrical shocks and prevents re-setting if the ground fault renders the device no longer functional.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: SGF20GY
• Country of Origin: CHN

Technical Specifications

• Frequency Rating: 60 Hz
• Grade: Specification
• Material: Brass/Polycarbonate
• NEMA Rating: NEMA 5-20R
• Series: SGF
• Temperature Rating: -31 to 150.8 deg F
• Terminal Type: Back/Side Wire/Screw
• Type: Duplex Grounding Self-Test
• Voltage Rating: 125 VAC
• Amperage Rating: 20 A
• Number of Poles: 2
• Number of Wires: 3
• Configuration: 5-20R
• Wiring: Back/Side
• Wire Size: 14 to 10 AWG
• Flammability: UL 94-V2
• Application: Commercial and Industrial Area, Public Bathroom, Breakroom, Food Service Area
• Circuit interrupter type: GFCI
• Contact material: Brass
• Wiring method: Back and side wire
• Allowable wire size: #14 - 10 AWG
• Torque rating: 16 lbf-inch
• Mounting method: Flush
• Receptacle type: Two-pole, three-wire, grounding
