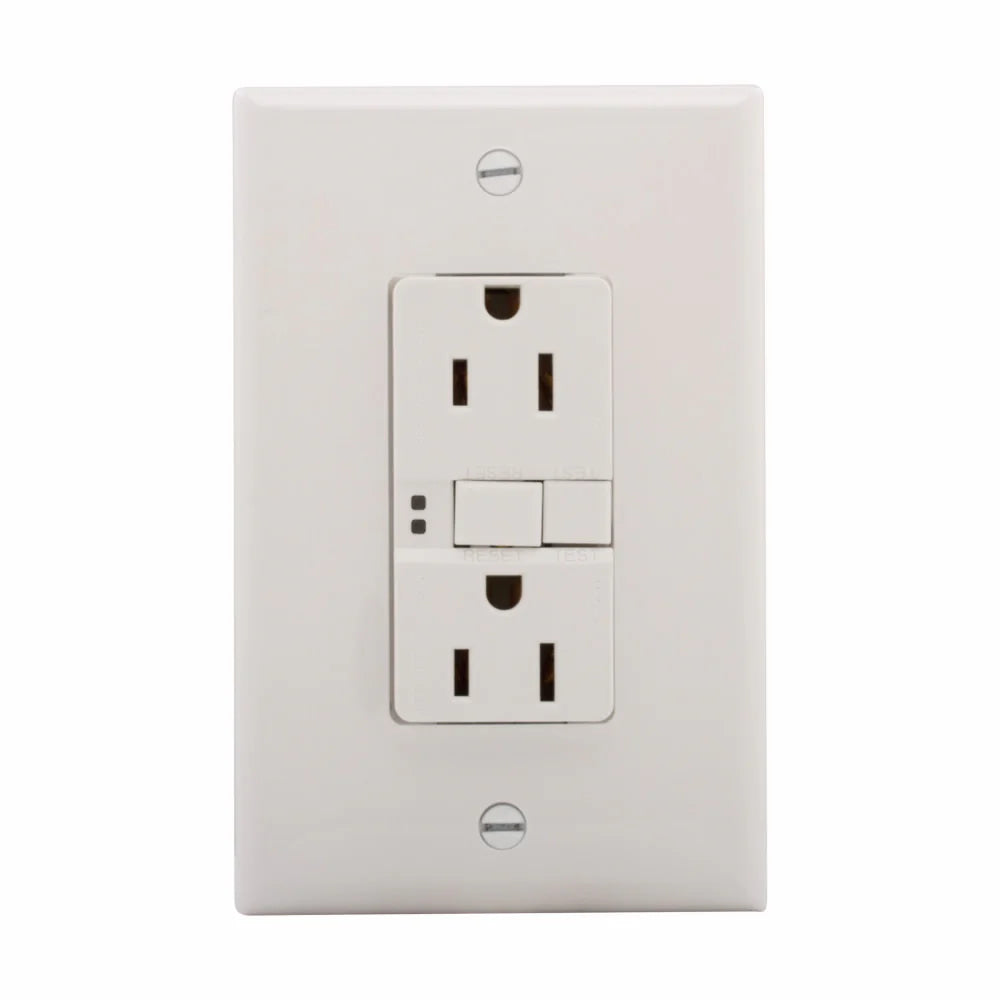

EATON SGF15W SELF-TEST GFCI RECEPTACLE 125 VAC 15 A 2 POLES 3 WIRES

Product Description

The Eaton SGF15W is a self-test GFCI receptacle rated for 125 volts and 15 amps. This device features two poles and three wires, designed to protect against ground faults that may cause electrical shock. The receptacle is equipped with a visual indicator light to signal when GFCI protection is compromised. It is suitable for a variety of applications, including residential, commercial, and outdoor settings.

• Self-testing feature ensures continuous protection.
• Built-in visual trip indicator alerts users to issues.
• NEMA 5-15R rated for reliable performance.

Product Highlights

This GFCI receptacle provides essential protections for any electrical setup that requires safety from ground faults.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer Part Number: SGF15W

Technical Specifications

• Amperage Rating: 15 A
• Voltage Rating: 125 VAC
• Application: Residential Buildings, Facilities and Other Applications
• NEMA Rating: NEMA 5-15R
• Number of Poles: 2
• Number of Wires: 3
• Material: Brass/Polycarbonate
• Dimensions: 1.98 in L x 2.83 in W x 4.61 in H
• Standards/Approvals: cULus Listed, NOM Certified
• Terminal Type: Back/Side Wire
