Eaton SFE-7-1/2 fast-acting automotive fuse 7.5 A (pack of 5)

Product Description

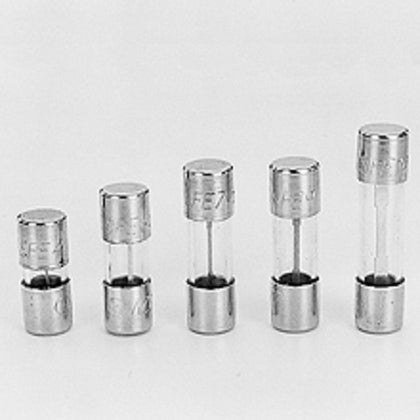

Eaton SFE-7-1/2 is a fast-acting automotive cylindrical fuse rated 7.5 A with a 32 VAC/VDC voltage rating and a 10 kA interrupting rating. It uses a single-element glass tube with ferrule terminals for clip or holder mounting and measures approximately 1/4 in diameter by 7/8 in length. The fuse is intended for overcurrent protection in automotive and electronic low-voltage circuits.

• 7.5 A amperage rating; 32 VAC/VDC voltage rating; 10 kA interrupting rating.
• Single-element glass cylindrical body; dimensions 1/4 in diameter x 7/8 in length.
• Ferrule terminals for clip/holder mounting; non-indicating; series SFE for automotive and electronic circuits.

Product Highlights

Fast-acting 7.5 A automotive glass fuse, 32 VAC/VDC, 10 kA interrupting, ferrule ends, pack of 5.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: SFE-7-1/2

Technical Specifications

• Brand: Eaton (Bussmann)
• Manufacturer Part Number: SFE-7-1/2
• Series: SFE
• Type: Fast-acting automotive fuse
• Amperage Rating: 7.5 A
• Voltage Rating: 32 VAC/VDC
• Interrupting Rating: 10 kA
• Material: Glass
• Body Type: Cylindrical glass
• Dimensions: 0.25 in diameter x 0.875 in length
• Terminal Type: Ferrule
• Connection: Ferrule end x ferrule end
• Mounting Type: Clip/Holder
• Element: Single
• Indicating: Non-indicating
• Standards/Approvals: SAE; UL FHXT AU169
• Application: Automotive and electronic circuits
• Pack Quantity: 5
• UPC: 051712729826
• Weight: 0.01 lb
