Eaton SFE-7-1/2 Buss Glass Fuse 7.5 A (5)

Product Description

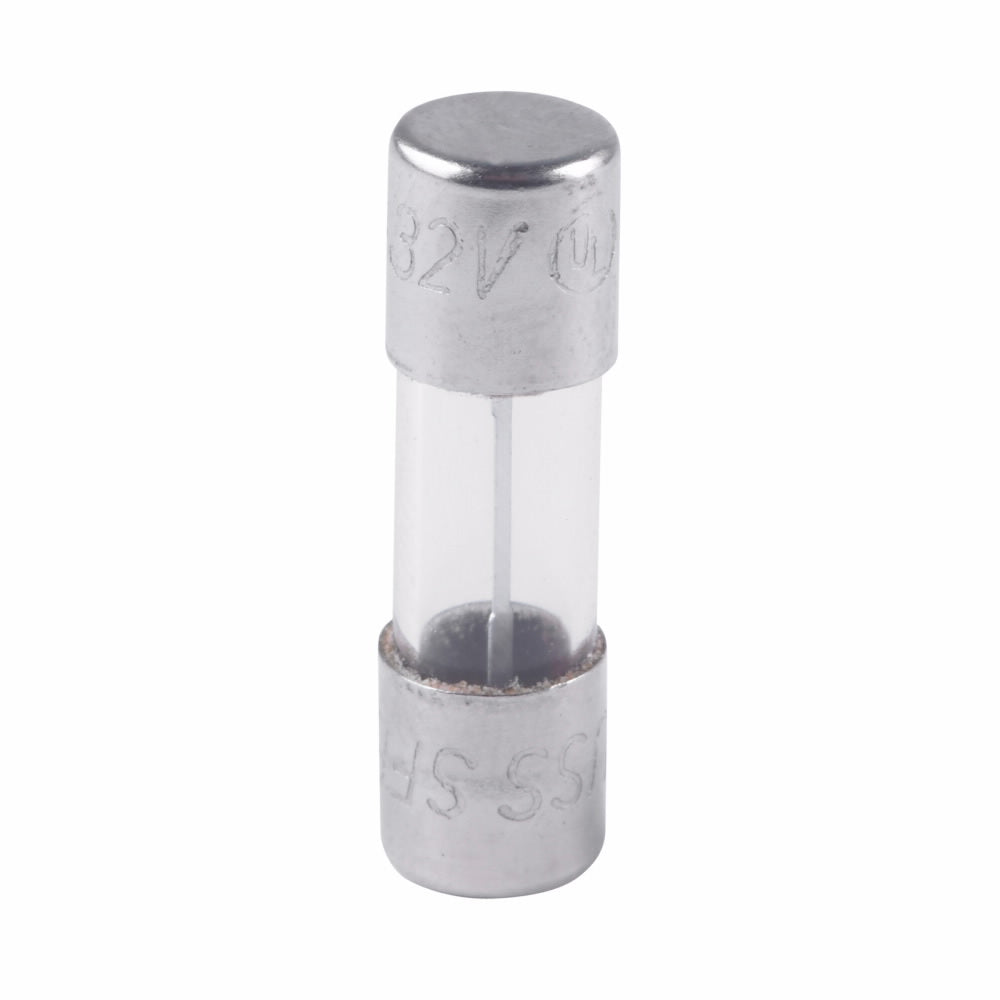

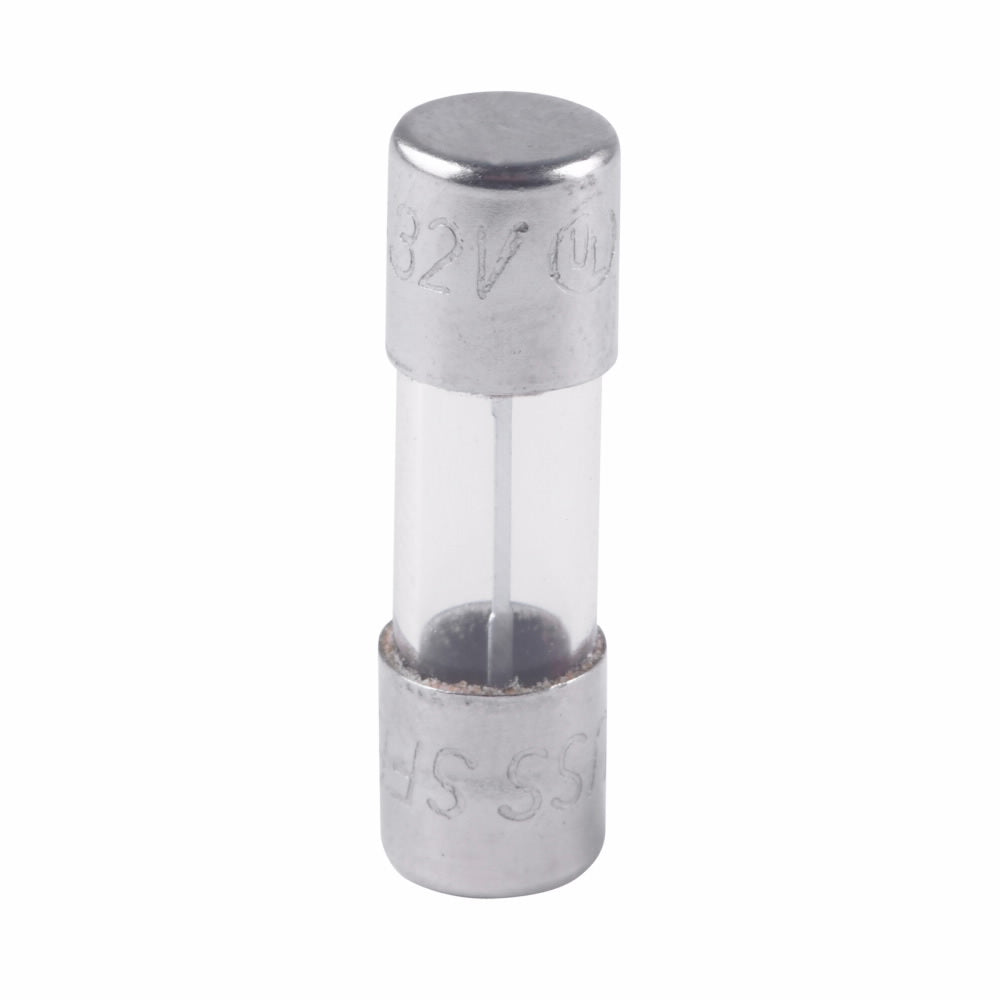

The Eaton SFE-7-1/2 is a Bussmann Fast Acting Fuse designed for automotive applications. This fuse features a rating of 7.5 amps at 32 volts AC with a 10 kA interrupt capacity. It has a cylindrical body made of clear glass, which allows for visual inspection. The fuse is suitable for use with clip or holder mounting.

• 7.5 A at 32 VAC
• Clip/Holder mounting type
• Non-indicating and non-rejection design

Product Highlights

This fuse meets SAE specifications and is ideal for older automotive circuit applications. Its physical dimensions help prevent over-fusing and enhance safety.

Product Information

Standard Information

• Manufacturer: Eaton
• UPC: 05171272982

Technical Specifications

• Amperage Rating: 7.5 A
• Application: Automotive and Electronic Circuit Applications
• Body Size: 1/4 in Dia x 7/8 in L
• Body Type: Cylindrical
• Element: Single
• Indicating: Non-Indicating
• Material: Glass
• Mounting Type: Clip/Holder
• Voltage Rating: 32 VAC
• Standards: SAE Certified | UL FHXT AU169
