Eaton SFE-14 Fast-Acting Automotive Fuse 14 A (32 V)

Product Description

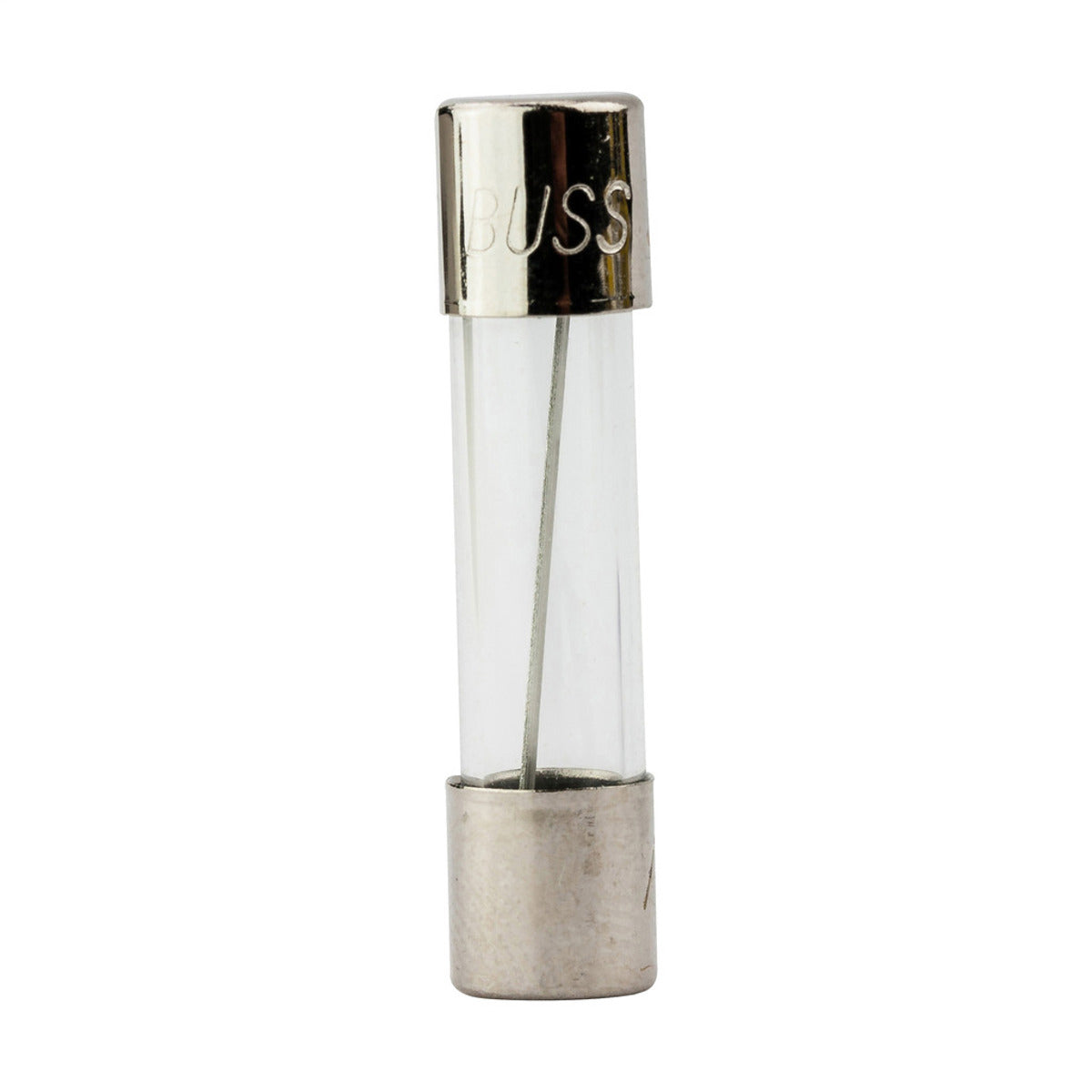

The Eaton SFE-14 is a fast-acting automotive fuse rated 14 A for circuits of 32 V or less. It uses a single-element glass cartridge with visual indicating tubing and ferrule end terminals for holder mounting. Typical dimensions are 0.250 in x 1.063 in (6.35 mm x 27.00 mm). The fuse is intended for automotive electronic circuit protection and has a 10 kA interrupting rating with UL recognition.

• Fast-acting (quick-blow) automotive fuse rated 14 A, 32 V or less.
• Glass cartridge, single element, dimensions 0.250 in x 1.063 in (6.35 mm x 27.00 mm) with visual indicating tubing.
• Ferrule end-to-end terminals for holder mounting; 10 kA interrupting capacity; UL guidance FHXT File No. AU169.

Product Highlights

14 A fast-acting automotive glass cartridge fuse, 32 V rating, 10 kA interrupting capacity, holder-mounted with ferrule terminals.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: SFE-14

Technical Specifications

• Brand: Eaton
• Manufacturer: Eaton (Bussmann)
• Manufacturer Part Number: SFE-14
• Series: SFE
• Type: Automotive fast-acting glass fuse
• Current Rating: 14 A
• Voltage Rating: 32 V or less
• Interrupt Rating: 10 kA
• Response Time: Fast-Acting (Fast Blow)
• Material: Glass
• Element: Single
• Body Diameter: 6.35 mm (0.250 in)
• Body Length: 27.00 mm (1.063 in)
• Dimensions: 1.063 in x 0.250 in (27.00 mm x 6.35 mm)
• Mounting Type: Requires holder
• Terminal Type: Ferrule end-to-end
• Approvals: UL (Guide FHXT File No. AU169)
• Application: Automotive / electronic circuits
• UPC: 51712729840
• Pack Quantity: 5
• Weight (each): 0.907 g (0.0020 lb)
• RoHS Status: RoHS non-compliant
