Product Description

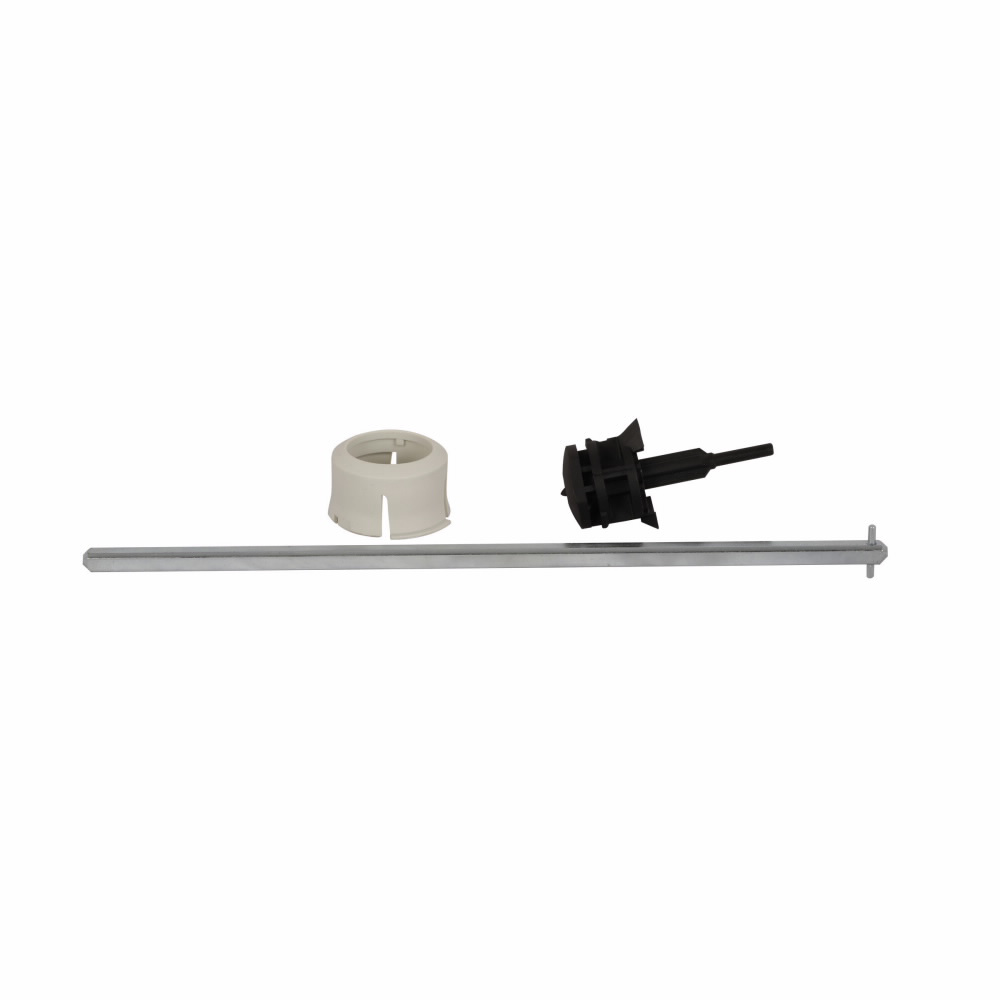

Eaton provides the SF320SH5X5 rotary disconnect shaft extension designed for external handles. This shaft is compatible with SH0 and SH00 handles and supports current ratings between 16 to 100 amps. The length of the shaft is twelve point six inches. This product is ideal for use with R5 and R9 series disconnect switches.
- Compatible with SH0 and SH00 handles
- Rated for 16 to 100 amps
- Length of twelve point six inches
Product Highlights
The Eaton SF320SH5X5 shaft extension enhances the functionality of rotary disconnect switches, making them easier to operate from a distance.
Product Information
Standard Information
-
Brand: Eaton
-
Manufacturer: Cutler-Hammer / Eaton
Technical Specifications
-
Catalog Number: SF320SH5X5
-
Size: Three hundred twenty mm (twelve point six in)
-
Width: Three inches
-
Height: Zero point nineteen inches
-
Length: Seven point nine inches
-
Weight: Zero point two pounds
-
Amperage: Sixteen to one hundred Amp
-
Used With: R5/R9 Series 16 - 80 Amp disconnect switches
-
UPC: 786685403656
