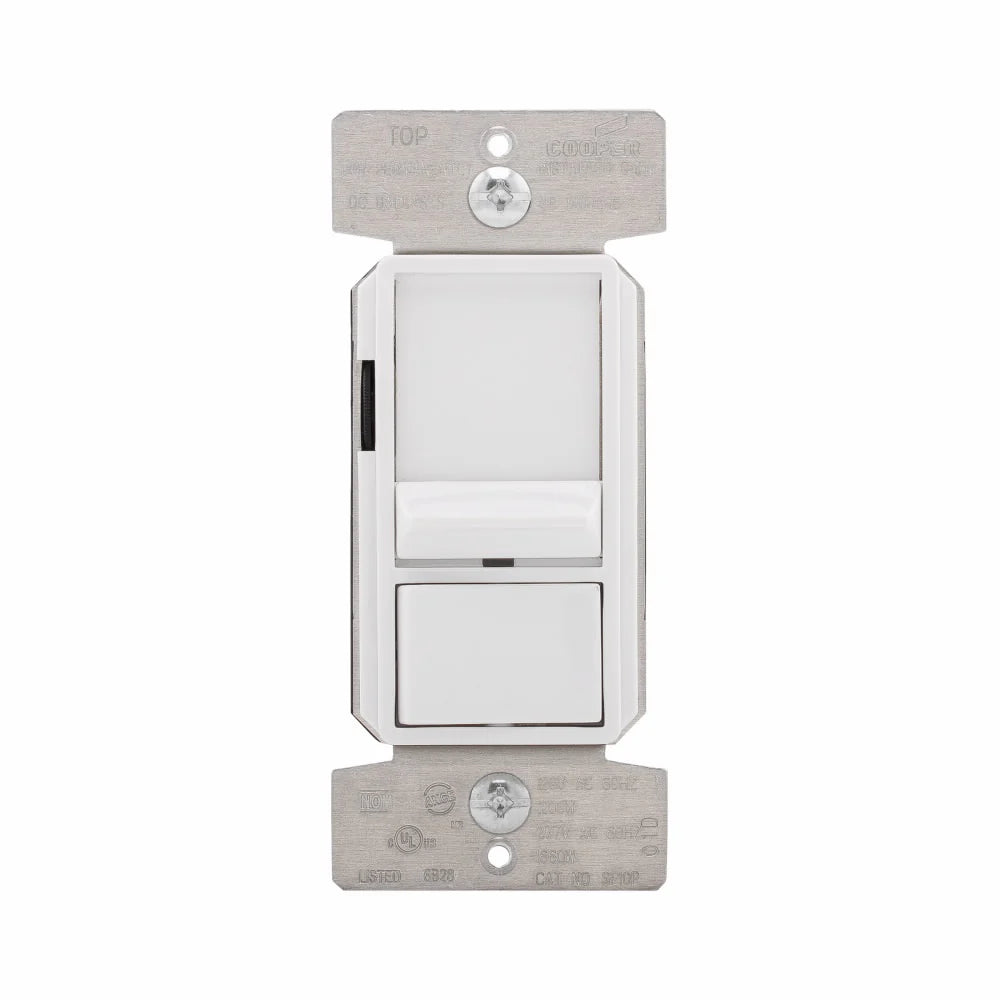

Eaton SF10P-W EWD SF10P-W Slide Dimmer-0-10V 120/277 VAC

Product Description

Eaton SF10P-W is a reliable slide dimmer for 0-10 volt applications. It operates at 120/277 volts and requires no neutral for installation. This dimmer is suitable for LED and fluorescent lamps, ideal for commercial lighting controls.

• Flush mount design with back and side wire terminal.
• Compatible with single-pole and three-way setups.
• Rated for 1200/1660 watts at 60 Hz frequency.

Product Highlights

The Eaton SF10P-W dimmer offers enhanced control over lighting, reducing energy use and extending bulb life.

Product Information

Standard Information

• Brand: Eaton
• MPN: SF10P-W

Technical Specifications

• Voltage: 120/277 Volt
• Power Rating: 1200/1660 W
• Material: Polycarbonate
• Height: 4.3 inches
• Width: 2 inches
• Length: 2 inches
• Number of Poles: 1
• Application: Wallbox Sensors and Commercial Applications
• Temperature Rating: -4 to 158 degrees F
• Control: Slide
• Standards/Approvals: cULus Listed, California Title 20 Compliant
