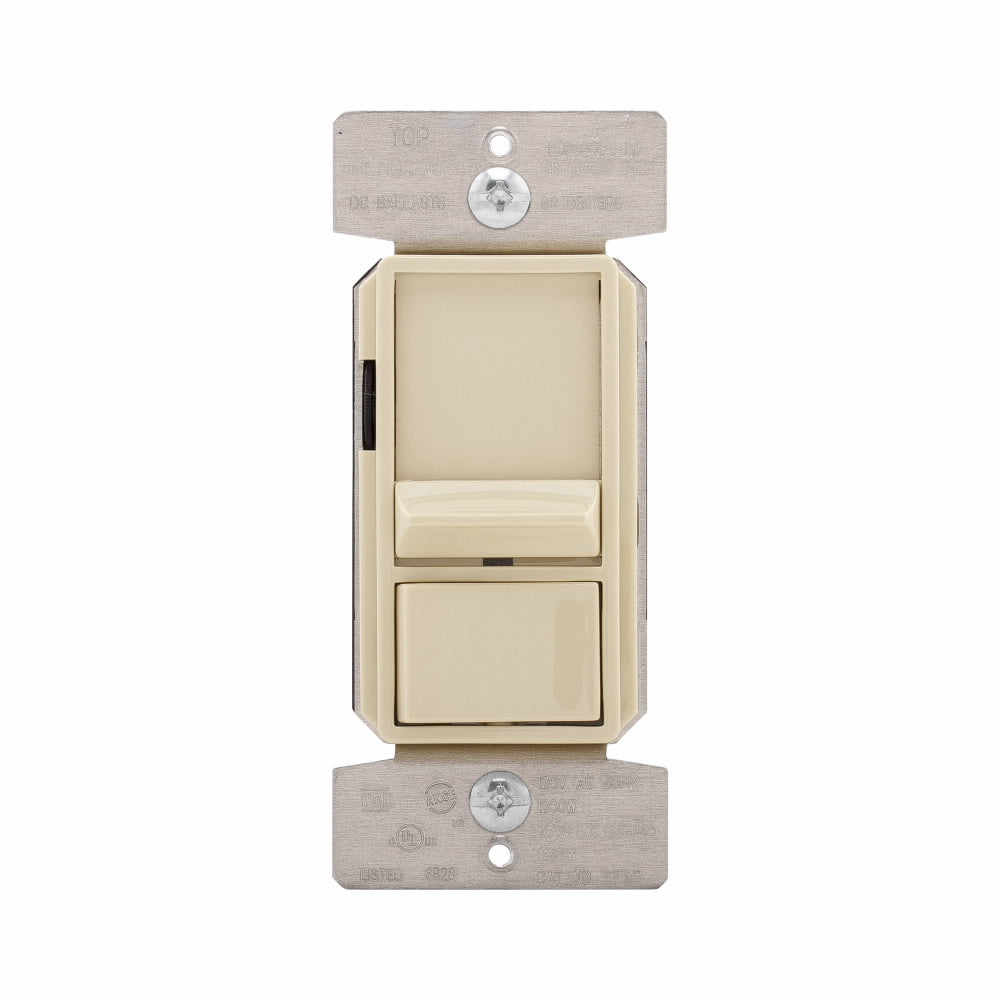

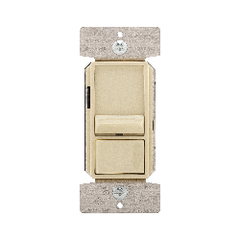

Eaton SF10P-V CWD Slide Dimmer-0-10V 120/277VAC

Product Description

The Eaton SF10P-V is a versatile slide dimmer designed for 3-way applications. It operates at a voltage of 120/277 VAC with power ratings between 1200 and 1660 watts. This dimmer is suitable for use with fluorescent and LED lamps and features a preset start for quick light settings.

• Full slide control for precise light adjustments
• Compatible with various lamp types
• Flush mounting with back and side wire options

Product Highlights

The Eaton SF10P-V dimmer helps reduce electricity use, extending the lifespan of your light bulbs and lowering energy bills.

Product Information

Standard Information

• Manufacturer: Eaton
• UPC: 03266473691

Technical Specifications

• Application: Lighting Controls, Commercial and Dimming 0 to 10 VDC Ballast Applications
• Color: Ivory
• Control: Full Slide
• Dimensions: 2 inches L x 2 inches W x 4.3 inches H
• Frequency Rating: 60 Hz
• Lamp Type: Fluorescent/LED
• Material: Polycarbonate
• Mounting Type: Flush
• Number of Poles: 1
• Power Rating: 1200/1660 W
• Start Type: Preset
• Temperature Rating: -20 to 70 deg C
• Terminal Type: Back/Side Wire/Screw
• Voltage Rating: 120/277 VAC
