Product Description

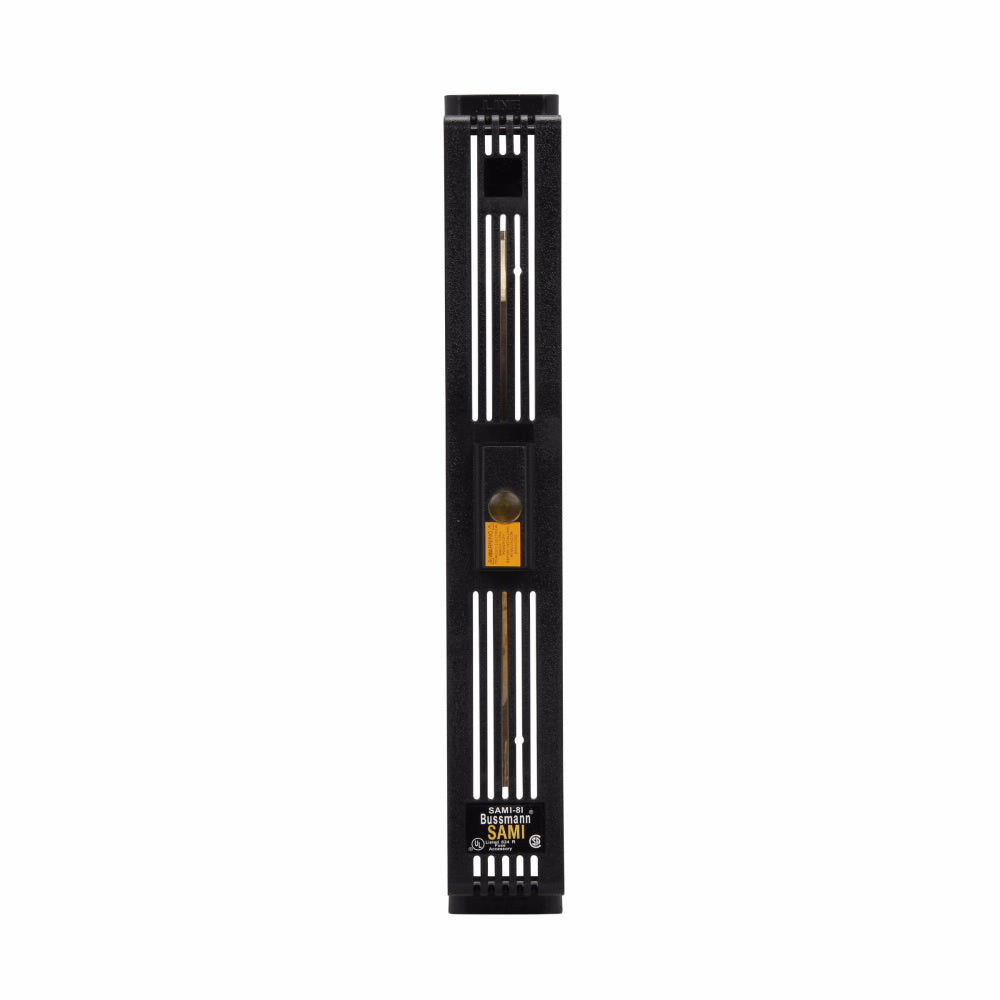

The Eaton SAMI-9I is a dead front indicating fuse cover designed for use with Class H/K5/R/T Midget Fuses. It supports amperage ratings from zero to thirty amps and operates within voltage ranges of two hundred fifty to six hundred volts alternating or direct current. It is made from thermoplastic material and is suitable for various electrical assemblies.
- Suitable for Class H/K5/R/T Midget Fuses
- Dead front design prevents accidental contact
- Reusable and easy to install
Product Highlights
The SAMI-9I provides essential protection for electrical systems, facilitating safe interactions with fuses while allowing visual identification of open circuits.
Product Information
Standard Information
-
Manufacturer: Eaton
-
UPC: 05171279692
Technical Specifications
-
Amperage Rating: 0 to 30 A
-
Application: Electrical Assemblies, Panels and OEM Applications
-
Color: Black
-
Height: 2.33 inches
-
Length: 10.38 inches
-
Material: Thermoplastic
-
Series: SAMI
-
Standards/Approvals: CE Certified, CSA File No. LR47235-93C, RoHS Compliant, UL 94-V-2 Flammability Rated, UL Listed
-
Suitable For Use With: Class H/K5/R/T Midget Fuse
-
Type: Dead Front Indicating Class R
-
Voltage Rating: 250/600 VAC/VDC
-
Width: 1.5 inches
