EATON S80-SP Plug and Receptacle Angled Male Power Plug Non-Grounding Straight Blade Universal NEMA 10-30P/10-50P

Product Description

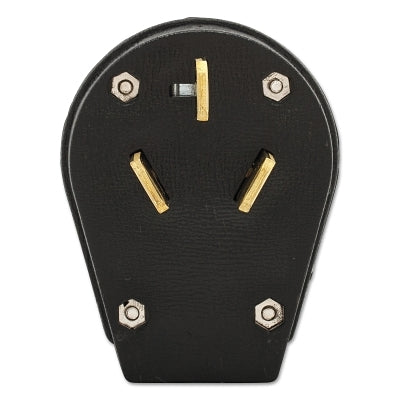

The EATON S80-SP is an angled non-grounding universal straight blade plug designed for 125/250 VAC applications. This plug accommodates both 30 amp and 50 amp configurations, making it versatile for various electrical needs. It's suitable for residential and commercial use, particularly in newer homes with four-wire range and dryer connection points.

• Commercial grade with durable thermoplastic body
• Compatible with NEMA 10-30P and 10-50P configurations
• Features pressure plates to protect wire connections

Product Highlights

This plug is built for performance and reliability in electrical applications. Its robust design ensures longevity and safety.

Product Information

Standard Information

• Brand: EATON
• MPN: S80-SP

Technical Specifications

• Amperage Rating: 30/50 A
• Voltage Rating: 125/250 VAC
• NEMA Rating: NEMA 10-30P/10-50P
• Number of Poles: 3
• Number of Wires: 3
• Material: Thermoplastic
• Temperature Rating: -20 to 75 deg C
• Cord Diameter: 0.8 in
• Dimensions: 2.92 in H x 2.8 in W
• GTIN: 00032664517853
• UPC: 032664517853
