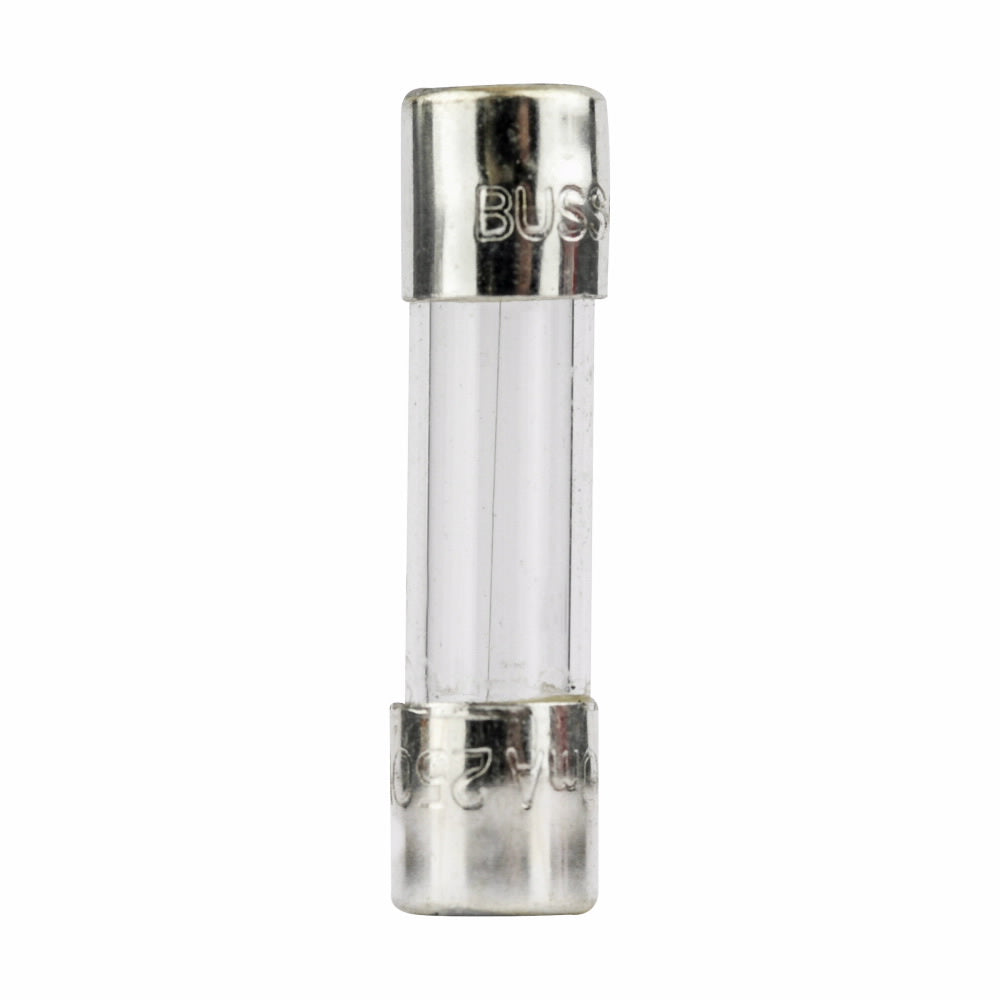

Eaton S500-2-R BUS S500 2A 5 Fast Acting Fuse

Product Description

Bussmann Fast Acting Fuse, MPN S500-2-R, is designed for electronic circuit applications. It provides quick response to overcurrents, helping to prevent damage to sensitive equipment. This fuse operates at a voltage rating of two hundred fifty volts AC and features a current rating of two amps, making it suitable for a variety of electrical applications.

• Fast acting for maximum protection
• Low breaking capacity
• Glass tube with nickel plated endcaps

Product Highlights

This fuse is a key component in protecting electrical systems, ensuring safety and reliability in various applications.

Product Information

Standard Information

• Manufacturer: Eaton
• MPN: S500-2-R

Technical Specifications

• Amperage Rating: 2 A
• Voltage Rating: 250 VAC
• Body Size: 5.2 mm Dia x 20 mm L
• Body Type: Cylindrical
• Element: Single
• Frequency Rating: 50 Hz
• Indicating: Indicating
• Material: Glass
• Mounting Type: Holder
• Terminal Type: Ferrule
• Standards/Approvals: RoHS Compliant, cURus File No. E19180, Guide JDYX2, JDYX8, and others
• Rejection Type: Non-Rejection
