Eaton S500-10-R BUSS 10 AMP 250V (5)

Product Description

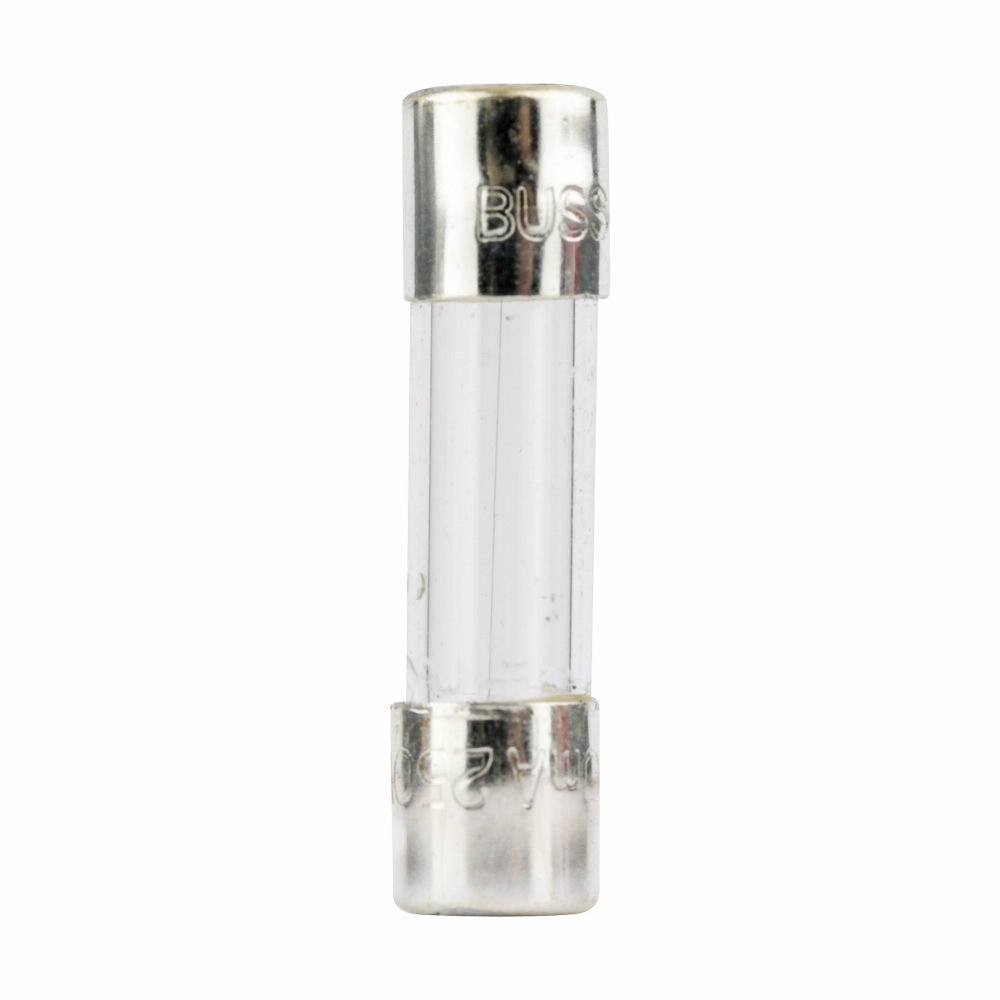

Bussmann S500-10-R is a fast acting fuse designed for electronic circuit applications. This fuse has a current rating of ten amperes and a voltage rating of two hundred fifty volts. The cylindrical body measures five point two millimeters in diameter and twenty millimeters in length. It is made of durable glass material.

• Fast acting for maximum protection
• Low breaking capacity
• Glass tube with nickel plated endcaps

Product Highlights

This fuse provides reliable protection in electronic circuits and is compliant with various industry standards.

Product Information

Standard Information

• Manufacturer: Eaton
• UPC: 05171264404

Technical Specifications

• Amperage Rating: 10 A
• Voltage Rating: 250 VAC
• Frequency Rating: 50 Hz
• Body Size: 5.2 mm Dia x 20 mm L
• Body Type: Cylindrical
• Element: Single
• Material: Glass
• Mounting Type: Holder
• Terminal Type: Ferrule
• Standards/Approvals: RoHS Compliant, cURus File No. E19180, Guide JDYX2, JDYX8, CSA File No. 1803366, SEMKO File No. 913796, VDE File No. 40014109, BSI File No. KM55676, PSE File No. JET1641-31003-1013/JET1641-31003-1014/JET1641-31003-1015/JET1641-31003-1016, IEC 60127-2
