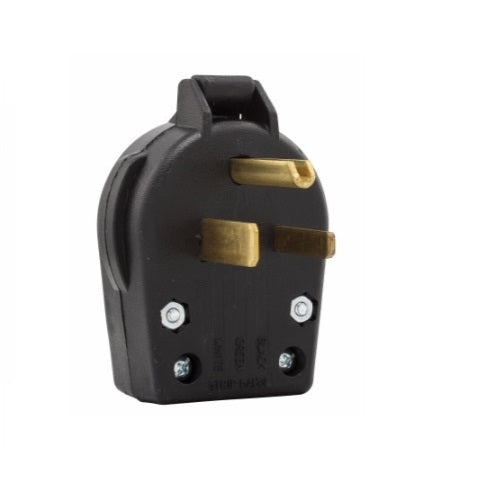

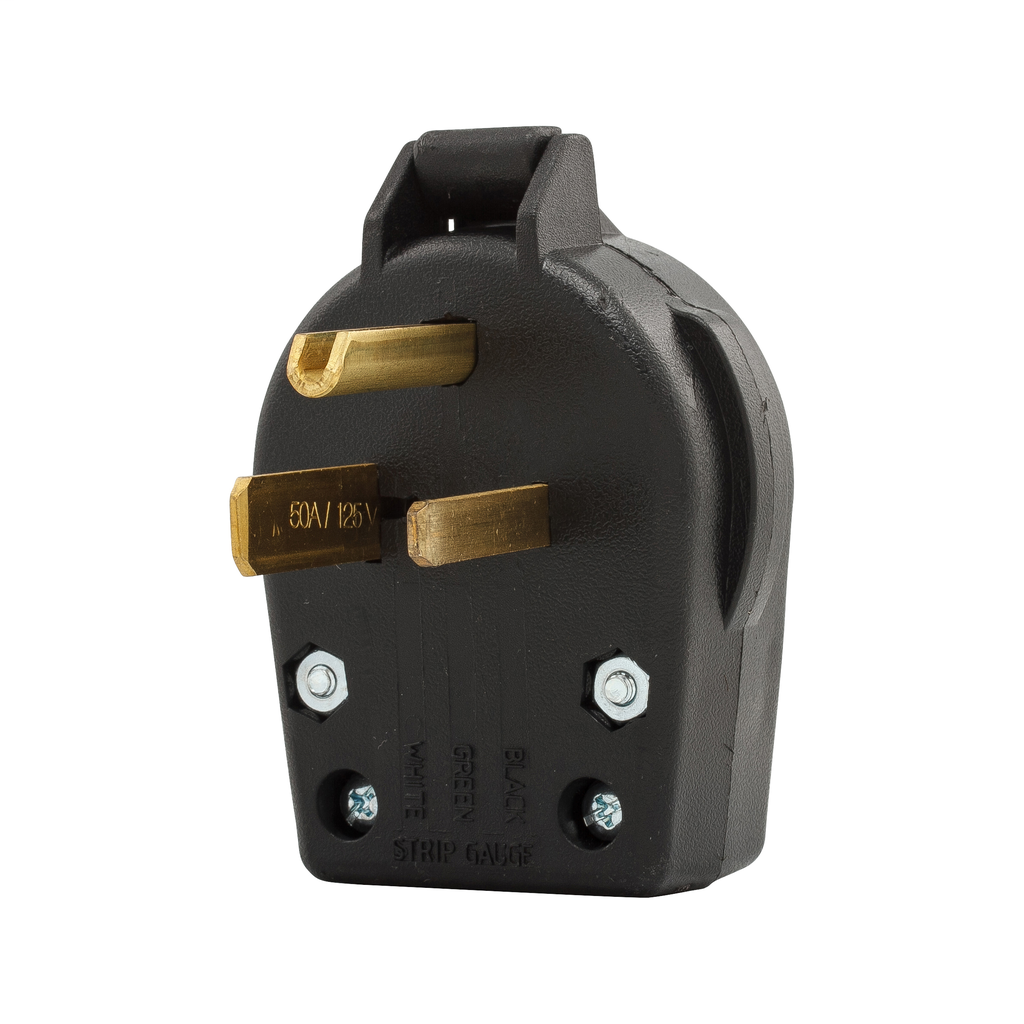

Eaton S41-SP angled universal straight blade plug 125V 30/50 A

Product Description

The Eaton S41-SP is a heavy-duty universal NEMA power plug designed for commercial range and dryer applications. It supports #10-6 AWG wire and operates at 125V with a 30/50 A rating. This plug features back wire connection and screw termination, and comes in a retail box. Ideal for high-amperage industrial or commercial power connectivity applications.

• Heavy-duty universal NEMA power plug
• Supports #10-6 AWG wire
• Suitable for commercial range and dryer applications

Product Highlights

Heavy-duty universal NEMA power plug for commercial and industrial applications, supporting 125V and 30/50A.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: S41-SP

Technical Specifications

• Catalog Number: S41-SP
• NEMA: 5-30P, 5-50P
• Type: Heavy Duty Universal, Angled Body, Commercial Specification Grade, Straight Blade
• Brand: Eaton
• Voltage: 125 Volt
• Amperage: 30 Amp
• Material: Vinyl
• Grounding: Non-Grounding
• Sub Brand: Arrow Hart, Hart Lock
• Wire Size: 10-6 AWG
• Cord Range: 1.10 in
• Applications: Commercial Range and Dryer
• Conductor Size: 10-6 AWG
• Connection Type: Plug
• Number of Poles: 2 Pole
• Number of Wires: 3 Wire
• Contact Material: Brass
• Grade: Commercial/Heavy Duty
• Temperature Rating: -20 to 75 deg C
• Voltage Rating: 125 VAC
• Amperage Rating: 30/50 A
• NEMA Rating: NEMA 5-30P/5-50P
• Standard & Approvals: RoHS Compliant
• Manufacturer: Eaton Wiring Devices
• Cord Diameter: 1.1 in
• Product Type: Power Plug
• Wiring: Back Wire
• AWG: 10-6
• Application: Range and Dryer, Commercial
• Certifications: UL Listed
• Device type: Plug
• Special features: Non-grounding Pressure plates to protect wires
• Style type: Power, Universal angled body
• Packaging type: Retail Box
• Connection type: Screw
• Allowable wire size: #10-6 AWG
• NEMA configuration: 5-30P, 5-50P
• Torque rating: 20 lbf-inch
• Design type: Straight blade
• Face/body material: PVC
• Part Number: S41-SP
• Certificate: cUL/UL Listed
• Control Style: 2-Pole
• Maximum Amperage: 50 Amp
• Maximum Voltage: 125V
• Category: Connectors, Interconnects
• AC Power Connectors: Plugs and Receptacles
• Connector Style: NEMA 5-30P, NEMA 5-50P
• Connector Type: Plug, Male Blades
• Current Rating (Amps): 30/50A
• Number of Positions: 3
• Mounting Type: Free Hanging (In-Line)
• Termination: Screw
• Features: -
• Material Flammability Rating: -
• Ingress Protection: -
• Approval Agency: UL
