EATON S20N11S05N TRANSFORMER DISTRIBUTION 240 X 480VAC

Product Description

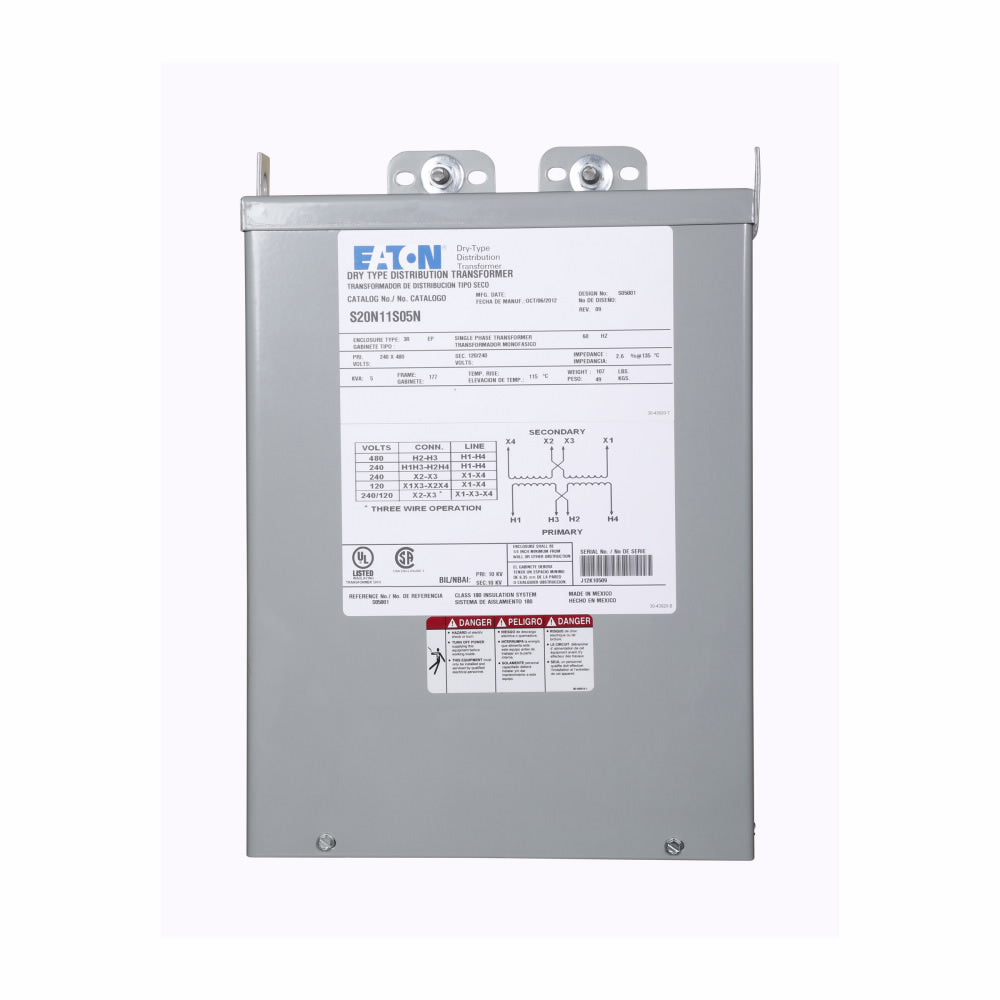

The Eaton S20N11S05N is a type EP encapsulated distribution transformer with a primary voltage of two hundred forty by four hundred eighty VAC. It features a secondary voltage of one hundred twenty by two hundred forty VAC and a power rating of five kVA. This transformer operates at fifty or sixty hertz with a single-phase connection. It is engineered for general purpose usage, ensuring reliability in various applications.

• Type EP encapsulated design for enhanced durability.
• Rated at five kVA, suitable for various power needs.
• Constructed in accordance with ANSI, NEMA, and IEEE standards.

Product Highlights

This transformer is built to provide efficient power distribution with a robust construction that withstands a variety of environmental conditions.

Product Information

Standard Information

• Catalog Number: S20N11S05N
• Manufacturer: Eaton

Technical Specifications

• Model Type: Type EP Encapsulated
• Power Rating: 5 kVA
• Primary Voltage: 240/480 VAC
• Secondary Voltage: 120/240 VAC
• Frequency Rating: 60 Hz
• Phase: 1
• Enclosure Type: NEMA 3R
• Temperature Rating: 115 degrees C
