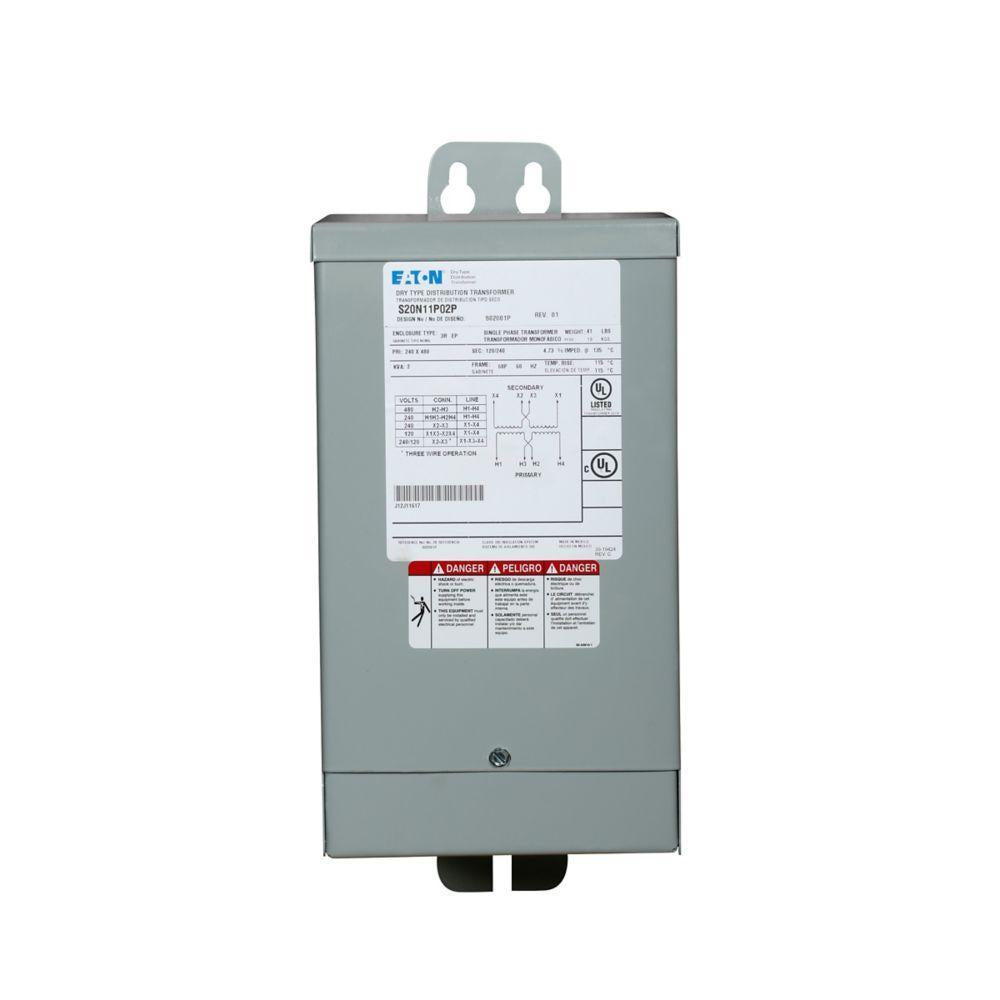

Eaton S20N11P16P Transformer Distribution 240/480VAC 60HZ

Product Description

Eaton S20N11P16P is a dry encapsulated distribution transformer designed for voltage transformation in a variety of applications. It operates with a primary voltage of two hundred forty to four hundred eighty volts AC and a secondary voltage of one hundred twenty to two hundred forty volts AC. This transformer features a power rating of one point five kVA and is suitable for both commercial and residential use.

• Encapsulated design for enhanced durability
• Indoor and outdoor installation options
• UL Listed for safety compliance

Product Highlights

This transformer is engineered for continuous operation and is compliant with ANSI, NEMA, and IEEE standards. It is ideal for powering lighting, heating systems, and industrial tools, making it versatile for various installations.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer Part No: S20N11P16P

Technical Specifications

• Type: EP Dry Encapsulated
• Primary Voltage: 240/480 VAC
• Secondary Voltage: 120/240 VAC
• Power Rating: 1.5 kVA
• Frequency Rating: 60 Hz
• Phase: 1
• Dimensions: 6.56 in L x 5.53 in W x 13.03 in H
• Weight: 31 lb
• Enclosure Type: NEMA 3R
• Insulation Temperature Rating: 130 degrees C
• Housing Material: Steel
• Connection Type: Lug
