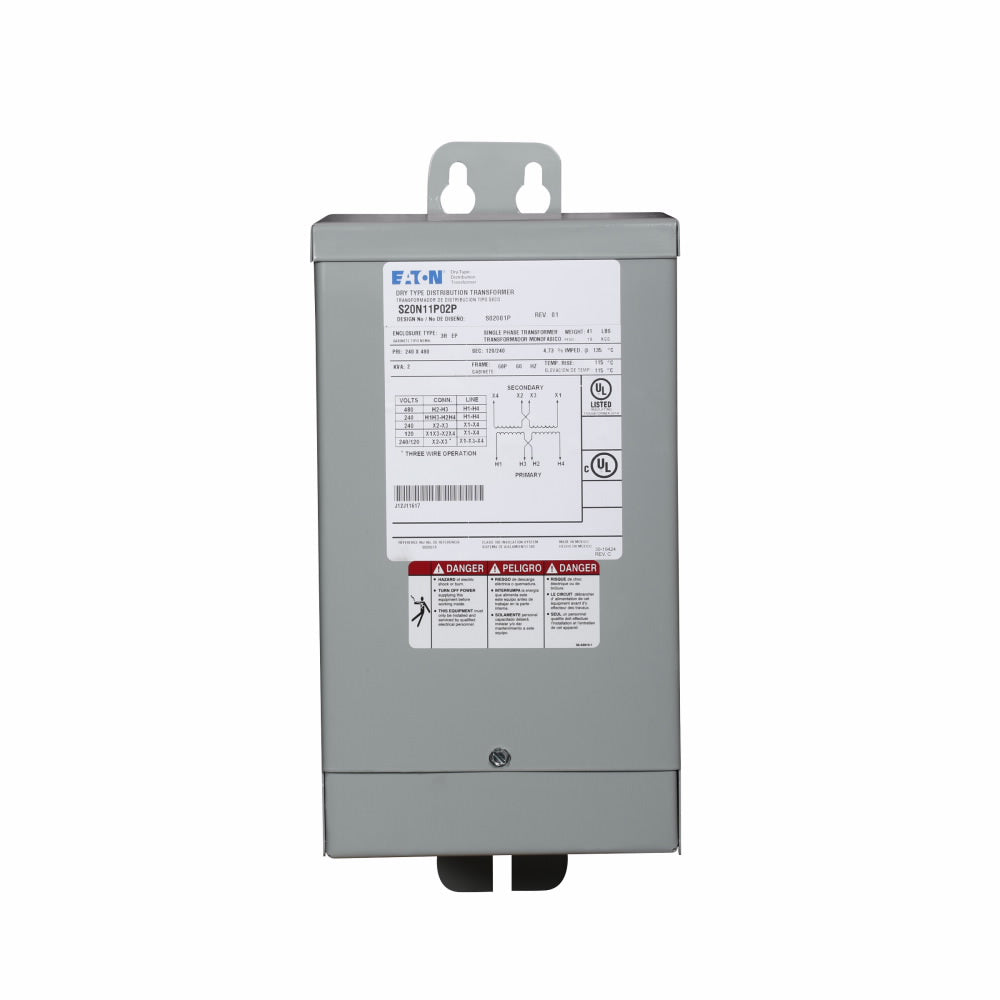

Eaton S20N11P02P Transformer Distribution 240/480VAC 2KVA

Product Description

The Eaton S20N11P02P is a transformer designed for efficient power distribution. It operates at a primary voltage of two hundred forty to four hundred eighty volts alternating current (VAC) and provides a secondary voltage of one hundred twenty to two hundred forty VAC. This transformer has a power rating of two kilovolt-amperes (kVA) and operates at a frequency of sixty hertz (Hz). Ideal for general-purpose use, it is suitable for both indoor and outdoor applications.

• Primary taps available for compensating source voltage variations.
• Constructed of high-grade, non-aging silicon steel for improved magnetic permeability.
• Designed for continuous operation in compliance with ANSI, NEMA, and IEEE standards.

Product Highlights

This transformer supports a variety of commercial and institutional applications.

Product Information

Standard Information

• Manufacturer: Eaton
• Model Number: S20N11P02P

Technical Specifications

• Type: Type EP Dry Encapsulated
• Power Rating: 2 kVA
• Input Voltage: 240/480 VAC
• Output Voltage: 120/240 VAC
• Frequency Rating: 60 Hz
• Phase: 1
• Temperature Rating: 115 degrees C rise
• Enclosure Type: NEMA 3R
• Dimensions: 6.32 in L x 6 in W x 13.78 in H
• Housing Material: Steel
