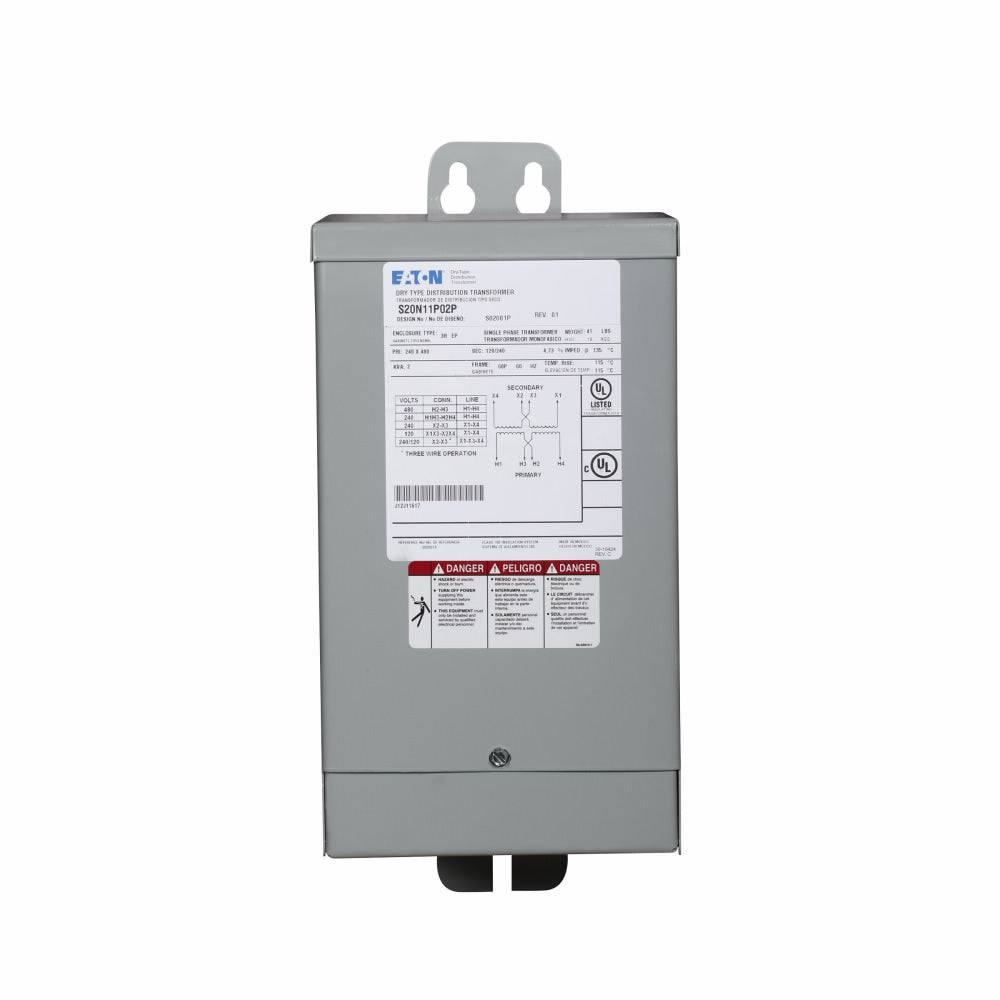

EATON S20N11P01P Transformer Distribution 1kVA 240x480VAC 120/240VAC Single-Phase Type EP

Product Description

The EATON S20N11P01P is a general purpose encapsulated distribution transformer ideal for a wide range of applications including commercial, institutional, industrial, and residential. Boasting a robust design, this single-phase transformer efficiently transforms voltage near loads to optimize power distribution.

• Efficient voltage transformation for diverse environments
• Encapsulated design ensures durability and reliability
• Wall-mounted, non-ventilated enclosure for various installations

Product Highlights

Designed for continuous operation, the transformer's specifications comply with ANSI, NEMA, and IEEE standards. It features a NEMA 3R enclosure which is suitable for both indoor and outdoor applications. Eaton's EP technology encapsulates the system to protect against environmental factors.

Product Information

Standard Information

• Brand: EATON
• Mounting Type: Wall

Technical Specifications

• Primary Voltage: 240/480 VAC
• Secondary Voltage: 120/240 VAC
• Power Rating: 1 kVA
• Frequency: 60 Hz
• Phase: Single
• Enclosure Type: NEMA 3R
• Temperature Rating: 115 degrees C
• Insulation: 180 degrees C
