Eaton S-8202-1-R Buss Fuseblock 300 VAC/VDC 16/20 A 1 Pole

Product Description

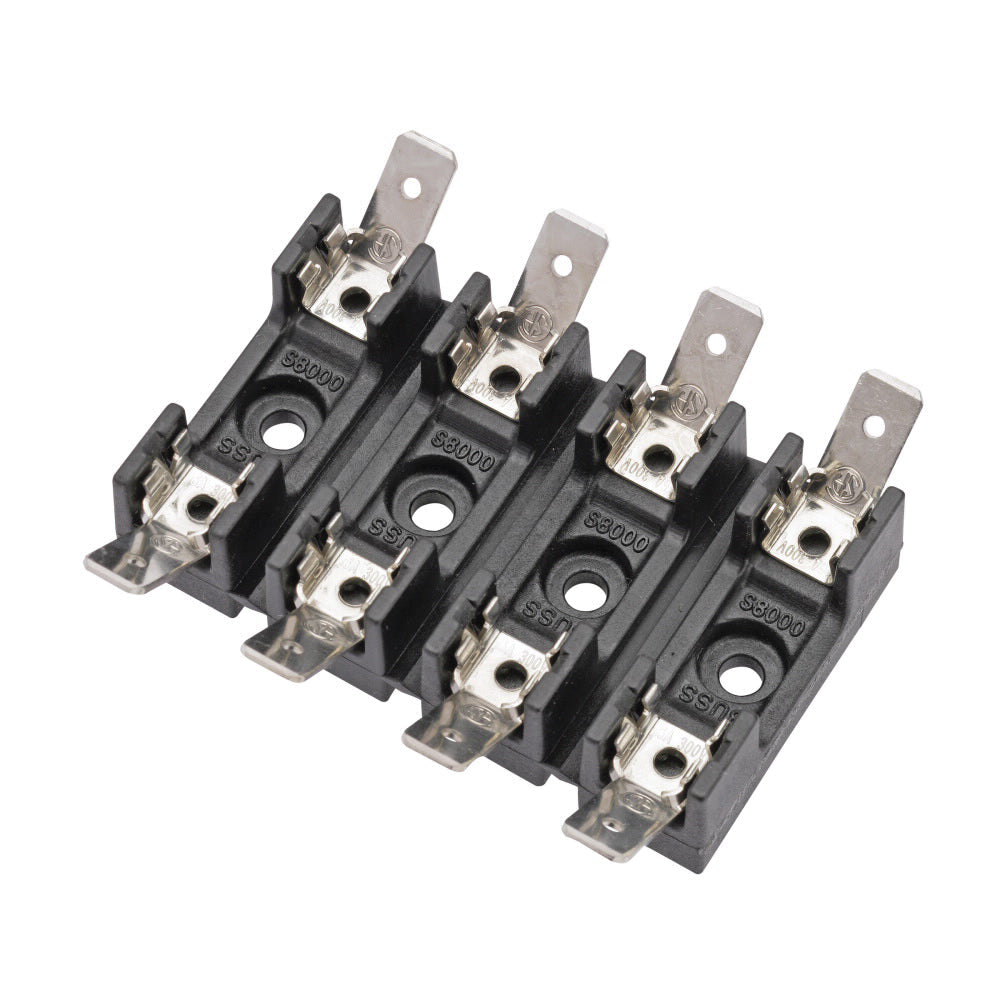

The Bussmann Fuse Block, manufactured by Eaton with the MPN S-8202-1-R, serves as a reliable component for managing electrical circuits. This fuse block is designed for use in applications requiring voltage ratings of up to three hundred volts AC or DC and a current rating of either sixteen or twenty amperes. The breakaway design allows for efficient installation and maintenance.

• Breakaway design for easy fuse replacement.
• Quick-connect terminals for simplified installation.
• RoHS compliant with various certifications ensuring safety.

Product Highlights

This Bussmann Fuse Block is suitable for various electrical applications where reliability and safety are critical.

Product Information

Standard Information

• Manufacturer:Eaton
• MPN:S-8202-1-R

Technical Specifications

• Amperage Rating:16/20 A
• Color:Black
• Connection Type:Quick-Connect
• Dimensions:2 in L x 0.5 in W x 0.56 in H
• Fuse Diameter:1/4 in
• Fuse Length:1-1/4 in
• Material:Thermoplastic
• Mounting Type:Bolted-In
• Number of Poles:1
• Series:8200
• Temperature Rating:130 deg C
• Voltage Rating:300 VAC/VDC
• Standards/Approvals:RoHS Compliant, UL File No. E14853 Guide No. IZLT2, CE Certified, CSA 6225-01 File No. 47235
