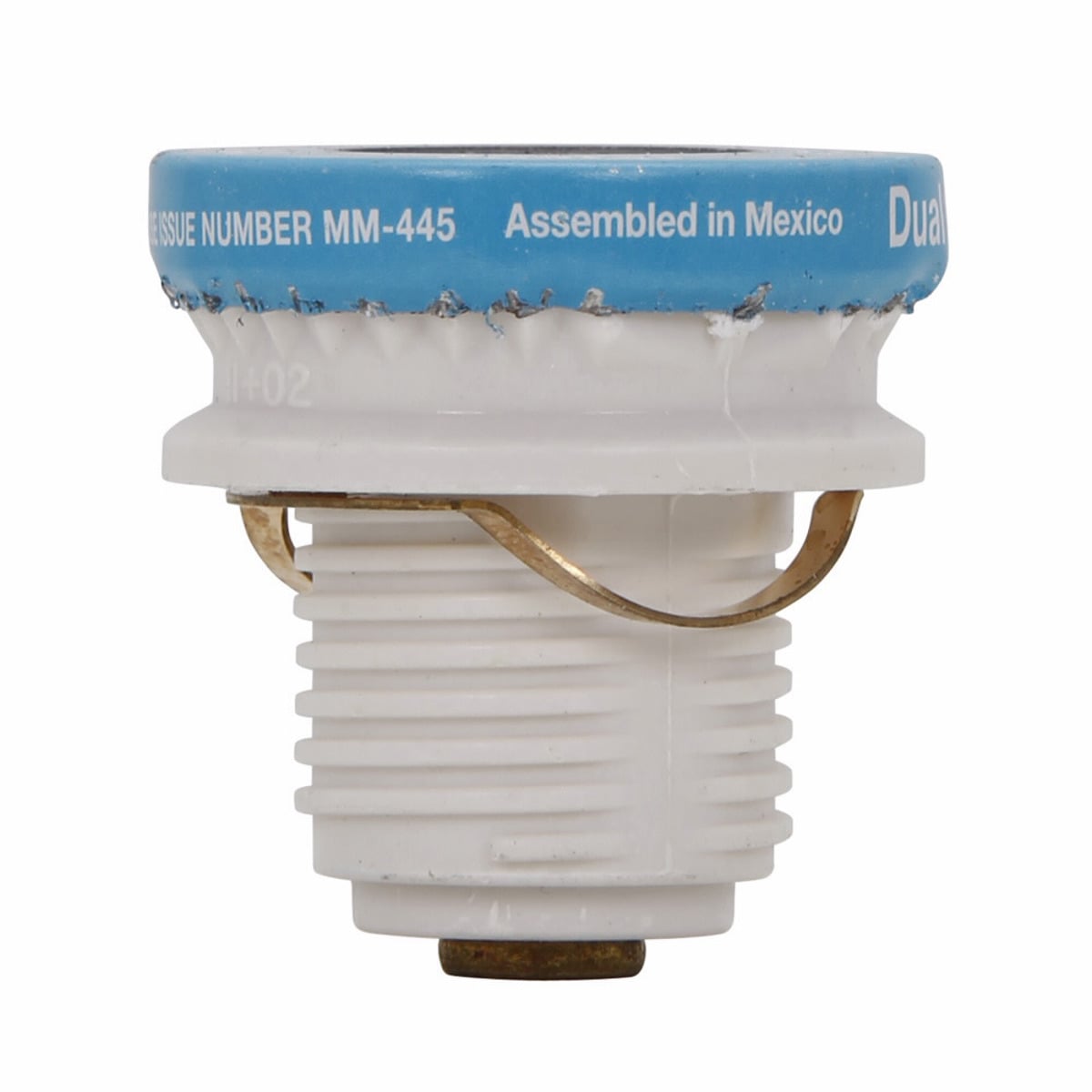

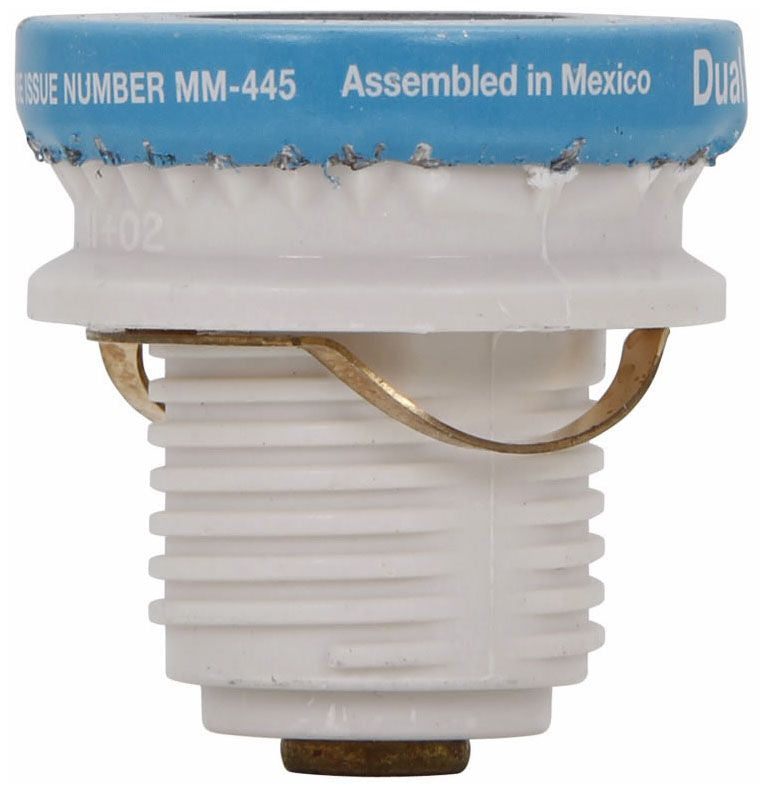

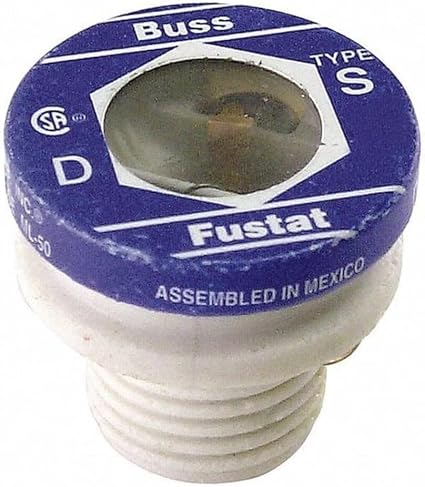

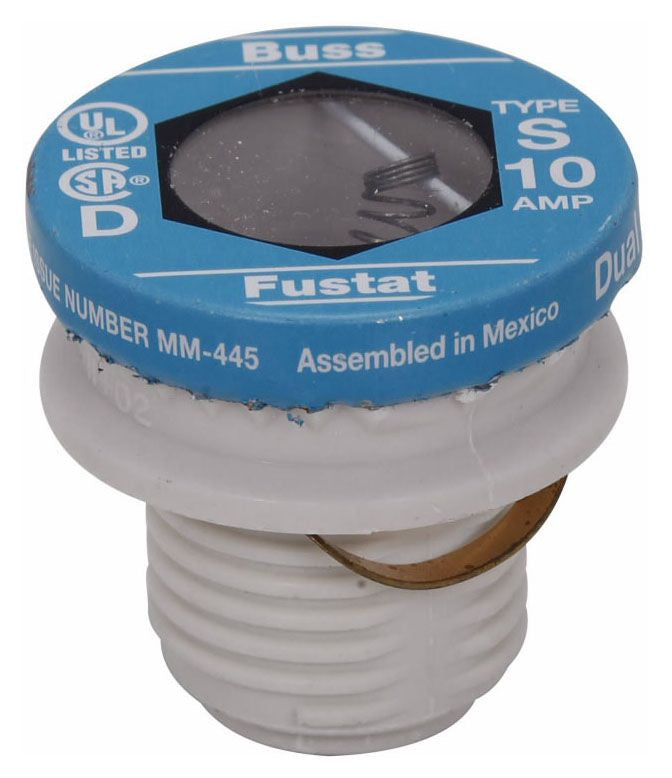

Eaton S-10 Type S plug fuse 10 A (Threaded rejection base)

Product Description

The Eaton S-10 is a Bussmann series Type S plug fuse rated 10 A at 125 VAC. It is a time-delay, heavy-duty, dual-element plug fuse with a plastic rejection base and threaded mount, providing a 10 kAIC (RMS symmetrical) interrupt rating. The fuse tolerates temporary overloads and motor startup inrush while protecting branch circuits and residential load centers with spring-loaded, dual-element construction.

• 10 A current rating at 125 VAC with 10 kAIC (RMS symmetrical) interrupt rating
• Dual-element time-delay design for tolerance of motor startup inrush and temporary overloads
• Threaded rejection base (threaded stud terminal) with plastic base; heavy-duty construction

Product Highlights

10 A, 125 VAC time-delay Type S plug fuse with 10 kAIC interrupt rating and threaded rejection base

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: S-10
• Country of Origin: Mexico

Technical Specifications

• Brand: EATON
• Manufacturer Part Number: S-10
• Series: S Series (Type S)
• Type: Plug fuse
• Current Rating: 10 A
• Voltage Rating: 125 VAC
• Interrupt Rating: 10 kAIC (RMS symmetrical)
• Element Type: Dual element (time delay)
• Time Delay: Yes
• Mounting Type: Threaded (rejection base)
• Base Material: Plastic
• Terminal Type: Threaded stud
• Body Type: Round
• Application: Residential load centers; motor and branch-circuit protection
• Standards/Approvals: UL 248-11; cUL; CSA; CE
• Packaging: Blister pack
• Product Length/Depth: 1.16 in
• Product Width: 0.72 in
• Product Height: 1.88 in
