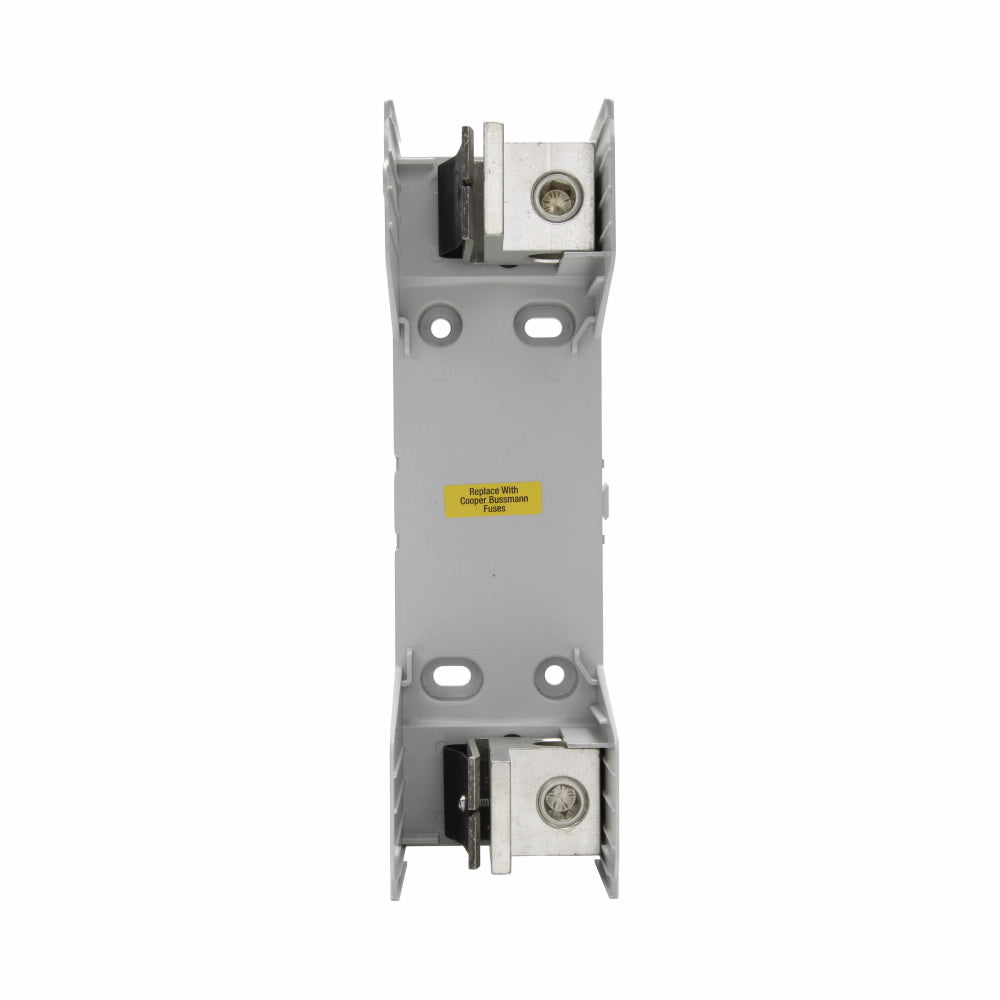

Eaton RM60400-1CR Bussmann Fuse Holder 600 V 225 to 400 A

Product Description

The Eaton RM60400-1CR Bussmann Fuse Holder is a modular fuse block designed for electrical applications. This holder supports a voltage rating of six hundred volts and an amperage range of two hundred twenty-five to four hundred amps. Its single pole configuration is suitable for knife blade cartridge fuses. The construction is thermoplastic, allowing for durability in various conditions.

• Supports knife blade end connections
• Temperature range from -40 to 120 degrees Celsius
• Compatible with AWG aluminum wire sizes from four to three-aught

Product Highlights

This fuse holder features integrated dovetails for assembling multiple poles at the point of use.

Product Information

Standard Information

• Manufacturer: Eaton
• UPC: 05171238700

Technical Specifications

• Amperage Rating: 225 to 400 A
• Application: Electrical Assemblies, Panels and OEM Applications
• Class: R
• Connection Type: Knife Blade End
• Dimensions: 8.7 inches L x 3.5 inches W x 4.9 inches H
• Manufacturer Part Number: RM60400-1CR
• Material: Thermoplastic
• Mounting Type: Hole
• Number of Poles: 1
• Series: RM Series
• Standards/Approvals: CSA Certified, cULus File No.E14853, RoHS Compliant, UL 94-V-0 Flammability Rating
• Suitable For Use With: Knife Blade Cartridge Fuse
• Temperature Rating: -40 to 120 degrees Celsius
• Type: Modular
• Voltage Rating: 600 V
