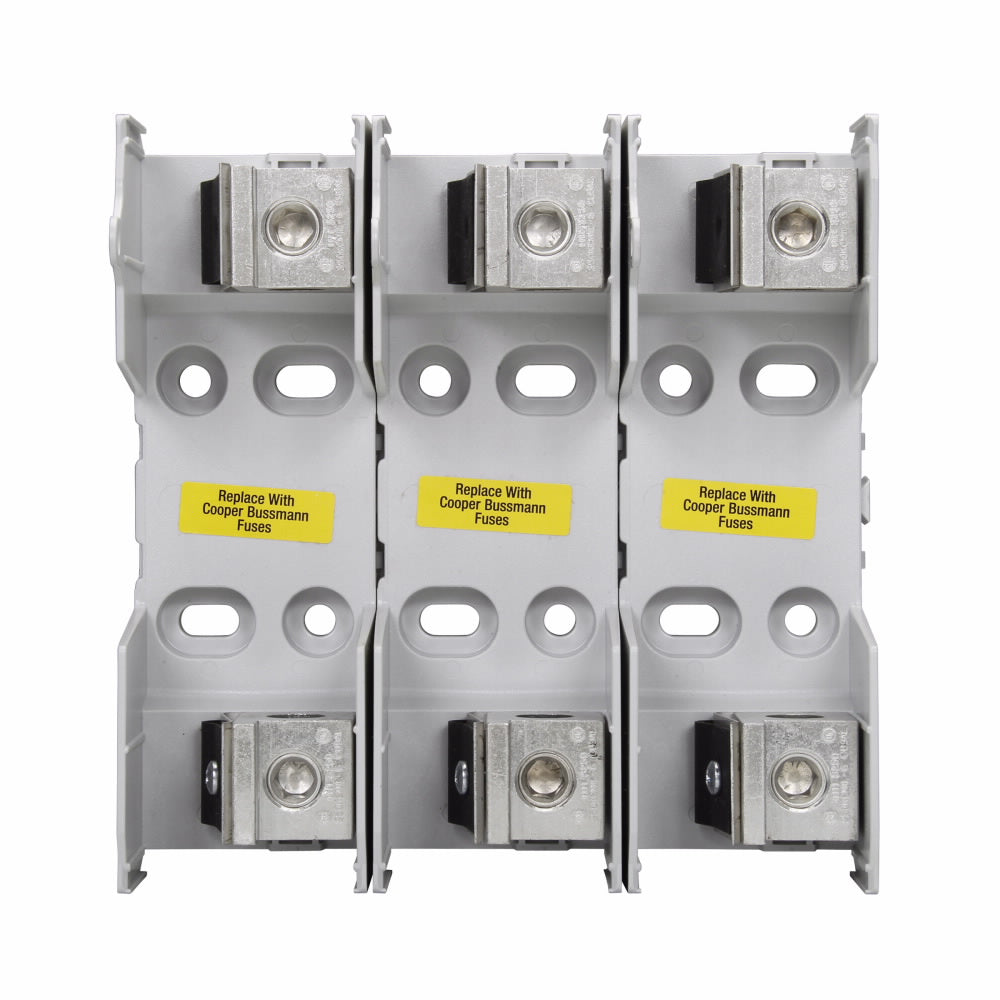

Eaton RM25200-3CR Bussmann 200 Amp Class R Fuse Holder 250V - 3 Pol

Product Description

The Eaton RM25200-3CR Bussmann is a 200 Amp Class R Fuse Holder designed for voltages up to 250 V. This modular fuse block supports knife blade cartridge fuses and is built to accommodate a range of wire sizes.

• Supports 1 AWG to 250 kcmil and 2 to 6 AWG wire sizes
• Temperature rating from -40 to 120 degrees Celsius
• Meets UL creep and clearance requirements

Product Highlights

This fuse holder features integral dovetails for easy assembly and the capability of up to four mounting holes per pole to enhance installation options.

Product Information

Standard Information

• Manufacturer: Eaton
• Series: RM Series

Technical Specifications

• Amperage Rating: 110 to 200 A
• Connection Type: Knife Blade End
• Dimensions: 7.3 inches L x 7.9 inches W x 3.8 inches H
• Material: Thermoplastic
• Mounting Type: Hole
• Number of Poles: 3
• Voltage Rating: 250 V
• Suitable For Use With: Knife Blade Cartridge Fuse
• Temperature Rating: -40 to 120 degrees Celsius
• Standards/Approvals: CSA Certified, cULus File No.E14853, RoHS Compliant, UL 94-V-0 Flammability Rating
