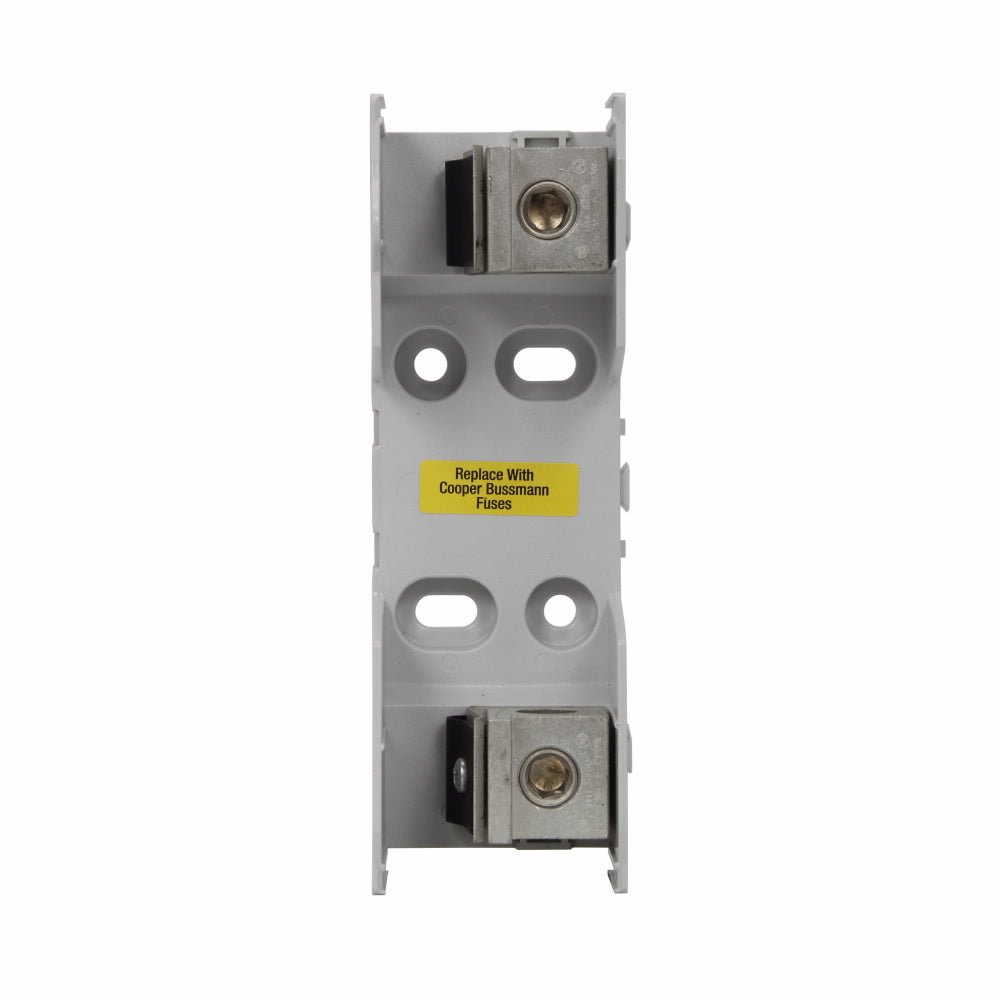

Eaton RM25200-1CR Buss Buss Holder (1)

Product Description

The Eaton RM25200-1CR is a modular fuse block designed for use in electrical assemblies. It operates at 250 volts and has an amperage rating of 110 to 200 amps. This one-pole fuse block is suitable for Class R knife blade cartridge fuses. It accommodates various wire sizes from one AWG to two hundred fifty kcmil and two to six AWG with solid or stranded copper wiring.

• Voltage rating: 250 V
• Temperature range: -40 to 120 degrees Celsius
• Thermoplastic material enhances durability

Product Highlights

Stable and reliable performance for industrial applications.

Product Information

Standard Information

• Brand: Eaton
• MPN: RM25200-1CR

Technical Specifications

• Amperage Rating: 110 to 200 A
• Application: Electrical Assemblies, Panels and EOEMs Applications
• Class: R
• Connection Type: Knife Blade End
• Dimensions: 7.3 inches L x 2.6 inches W x 3.8 inches H
• Material: Thermoplastic
• Mounting Type: Hole
• Number of Poles: 1
• Series: RM Series
• Standards/Approvals: CSA Certified, cULus File No.E14853, RoHS Compliant, UL 94-V-0 Flammability Rating
• Suitable For Use With: Knife Blade Cartridge Fuse
• Temperature Rating: -40 to 120 degrees Celsius
• Type: Modular
• Voltage Rating: 250 V
