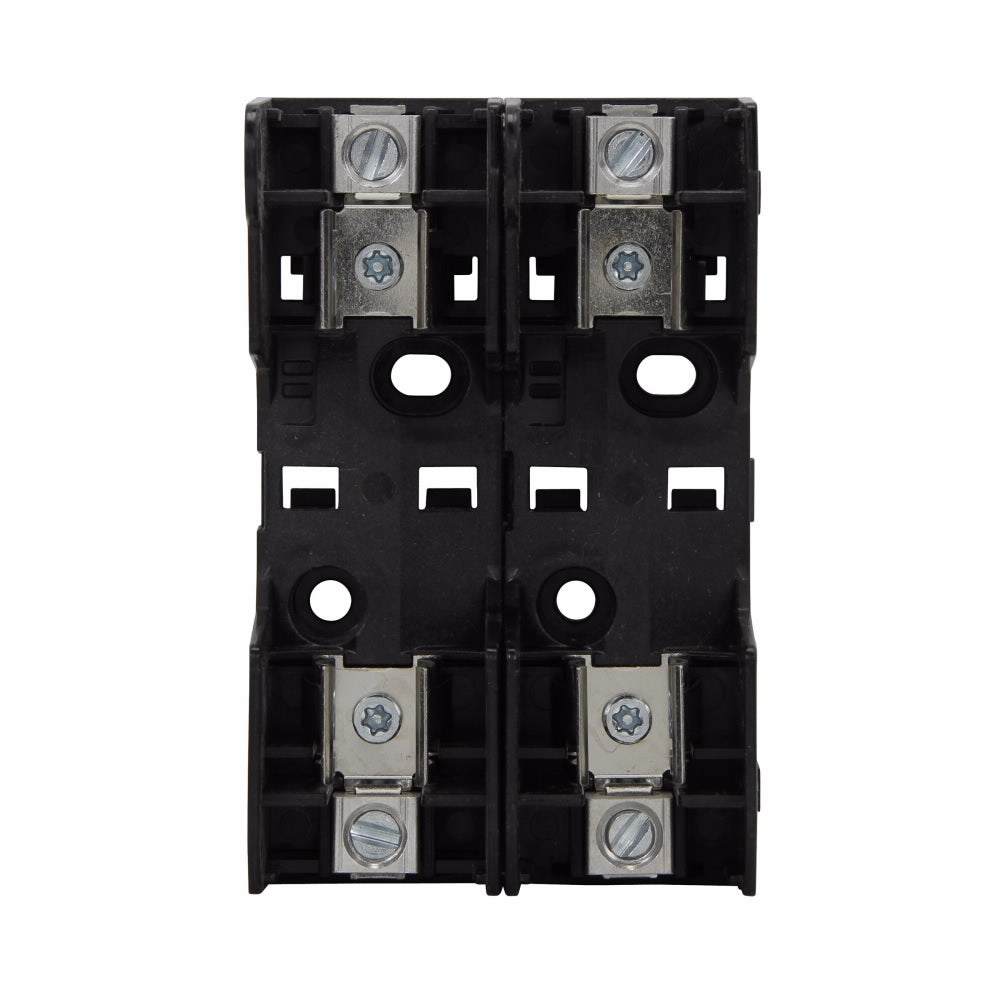

Eaton RM25060-2CR Busmann Fuse Block, Class R, 250V 60A, 2 Pole (6)

Product Description

The Eaton RM25060-2CR is a modular Bussmann fuse block designed for electrical systems. This product operates at a voltage of 250V and supports amperage ratings ranging from 35A to 60A. It features two poles and is classified under Class R, ensuring compatibility with various fuse types.

• Modular design allows for tool-less assembly of multiple poles.
• DIN rail and panel mount capability enhance versatility.
• Constructed from thermoplastic material for durability.

Product Highlights

This fuse block simplifies installation and reduces inventory costs. It is ideal for low-peak time delay, fast acting, and time delay ferrule fuses.

Product Information

Standard Information

• Manufacturer: Eaton
• Manufacturer Part Number: RM25060-2CR

Technical Specifications

• Amperage Rating: 35 to 60 A
• Voltage Rating: 250 V
• Class: R
• Dimensions: 4.2 in L x 2.7 in W x 2.3 in H
• Fuse Diameter: 0.81 in
• Fuse Length: 3 in
• Material: Thermoplastic
• Temperature Rating: -40 to 120 deg C
• Connection Type: Box Lug/Slot Screw
• Mounting Type: DIN Rail/Panel
• Number of Poles: 2
